sandbox/Antoonvh/kochoctree.c

    The 1.26D Koch snowflake in 3D space.

    Very similar to what we did using a 2D quadtree here, we can try to do the same analysis employing a 3D -so-called- octree.

    #include "grid/octree.h"
    #include "navier-stokes/centered.h"

    int main(){
      int jmax=8;
      int n=4;
      int nm=((n-1)*pow(4,jmax-1))+1;
      double xn[nm],yn[nm];
      double xk[nm];
      double yk[nm];
      xk[0]=0;
      xk[1]=1;
      xk[2]=0.5;
      xk[3]=0;
      yk[0]=0;
      yk[1]=0;
      yk[2]=-sqrt(3.)/2;
      yk[3]=0;
      fprintf(ferr,"\nyk[n-1]=%g\n\n",yk[n-1]);
      for (int j=1;j<jmax;j++){
        for (int k=0;k<(n-1);k++){
          xn[(k*4)]=xk[(k)];
          xn[(k*4)+1]=(2*xk[k]+xk[k+1])/3;
          xn[(k*4)+2]=((xk[k]+xk[k+1])/2)+((yk[k]-yk[k+1])*sqrt(3.)/6);
          xn[(k*4)+3]=(xk[k]+2*xk[k+1])/3;
          yn[(k*4)]=yk[k];
          yn[(k*4)+1]=(2*yk[k]+yk[k+1])/3;
          yn[(k*4)+2]=((yk[k]+yk[k+1])/2)-((xk[k]-xk[k+1])*sqrt(3.)/6);
          yn[(k*4)+3]=(yk[k]+2*yk[k+1])/3;
        }
        yn[4*(n-1)]=yk[n-1];
        xn[4*(n-1)]=xk[n-1];
        FILE * fpkoch = fopen("koch.dat","w");
        for (int l=0;l<(4*(n-1)+1);l++){
          yk[l]=yn[l];
          xk[l]=xn[l];
        }
        if (j==jmax-1){
          for (int l=0;l<(4*(n-1)+1);l++){
    	fprintf(fpkoch,"%g %g\n",xk[l],yk[l]);
          }
        }
        n=(n-1)*4+1;
      }

      FILE * fpit = fopen("cells.dat","w");
      X0=-0.5;
      Y0=-1.2;
      Z0=-1.0432;
      L0=2.0;
      init_grid(32);

      scalar c[];
      for (int m=0;m<6;m++){
        foreach()
          c[]=0;
        for(int i=0;i<n;i+=64/pow(2,m)){

    We place the koch snowflake on a x-y plane at z = 0.034124

          Point point = locate(xn[i],yn[i],0.0343124);
          c[]+=1.0;
        }
        int gcc=0;
        int gcn=0;
        foreach(reduction(+:gcc) reduction(+:gcn)){
          gcn++;
          if(c[]>0.5)
    	gcc++;
        }
        boundary({c});
        while(adapt_wavelet({c},(double[]){0.1},(7+m),4,{c}).nf);
        fprintf(fpit,"%d %d %d\n",m,gcc,gcn);
        fflush(fpit);
        int i=m;
        scalar lev[];
        foreach(){
          lev[]=level;
        }

        static FILE * fp3 =
          popen ("gfsview-batch3D kochoctree.hop.gfv | ppm2gif > frac3d.gif --delay 100","w");
        output_gfs(fp3);
        fprintf (fp3, "Save stdout { format = PPM width = 600 height = 600}\n");
      }
    }

    Results

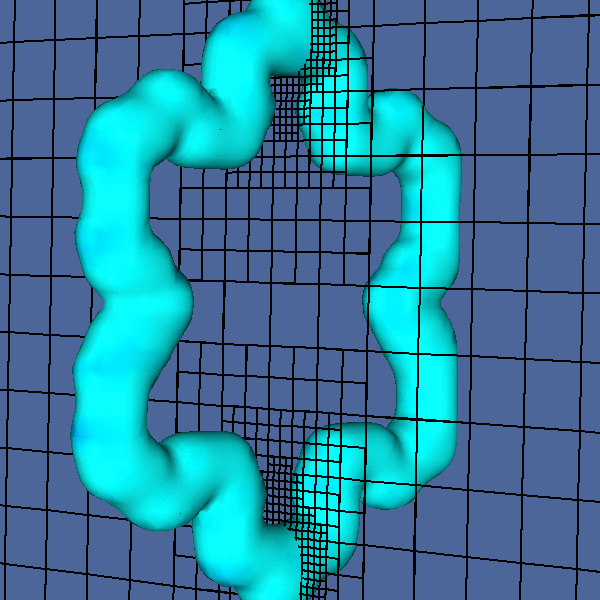

    Below we see a visualization of the iterative refinement on the fractal curve in 3D space

    Visualization of the refinement iterations with the c=1 isosorfuce, colored with the level of refinement. The results form the last two iterations are not displayed as they require a sub-pixel resolution

    Visualization of the refinement iterations with the c=1 isosorfuce, colored with the level of refinement. The results form the last two iterations are not displayed as they require a sub-pixel resolution

    Now let us check if we can find the fractal dimension of this curve by plotting the number of grid cells against the refinement iteration.

    set xr [ -0.5:5.5]
    set yr [100:100000]
    set logscale y
    set xlabel 'refinement iteration'
    set ylabel 'Grid cells on the curve'
    plot "cells.dat" title "Number of cells on the curve" ,\
          (2**(1.26*x))*200 title "2^{1.26x}"
    (script)

    (script)

    Apparently the fractal dimension is still 1.26.

    Finally, we check if the total employed number of gridcells scales with the fractal dimension of this “\text{problem}”.

    set xr [ -0.5:5.5]
    set yr [10000:3000000]
    set logscale y
    set xlabel 'refinement iteration'
    set ylabel 'Total number of grid cells'
    plot "cells.dat" using 1:3 title "Total number of cells" ,\
          (2**(1.26*x))*5000 title "2^{1.26x}"
    (script)

    (script)

    After some initial hick-up, it does appear to be the case. Very beneficial compared to 3D scaling. Again, Well done adapt_wavelet() function!

    But can we do it without the adapt_wavelet function as well?
