    The Fractal Dimension of the Koch Snowflake

    This page presents an investigation on the Koch snowflake. You may want to watch this youtube video for a detailed, 20 minute introduction to the topic of fractal curves. Since we have the tools, let us use an adaptive quad-tree grid and the ppm2gif converter.

    #include "grid/quadtree.h"
    #include "utils.h"

    int main(){

    The Koch Curve

    First, we need to obtain the snowflake curve. We determine it upto 8 fractal levels of refinement, resulting in 3 \cdot 4^{8} \approx 200.000 points on the curve. This determines the maximum level of refinement that we can use in our grid based analysis.

      int jmax=9;
      int n=4;
      int nm=((n-1)*pow(4,jmax-1))+1;
      double xn[nm],yn[nm];
      double xk[nm];
      double yk[nm];
      xk[0]=0;
      xk[1]=1;
      xk[2]=0.5;
      xk[3]=0;
      yk[0]=0;
      yk[1]=0;
      yk[2]=-sqrt(3.)/2;
      yk[3]=0;
      fprintf(ferr,"\nyk[n-1]=%g\n\n",yk[n-1]);
      for (int j=1;j<jmax;j++){//For every fractal level
        for (int k=0;k<(n-1);k++){//For every existing point add three new points.
          xn[(k*4)]=xk[(k)];
          xn[(k*4)+1]=(2*xk[k]+xk[k+1])/3;
          xn[(k*4)+2]=((xk[k]+xk[k+1])/2)+((yk[k]-yk[k+1])*sqrt(3.)/6);
          xn[(k*4)+3]=(xk[k]+2*xk[k+1])/3;
          yn[(k*4)]=yk[k];
          yn[(k*4)+1]=(2*yk[k]+yk[k+1])/3;
          yn[(k*4)+2]=((yk[k]+yk[k+1])/2)-((xk[k]-xk[k+1])*sqrt(3.)/6);
          yn[(k*4)+3]=(yk[k]+2*yk[k+1])/3;
        }
        yn[4*(n-1)]=yk[n-1];
        xn[4*(n-1)]=xk[n-1];
        FILE * fpkoch = fopen("koch.dat","w");
        for (int l=0;l<(4*(n-1)+1);l++){// Copy yn and xn into yk and xk.
          yk[l]=yn[l];
          xk[l]=xn[l];
        }
        if (j==jmax-1){//Output the points of the curve after the last interation.
          for (int l=0;l<(4*(n-1)+1);l++){
            fprintf(fpkoch,"%g %g\n",xk[l],yk[l]);
          }
        }
        n=(n-1)*4+1;
      }

    Let us check-out the obtained snowflake.

    set xr [-0.2:1.2]
    set yr [-1.0:0.4]
    set xlabel 'x'
    set ylabel 'y'
    set size square
    plot 'koch.dat' title 'Koch snowflake' with lines
    (script)

    (script)

    Looks O.K. Note that the curve is defined at a much finer resolution than is displayed in the plot.

    The Algorithm

    To find the fractal dimension of this curve we iteratively refine the grid and log how many cells are located on the curve.

      FILE * fpit = fopen("cells.dat","w");
      X0=-0.5;
      Y0=-1.2;
      L0=2.0;
      init_grid(32);

      scalar c[];
      for (int m=0;m<7;m++){
        foreach()
          c[]=0;
        for(int i=0;i<n;i+=64/pow(2,m)){
          Point point = locate(xn[i],yn[i]);
          c[]+=1.0;
        }
        int gcc=0;
        int gcn=0;
        foreach(reduction(+:gcc) reduction(+:gcn)){
          gcn++;
          if(c[]>0.5)
    	gcc++;
        }

    For the refinment we (once again) have faith in the wavelet based adaption algorithm to refine (and coarsen) the grid.

        boundary({c});
        while(adapt_wavelet({c},(double[]){0.1},(7+m),4,{c}).nf);

        fprintf(fpit,"%d %d %d\n",m,gcc,gcn);
        fflush(fpit);
        int i=m;
        scalar lev[];
        foreach(){
          lev[]=level;
        }
        static FILE * fp1 = popen ("ppm2gif --delay 200 > f.gif", "w");
        output_ppm (lev, fp1,512,min=4,max=15);
      }
    }

    Results

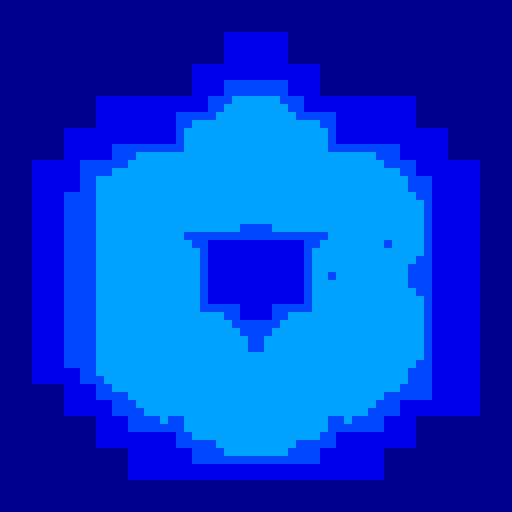

    The adaptive grid that is used to refine the cells in the neighborhood of the curve is visualized below. More red colors represent a higher level of refinement.

    The various stages of refinement

    The various stages of refinement

    Again the displayed resolution (512 \times 512) is much less than the final resulution of our analysis (that corresponds to 4096 \times 4096).

    Now we check if we can find the fractal dimension of this curve by plotting the number of grid cells against the refinement iteration.

    set xr [ -0.5:6.5]
    set yr [100:100000]
    set logscale y
    set xlabel 'refinement iteration' font "Helvetica,15"
    set ylabel 'Grid cells on the curve' font "Helvetica,15"
    set key font "Helvetica,15" box top left width 6 height 1.5 spacing 1.5
    set tics font "Helvetica,15"
    plot "cells.dat" pt 3 title "Number of cells on the curve"  ,\
          (2**(1.26*x))*200 lw 3 title "2^{1.26x} "
    (script)

    (script)

    Apparently the fractal dimension is 1.26 and not 1. The latter value would be typical for a ‘regular’ curve. As was explained in the aforementioned youtube video and also noted in another source, the fractal dimension can be expressed analytically as: \frac[ln(4)][ln(3)] \approx 1.26. That number is rather close to the one found with the present method.

    Finally, we check if the total employed number of gridcells scales with the fractal dimension of this “\text{problem}”.

    set xr [ -0.5:6.5]
    set yr [500:1000000]
    set logscale y
    set xlabel 'refinement iteration'
    set ylabel 'Total number of grid cells'
    plot "cells.dat" using 1:3 pt 4 title "Total number of cells" ,\
          (2**(1.26*x))*1000 lw 3 title "2^{1.26x}"
    (script)

    (script)

    It does appear to be the case. Well done adapt_wavelet() function!

    Follow-up

    There are two other, related cases to adress the following questions:
