March in time of the vibrating string: f_t+Uf_x=0

In this code, we do the marching in time of the advection equation f_{t}+Uf_{x}=0 with just one boundary condition at the left end by changing the code given vibrating_string.m.

clear all; clf

% parameters
N=100; % number of gridpoints
L=10; % domain length
U=2; % wave velocity
dt=0.01; % time step
tmax=10; % final time
x0=L/8; %x-coordinate at initial time
l0=0.5; %length width

% differentiation matrices
scale=-2/L;
[x,DM] = chebdif(N,2);
dx=DM(:,:,1)*scale;
x=(x-1)/scale;
Z=zeros(N,N); I=eye(N);

System matrices

Here we build the matrices that give the discretization of the equations. The equations is \displaystyle f_{t}+Uf_{x}=0 This is an equation with a single derivative, we can write this equation in the following way \displaystyle f_{t}=-UD_xf

We can put an identity matrix on the left of the equation, in this way, we can impose the boundary condition more easliy.

So the equation becomes : \displaystyle If_{t}=-UD_xf

Now we have a linear system with the form \displaystyle Ef_{t}=Af

% system matrices
E=I;
A=-U*dx;

% boundary conditions
E(1,:)=0;
A(1,:)=I(1,:);

March in time

Here we use the same method as vibrating_string.m.

% march in time matrix
M=(E-A*dt/2)\(E+A*dt/2);

Initial condition

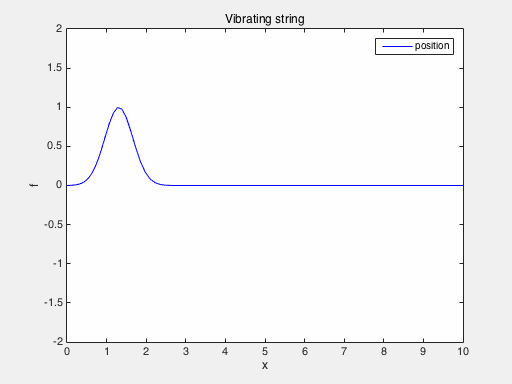

We need to describe the state of the system at initial time. We say here that the string is initially deformed as a bell curve, and that the velocity is zero. From that state we then perform a loop to repeatedly advance the state of a short forward step in time. We use drawnow to show the evolution of the simulation as a movie when running the code. We store for validation the string position at the midle of the domain, to do this without worrying about the the grid points are, we interpolate f with the function interp1.

% initial condition
q=[x*0+exp(-((x-x0)/l0).^2)];


% marching loop
tvec=dt:dt:tmax;
Nt=length(tvec);
e=zeros(Nt,1);

for ind=1:Nt
    q=M*q; % one step forward
    e(ind)=interp1(x,q,L/2); % store center point

    % plotting
    subplot(1,2,1);
    plot(x,q,'b');
    axis([0,L,-2,2])
    drawnow
end
legend('position'); title('Vibrating string')
xlabel('x'); ylabel('f');

Validation

In order to verify the solution, we draw the position of the point in the middle of L at different times.

% time evolution of central point
subplot(1,2,2);
tt=linspace(0,tmax,500);
etheo=exp(-((L/2-U*tt-x0)/l0).^2);


plot(tvec,e,'b.-',tt,etheo,'r-');
legend('numerical','theory');
xlabel('time'); ylabel('f(L/2)');

ZHAO’s contribution

 If you are interseted in advection 2D, I have also a programme advection_2D.m

 You can also link to my contribution page zhao.m %}
