sandbox/M1EMN/Exemples/bingham_collapse_NH.c
collapse of a rectangular Bingham column on a slope (Eugène and Eugène)
Problem of Liu and Mei/ Balmforth: collapse of Bingham fluid
A heap of fluid following Bingham rheology is released along a constant slope. We see the front moving to the right, and the left front going slowly up hill to the left. A real Bingham flow should stop. See Balmforth 1D related examples with only mass equation and lubrication
We solve here the simplified system of RNSP equations with the “vertically-Lagrangian multilayer solver for free-surface flows” (not Navier Stokes and not Multilayer).
RNSP Model equations
We solve the boundary layer Prandtl (RNSP) equations corresponding to a thin layer approximation of the Navier Stokes equations (hydrostatic): \displaystyle \left\{
\begin{aligned}
\dfrac{\partial u}{\partial x} + \dfrac{\partial v}{\partial y} &= 0 \\
\rho (\dfrac{\partial u}{\partial t} + \dfrac{\partial u^2}{\partial x} + \dfrac{\partial u v}{\partial y} )&= - \rho g Z'_b -
\dfrac{\partial p}{\partial x} +
\dfrac{\partial \tau_{xy}}{\partial y} \\
0 &= -\rho g -\dfrac{\partial p}{\partial y}.
\end{aligned}
\right. with Bingham rheology \tau_{xy}= \tau_y + \mu \dfrac{\partial u}{\partial z}. We define an equivalent viscosity \displaystyle \tau_{xy}= \rho \nu_{eq} \dfrac{\partial u}{\partial z}
\text{ with } \nu_{eq}=\rho \nu (1 + \dfrac{\tau_y/{\rho \nu}}{|\dfrac{\partial u}{\partial z}|}) the layered/hydro.h
is changed in http://basilisk.fr/sandbox/M1EMN/Exemples/hydroNN.h
Link with 1D model
If we integrate over the depth of flow h the incompressiblility equation, we obtain \frac{\partial h}{\partial t} + \frac{\partial Q}{\partial x}=0, where Q=\int_0^h udy. If we neglect inertia in the momentum equation, we solve for u in \displaystyle 0 = - \rho g Z'_b - \dfrac{\partial p}{\partial x} + \dfrac{\partial \tau_{xy}}{\partial y} were the pressure is hydrostatic p=\rho g (h-y), and with the Bingham rheology. This gives then Q=\int_0^h udy that we put in the mass conservation, and hence we obtain the 1D kinetic wave from the paper of Balmforth. Here we use the Hydro Solver to see the influence of the inertia neglected in the 1D model.
Link with viscous collapse
The example is linked to the collapse of a viscous fluid (Huppert 82 “The propagation of two-dimensional and axisymmetric viscous gravity currents over a rigid horizontal surface”), here we have a slope. It is done with only mass equation and lubrication here and with shallow water there. The same RNSP equations are solved with Multilayer shallow water (using the Multilayer Shallow Water (Saint Venant Multi Couches) strategy of Audusse Sainte-Marie et al 2011. See De Vita 2020 for details). We compare here with Popinet (2019) both resolutions of RNSP system. The hydrostatic http://basilisk.fr/src/layered/hydro.h “hydro.h” has been changed in “hydroNN.h” to include variable viscosity. “difusion.h” has been chenged in it and is now “difusionNN.h” (Non-Newtonian).
it is possible to test the non hydrostatic http://basilisk.fr/src/layered/nh.h, it should be done next.
Code
Includes
#include "grid/multigrid1D.h"
double BBingham;
#include "hydroNN.h"
//#include "layered/nh.h"
Non Newtonian viscosity
The definition of viscosity as a function of shear (computed in “difusion.h”):
double nu_eq(double shear,double pipi){
double nu_eq;
nu_eq = nu*(1 + BBingham/sqrt(sq(shear) + sq(.1e-8)));
return nu_eq;}
definition of viscosity (it is a function of shear: Bingham flow) \displaystyle \tau = \nu (\frac{\partial u}{\partial z} + B) where \nu is the viscosity and \nu B is the yeld stress, we define an equivalent viscosity: \displaystyle \nu_{eq}=\nu (1 + \frac{B}{|\frac{\partial u}{\partial z}|}) Note the regularization introduced to avoid division by zero. The \nu and the B have no dimension….
Main and BC
double tmax,alpha;
int main() {
X0 = -0.5;
L0 = 1.5;
G = 1.;
N = 2048/2;
nl = 128*2;
nu = 1.;
alpha=1;
tmax = 1;
BBingham = 1.25 ;
run();
}
We impose boundary condition for the position of the surface \eta (as h not defined in ‘hydro.h’, but by construction \eta= z_b+h).
eta[left] = neumann (0);
eta[right] = neumann (0);
Initialization
event init (i = 0) {
We set a zero velocity at the inlet and a free outlet.
u.n[left] = dirichlet(0);
u.n[right] = neumann(0.);
We initialize h.
foreach() {
zb[] = -(x)*alpha;
double h0 = (fabs(x)<.25) + dry;
foreach_layer()
h[] = (h0 )/nl;}
}
Output

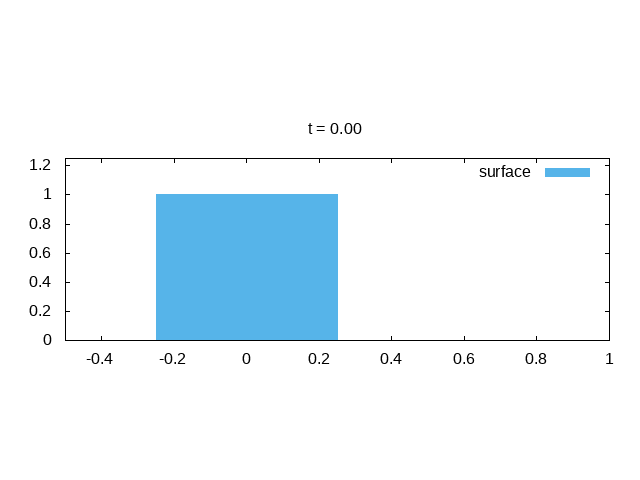

We use gnuplot to visualise the profile during time in live with X11
or we generate an animatioin
gif`
#if 0
void plot_profile (double t, FILE * fp)
{
fprintf (fp,
"set title 't = %.2f'\n"
" h(x) = (0.9*(1.28338-x*x))**(1/3.) \n"
"t = %.2f'\n"
"p [0:2][0:1.5]'-' u ($1/(t**.2)):($2*(t**.2)) w lp lc 3 t 'num' , h(x) t'huppert' \n", t,t);
foreach()
fprintf (fp, "%g %g \n", x,eta[] );
fprintf (fp, "e\n\n");
fflush (fp);
}
#else
void plot_profile (double t, FILE * fp)
{
fprintf (fp,
"set title 't = %.2f'\n"
"p [-.5:1. ][:1.25]'-' u 1:3:2 w filledcu lc 3 t 'surface', '../bingham_collapse_noSV/shape-1.25.txt' t 'B=1.25 h' w l\n", t);
foreach()
fprintf (fp, "%g %g %g\n", x,eta[]-zb[],0.00);
fprintf (fp, "e\n\n");
fflush (fp);
}
#endif
event profiles (t += .01) {
static FILE * fp = popen ("gnuplot --persist 2> /dev/null", "w");
if(t==0) fprintf (fp,"set term gif animate;set output 'animate.gif';set size ratio .333333\n");
// comment to have direct X11 animation, uncomment to generate the gif
plot_profile (t, fp);
if(t==tmax){
fprintf (fp,"! cp animate.gif ../animate.gif\n");
fprintf (fp,"! cp animate.gif a2.gif \n");
}
}

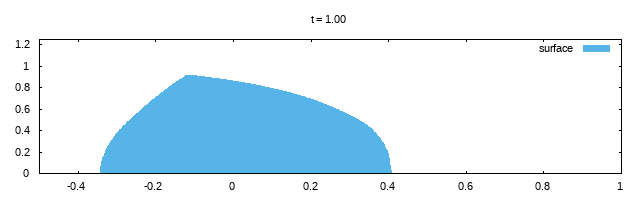

generate a snapshot at t=t_{max}.
event gnuplot (t = end) {
FILE * fp = popen ("gnuplot", "w");
fprintf (fp,
"set term png enhanced size 640,200 font \",8\"\n"
"set output 'snapshot.png'\n");
plot_profile (t, fp);
//foreach()
// fprintf (stdout, "%g %g %g \n", x,eta[],t);
//getchar();
}
We print the elevation h=\eta -z_b at last time.
event output (t = tmax) {
foreach()
fprintf (stdout, "%g %g %g \n", x, eta[]-zb[],t );
fprintf (stdout, "\n");
}
Compilation
Usual make file
make bingham_collapse_NH.tst
make bingham_collapse_NH/plots;make bingham_collapse_NH.c.html
source ../c2html.sh bingham_collapse_NH
Results
Comparison with 1D Balmforth with B=1.25 at time t=1
set xlabel "x"
set ylabel "h(x,t)"
p [-.4:.5][0:1.2]'out' w lp t'NH',\
'../bingham_collapse_noSV/shape-1.25.txt' t 'B=1.25 h' w l
Comparison with 1D Balmforth and with 2D RNSP Multilayer multilayer.h
with B=1.25 at time t=1
set xlabel "x"
set ylabel "h(x,t)"
p[-0.4:.5][:1.2]'out' w lp t'2D NH',\
'../bingham_collapse_noSV/shape-1.25.txt' t '1D ' w l,\
'../bingham_collapse_ML/shapeML-1.25.txt' t'2D ML' w l
confine 03/20 (instead of using alcoholic gel, use hydro include file!)
Links
see the related example bingham collapse in 1D 1D kinetic wave
see the related example in 2D Multilayer for comparison with
multilayer.h
related examples only mass equation and lubrication newtonian and with shallow water, newtonian see as well Navier Stokes solution.
http://basilisk.fr/sandbox/M1EMN/Exemples/viscous_collapse_ML.c viscous
multilayer.h
http://basilisk.fr/sandbox/M1EMN/Exemples/viscous_collapse_NH.c viscous with
hydro.h
Bibliography
Lagrée M2EMN Master 2 Ecoulements en Milieu Naturel see Liu & Mei preoblem and Balfmorth problem
Popinet (2019) A vertically-Lagrangian, non-hydrostatic, multilayer model for multiscale free-surface flows, Journal of Computational Physics
Francesco De Vita, Pierre-Yves Lagrée, Sergio Chibbaro, Stéphane Popinet Beyond Shallow Water: appraisal of a numerical approach to hydraulic jumps based upon the Boundary Layer Theory. Volume 79, January–February 2020, Pages 233-246 European Journal of Mechanics - B/Fluids https://doi.org/10.1016/j.euromechflu.2019.09.010
