src/test/wannier.c

    Wannier flow between rotating excentric cylinders

    This test case is similar to Couette flow but with eccentric cylinders. While the concentric cylinders case can be reduced to a one-dimensional equation in polar coordinates (the radial velocity component vanishes), this is not the case for eccentric cylinders. For this problem (also known as “journal bearing” flow), an exact analytical solution in the limit of Stokes flows was obtained by Wannier, 1950 using conformal mapping.

    #include "grid/multigrid.h"
    #include "embed.h"
    #include "navier-stokes/centered.h"
    #include "view.h"

    The analytical solution, as computed by Wannier.

    void psiuv (double x, double y,
    	    double r1, double r2, double e,
    	    double v1, double v2,
    	    double * ux, double * uy, double * psi)
    {
      double d1 = (r2*r2 - r1*r1)/(2.*e) - e/2.;
      double d2 = d1 + e;
      double s = sqrt((r2 - r1 - e)*(r2 - r1 + e)*(r2 + r1 + e)*(r2 + r1 - e))
        /(2.*e);
      double l1 = log((d1 + s)/(d1 - s));
      double l2 = log((d2 + s)/(d2 - s));
      double den = (r2*r2 + r1*r1)*(l1 - l2) - 4.*s*e;
      double curlb = 2.*(d2*d2 - d1*d1)*(r1*v1 + r2*v2)/((r2*r2 + r1*r1)*den) +
        r1*r1*r2*r2*(v1/r1 - v2/r2)/(s*(r1*r1 + r2*r2)*(d2 - d1));
      double A = -0.5*(d1*d2-s*s)*curlb;
      double B = (d1 + s)*(d2 + s)*curlb;
      double C = (d1 - s)*(d2 - s)*curlb;
      double D = (d1*l2 - d2*l1)*(r1*v1 + r2*v2)/den
        - 2.*s*((r2*r2 - r1*r1)/(r2*r2 + r1*r1))*(r1*v1 + r2*v2)/den
        - r1*r1*r2*r2*(v1/r1 - v2/r2)/((r1*r1 + r2*r2)*e);
      double E = 0.5*(l1 - l2)*(r1*v1 + r2*v2)/den;
      double F = e*(r1*v1 + r2*v2)/den;

      y += d2;
      double spy = s + y;
      double smy = s - y;
      double zp = x*x + spy*spy;
      double zm = x*x + smy*smy;
      double l = log(zp/zm);
      double zr = 2.*(spy/zp + smy/zm);

      *psi = A*l + B*y*spy/zp + C*y*smy/zm + D*y + E*(x*x + y*y + s*s) + F*y*l;
      *ux = -A*zr - B*((s + 2.*y)*zp - 2.*spy*spy*y)/(zp*zp) -
        C*((s - 2.*y)*zm + 2.*smy*smy*y)/(zm*zm) - D -
        E*2.*y - F*(l + y*zr);
      *uy = -A*8.*s*x*y/(zp*zm) - B*2.*x*y*spy/(zp*zp) -
        C*2.*x*y*smy/(zm*zm) + E*2.*x -
        F*8.*s*x*y*y/(zp*zm);
    }

    The strange choices for radii R1,R2 and eccentricity ECC come from the ‘bipolar’ variant.

    #define R1 (1./sinh(1.5))
    #define R2 (1./sinh(1.))
    #define X1 (1./tanh(1.5))
    #define X2 (1./tanh(1.))
    #define ECC (X2 - X1)

    int main() {
      size (2.5);
      origin (-L0/2., -L0/2.);

      stokes = true;
      for (N = 32; N <= 512; N *= 2)
        run();
    }

    scalar un[];

    #define WIDTH 0.5

    event init (t = 0) {

    Viscosity is unity.

      mu = fm;

    The geometry is two excentric cylinders.

      vertex scalar phi[];
      foreach_vertex()
        phi[] = difference (sq(R2) - sq(x) - sq(y - ECC),
    			sq(R1) - sq(x) - sq(y));
      boundary ({phi});
      fractions (phi, cs, fs);

    The outer cylinder is fixed and the inner cylinder is rotating with a tangential velocity unity.

      u.n[embed] = dirichlet (x*x + y*y > 1.5*sq(R1) ? 0. : - y/R1);
      u.t[embed] = dirichlet (x*x + y*y > 1.5*sq(R1) ? 0. :   x/R1);

    We initialize the reference field.

      foreach()
        un[] = u.y[];
    }

    We look for a stationary solution.

    event logfile (t += 0.01; i <= 1000) {
      double du = change (u.y, un);
      if (i > 0 && du < 1e-5)
        return 1; /* stop */
    }

    We compute the error field and error norms and display the tangential velocity, pressure and error fields using bview.

    event profile (t = end)
    {
      scalar e[], nu[];
      foreach() {
        if (cs[] > 0.) {
          double pw, uw, vw;
          psiuv (x, y - ECC, R1, R2, ECC, 1., 0., &uw, &vw, &pw);
          nu[] = sqrt (sq(u.x[]) + sq(u.y[]));
          e[] = nu[] - sqrt(uw*uw + vw*vw);
        }
        else
          e[] = nu[] = p[] = nodata;
      }

      norm n = normf (e);
      fprintf (ferr, "%d %.3g %.3g %.3g %d %d %d %d %d\n", N, n.avg, n.rms, n.max,
    	   i, mgp.i, mgp.nrelax, mgu.i, mgu.nrelax);
      dump();

      view (fov = 13.85, tx = 0, ty = -0.088);

      draw_vof ("cs", "fs", filled = -1, fc = {1,1,1});
      squares ("nu", spread = -1);
      save ("nu.png");

      draw_vof ("cs", "fs", filled = -1, fc = {1,1,1});
      squares ("p", spread = -1);
      save ("p.png");

      draw_vof ("cs", "fs", filled = -1, fc = {1,1,1});
      squares ("e", spread = -1);
      save ("e.png");

      if (N == 32)
        foreach() {
          double pw, uw, vw;
          psiuv (x, y, R1, R2, ECC, 1., 0., &uw, &vw, &pw);
          fprintf (stdout, "%g %g %g %g %g %g %g %g\n",
    	       x, y, u.x[], u.y[], p[], e[], uw, vw);
        }
    }

    Results

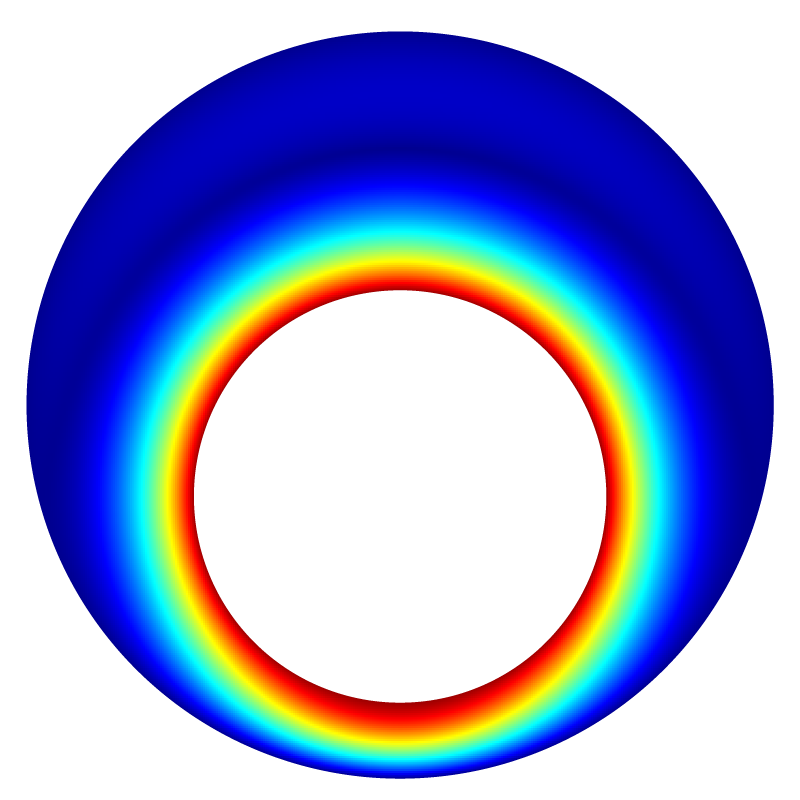

    Norm of the velocity

    Norm of the velocity

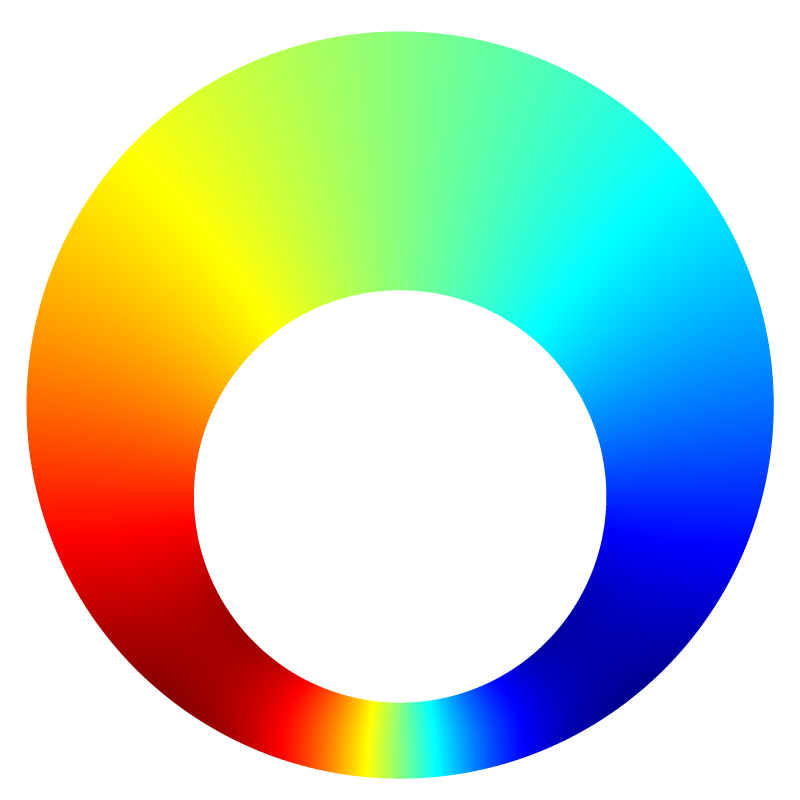

    The pressure field is not trivial.

    Pressure field

    Pressure field

    Error field

    Error field

    Convergence is close to second-order.

    set xrange [*:*]
    ftitle(a,b) = sprintf("%.3f/x^{%4.2f}", exp(a), -b)
    f(x) = a + b*x
    fit f(x) 'log' u (log($1)):(log($4)) via a,b
    f2(x) = a2 + b2*x
    fit f2(x) '' u (log($1)):(log($2)) via a2,b2
    set xlabel 'Resolution'
    set logscale
    set xtics 16,2,1024
    set ytics format "% .0e"
    set grid ytics
    set cbrange [1:2]
    set xrange [16:1024]
    set ylabel 'Error'
    set yrange [*:*]
    set key top right
    plot '' u 1:4 pt 6 t 'max', exp(f(log(x))) t ftitle(a,b), \
         '' u 1:2 t 'avg', exp(f2(log(x))) t ftitle(a2,b2)
    Error convergence (script)

    Error convergence (script)

    References

    [wannier1950]

    Gregory H. Wannier. A contribution to the hydrodynamics of lubrication. Quarterly of Applied Mathematics, 8(1):1–32, 1950. [ http ]
