src/test/poiseuille45.c

    Poiseuille flow in a periodic channel inclined at 45 degrees

    We test the embedded boundaries by solving the viscous flow driven by gravity in an inclined periodic channel.

    #include "embed.h"
    #include "navier-stokes/centered.h"
    #include "view.h"

    int main()
    {
      origin (-0.5, -0.5);
      periodic (right);
      periodic (top);

      stokes = true;
      TOLERANCE = 1e-7;

      for (N = 16; N <= 64; N *= 2)
        run();
    }

    scalar un[];

    #define WIDTH 0.5
    #define EPS 1e-14

    event init (t = 0) {

    The gravity vector is aligned with the channel and viscosity is unity.

      const face vector g[] = {1.,1.};
      a = g;
      mu = fm;

    The channel geometry is defined using the levelset function \phi.

      vertex scalar phi[];
      foreach_vertex()
        phi[] = difference (union (y - x - EPS, x - y - 0.5 + EPS),
    			y - x - 0.5 + EPS);
      boundary ({phi});
      fractions (phi, cs, fs);

    The boundary condition is zero velocity on the embedded boundaries.

      u.n[embed] = dirichlet(0);
      u.t[embed] = dirichlet(0);

    We use “third-order” face flux interpolation.

      for (scalar s in {u})
        s.third = true;

    We initialize the reference velocity.

      foreach()
        un[] = u.y[];
    }

    We check for a stationary solution.

    event logfile (t += 0.1; i <= 1000) {
      double du = change (u.y, un);
      if (i > 0 && du < 1e-6)
        return 1; /* stop */
    }

    We compute the error and display the solution using bview.

    event profile (t = end) {
      printf ("\n");
      foreach()
        fprintf (stdout, "%g %g %g %g %g\n", x, y, u.x[], u.y[], p[]);
      scalar e[];
      foreach() {
        double x1 = y - x;
        e[] = u.x[] - 0.25*(sq(WIDTH/2.) - sq(x1 >= 0. ? x1 - 0.25 : x1 + 0.75));
      }
      norm n = normf (e);
      fprintf (ferr, "%d %.3g %.3g %.3g %d %d %d %d %d\n",
    	   N, n.avg, n.rms, n.max, i, mgp.i, mgp.nrelax, mgu.i, mgu.nrelax);

      draw_vof ("cs", "fs");
      squares ("u.x", linear = true, spread = -1);
      save ("u.x.png");
    }

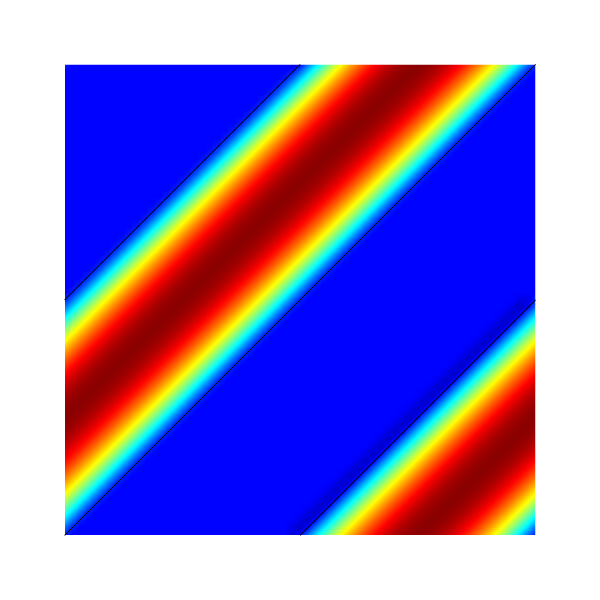

    Velocity field

    Velocity field

    The method is almost exact.

    set xlabel 'Resolution'
    set ylabel 'Maximum error'
    set logscale
    set xtics 4,2,128
    set ytics format "% .0e"
    plot 'log' u 1:4 w lp t ''
    Error as function of resolution (script)
