src/test/conical.c

    Runup of a solitary wave on a conical island

    In this test case, we compare experimental data with solutions of the Saint-Venant, Green-Naghdi and layered equations. For details on the test case and experimental data many references are available (e.g. Hou el al, 2013, Nikolos and Delis, 2009, Lannes and Marche, 2014, Kazolea et al, 2012 etc…).

    We also test both the explicit and the implicit versions of the Saint-Venant solver.

    #if SAINT_VENANT
# if IMPLICIT
#  include "saint-venant-implicit.h"
# else
#  include "saint-venant.h"
# endif
# define MGD 0
#elif ML
# include "layered/hydro.h"
# include "layered/nh.h"
 // fixme: remap does not work
 // # include "layered/remap.h"
# define MGD mgp.i
#else
# include "green-naghdi.h"
# define MGD mgD.i
#endif

    The domain is 27.6 metres squared, resolved with a maximum of 2562 grid points.

    #define MAXLEVEL 8
#define MINLEVEL 0

int main()
{
  G = 9.81;
  size (27.6);

    We set an “acoustic” CFL for the implicit solver, so that the timestep is comparable to that of the explicit Saint-Venant solver. With larger timesteps the scheme is too dissipative.

    #if IMPLICIT
  CFLa = 0.25;
#endif

#if ML
  breaking = 0.07;
  // nl = 1;
  CFL_H = 0.5;
  TOLERANCE = 1e-4;
#endif

  init_grid (1 << MAXLEVEL);
  run();
}

    We reproduce case B i.e. a relative amplitude of the solitary wave of 0.09.

    double H0 = 0.32, H = 0.32*0.09, T = 2.45;
#define C sqrt(G*(H0 + H))

double sech2 (double x)
{
  double e = exp (-x);
  double s = 2.*e/(1. + e*e);
  return s*s;
}

double eta0 (double t)
{
  return H*sech2 (sqrt(3.*H/(4.*cube(H0)))*C*(t - T));
}

double uleft (double t)
{
  double e = eta0 (t);
  return C*e/(H0 + e);
}

    This is the definition of the topography of the conical island.

    double island (double x, double y)
{
  double r0 = 3.6, r1 = 1.1, H0 = 0.625;
  x -= 25.92/2.; y -= L0/2.;
  double r = sqrt(x*x + y*y);
  return r > r0 ? 0. : r < r1 ? H0 : (r - r0)/(r1 - r0)*H0;
}

    On the tree we need to make sure that refined cells are initialised with the correct topography.

    #if TREE
void refine_zb (Point point, scalar zb)
{
  foreach_child()
    zb[] = island (x, y);
}
#endif

event init (i = 0)
{

    We use the definition of the solitary wave to impose conditions on the left side (i.e. the “wave paddle”).

    #if ML
  eta[left] = dirichlet (H0 + eta0(t));
  h[left] = dirichlet((H0 + eta0(t))/nl);
  u.n[left] = uleft (t)/nl;
  u.t[left] = 0.;
#else
  h[left] = H0 + eta0(t);
#if IMPLICIT
  q.n[left] = (H0 + eta0(t))*uleft (t);
  q.t[left] = 0.;
#else
  u.n[left] = uleft (t);
  u.t[left] = 0.;
#endif
#endif

#if TREE

    We setup the refinement function and choose to conserve surface elevation rather than volume.

      zb.refine = refine_zb;
  default_sea_level = H0;
  conserve_elevation();
#endif

    These are the initial conditions i.e. conical island and lake-at-rest.

      foreach() {
    zb[] = island (x, y);
#if ML
    foreach_layer()
      h[] = max(0., H0 - zb[])/nl;
#else
    h[] = max(0., H0 - zb[]);
#endif
  }
}

    We define the wave gauges corresponding with the experimental locations.

    Gauge gauges[] = {
  {"WG3",   6.82, 13.05},
  {"WG6",   9.36, 13.80},
  {"WG9",  10.36, 13.80},
  {"WG16", 12.96, 11.22},
  {"WG22", 15.56, 13.80},
  {NULL}
};

    We output snapshots of fields at various times.

    event outputfile (t = {9, 12, 13, 14, 20})
{
  static int nf = 0;
  printf ("file: conical-%d\n", nf);
#if ML
  scalar H[];
  foreach() {
    H[] = 0.;
    foreach_layer()
      H[] += h[];
  }
#else
  scalar H = h;
#endif
  output_field ({H,zb}, stdout, N, linear = true);

    Here we output the level of refinement of the grid.

      printf ("file: level-%d\n", nf);
  scalar l[];
  foreach()
    l[] = level;
  output_field ({l}, stdout, N);
  nf++;
}

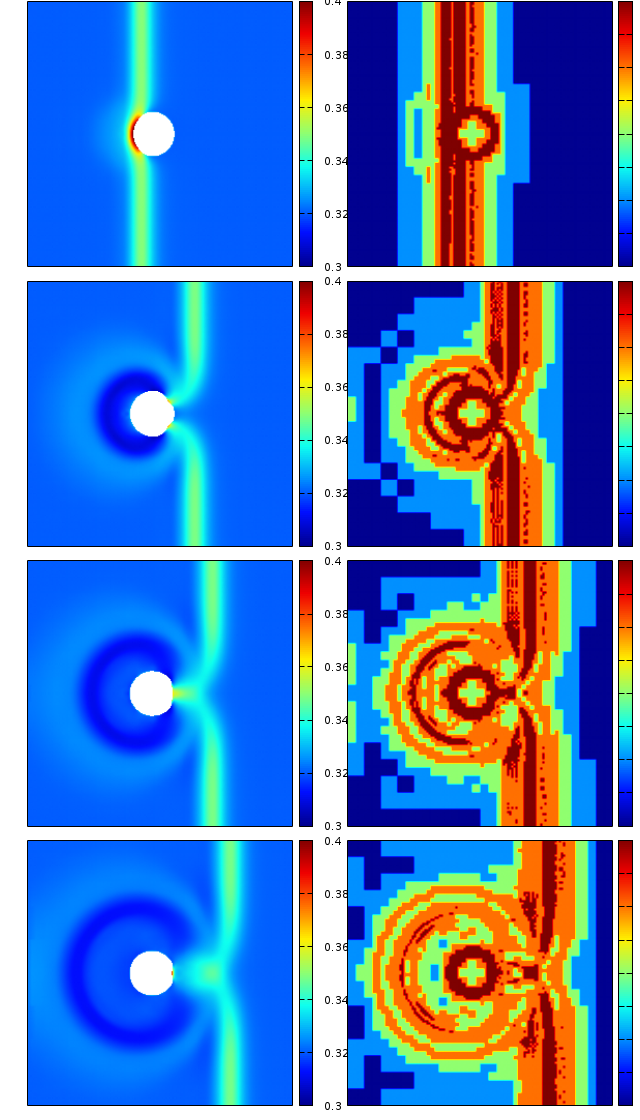

    Which gives the following wave (left column) and mesh (right column) evolutions.

    set term @PNG enhanced size 640,1120 font ",8"
set output 'free.png'

! awk '{ if ($1 == "file:") file = $2; else print $0 > file; }' < out

unset key
unset xtics
unset ytics

dry=1e-4

set size ratio -1
set pm3d
set pm3d map
# set contour base
set palette defined ( 0 0 0 0.5647, 0.125 0 0.05882 1, 0.25 0 0.5647 1, \
0.375 0.05882 1 0.9333, 0.5 0.5647 1 0.4392, 0.625 1 0.9333 0,	\
0.75 1 0.4392 0, 0.875 0.9333 0 0, 1 0.498 0 0 )

set multiplot layout 4,2 scale 1.35,1.35
set cbrange [0.3:0.4]
splot './conical-0' u 1:2:($3>dry?$3+$4:1e1000)
set cbrange [4:8]
splot './level-0'
set cbrange [0.3:0.4]
splot './conical-1' u 1:2:($3>dry?$3+$4:1e1000)
set cbrange [4:8]
splot './level-1'
set cbrange [0.3:0.4]
splot './conical-2' u 1:2:($3>dry?$3+$4:1e1000)
set cbrange [4:8]
splot './level-2'
set cbrange [0.3:0.4]
splot './conical-3' u 1:2:($3>dry?$3+$4:1e1000)
set cbrange [4:8]
splot './level-3'
unset multiplot
    Evolution of free surface (left) and mesh (right) (script)

    Evolution of free surface (left) and mesh (right) (script)

    event logfile (i++) {

    We output various diagnostics.

    #if ML
  scalar H[];
  foreach() {
    H[] = 0.;
    foreach_layer()
      H[] += h[];
  }
#else
  scalar H = h;
#endif
  stats s = statsf (H);

  #if ML
  norm n = normf (u.x);
  #elif IMPLICIT
  scalar u[];
  foreach()
    u[] = h[] > dry ? q.x[]/h[] : 0.;
  norm n = normf (u);
  #else
  norm n = normf (u.x);
  #endif

  if (i == 0)
    fprintf (stderr, "t i h.min h.max h.sum u.x.rms u.x.max dt mgD.i\n");
  fprintf (stderr, "%g %d %.8f %g %.8f %g %.4g %g %d\n",
	   t, i, s.min, s.max, s.sum, n.rms, n.max, dt, MGD);

    Here we output surface elevation at the various gauges…

      #if IMPLICIT
  scalar eta[];
  foreach()
    eta[] = h[] > dry ? h[] + zb[] : nodata;
  #endif

  output_gauges (gauges, {eta});

    We also use a simple implicit scheme to implement quadratic bottom friction i.e. \displaystyle \frac{d\mathbf{u}}{dt} = - C_f|\mathbf{u}|\frac{\mathbf{u}}{h} with C_f=10^{-4}.

      foreach() {
#if IMPLICIT
    double a = h[] < dry ? HUGE : 1. + 1e-4*dt*norm(q)/sq(h[]);
    foreach_dimension()
      q.x[] /= a;
#else
    double a = h[] < dry ? HUGE : 1. + 1e-4*dt*norm(u)/h[];
    foreach_dimension()
      u.x[] /= a;
#endif
  }
}

    … and compare it with experimental data for the Green-Naghdi solver (blue), the Saint-Venant solver (magenta) and layered solver (black). The results for the Green-Naghdi solver are very similar to those of Kazolea et al, 2012, Figure 14 and Lannes and Marche, 2014, Figure 20 and significantly better than the results of the Saint-Venant solver (see also e.g. Figure 18 of Hou et al, 2013 and Figure 19 of Nikolos and Delis, 2009) which have too sharp fronts.

    reset
set term svg enhanced size 640,800 font ",10"
set multiplot layout 5,1 scale 1.,1.
set tmargin 0.5
set xrange [3:20]
t0=22.
h0=0.32
plot '../ts2b.txt' u ($1-t0):($4-0.001) pt 7 ps 0.25 t 'WG3',	\
'../conicalsv/WG3' u 1:($2-h0) w l lt 4 t 'Saint-Venant explicit',	\
'../conical-implicit/WG3' u 1:($2-h0) w l lt 5 t 'Saint-Venant implicit', \
'./WG3' u 1:($2-h0) w l lt 3 t 'Green-Naghdi', \
'../conical-ml/WG3' u 1:($2-h0) w l lw 2 lt -1 t 'layered'
plot '../ts2b.txt' u ($1-t0):($6-0.0004) pt 7 ps 0.25 t 'WG6',	\
'../conicalsv/WG6' u 1:($2-h0) w l lt 4 t '',			\
'../conical-implicit/WG6' u 1:($2-h0) w l lt 5 t '',		\
'./WG6' u 1:($2-h0) w l lt 3 t '', \
'../conical-ml/WG6' u 1:($2-h0) w l lw 2 lt -1 t ''
plot '../ts2b.txt' u ($1-t0):($7) pt 7 ps 0.25 t 'WG9',	\
'../conicalsv/WG9' u 1:($2-h0) w l lt 4 t '',		\
'../conical-implicit/WG9' u 1:($2-h0) w l lt 5 t '',	\
'./WG9' u 1:($2-h0) w l lt 3 t '', \
'../conical-ml/WG9' u 1:($2-h0) w l lw 2 lt -1 t ''
plot '../ts2b.txt' u ($1-t0):($8-0.0017) pt 7 ps 0.25 t 'WG16',	\
'../conicalsv/WG16' u 1:($2-h0) w l lt 4 t '',		\
'../conical-implicit/WG16' u 1:($2-h0) w l lt 5 t '',		\
'./WG16' u 1:($2-h0) w l lt 3 t '', \
'../conical-ml/WG16' u 1:($2-h0) w l lw 2 lt -1 t ''
plot '../ts2b.txt' u ($1-t0):($9+0.0015) pt 7 ps 0.25 t '',	\
'../conicalsv/WG22' u 1:($2-h0) w l lt 4 t 'WG22',		\
'../conical-implicit/WG22' u 1:($2-h0) w l lt 5 t '',	\
'./WG22' u 1:($2-h0) w l lt 3 t '', \
'../conical-ml/WG22' u 1:($2-h0) w l lw 2 lt -1 t ''
unset multiplot

! rm -f conical-?
    Timeseries of surface elevation. Numerical results and experimental data (symbols). (script)

    Timeseries of surface elevation. Numerical results and experimental data (symbols). (script)

    We adapt the mesh based on the wavelet-estimated error on the free surface elevation.

    #if TREE
event adapt (i++) {
  scalar eta1[];
  foreach() {
#if ML
    double H = 0.;
    foreach_layer()
      H += h[];
    eta1[] = H > dry ? zb[] + H : 0.;
#else
    eta1[] = h[] > dry ? zb[] + h[] : 0.;
#endif
  }

  astats s = adapt_wavelet ({eta1}, (double[]){3e-4}, MAXLEVEL, MINLEVEL);
  fprintf (stderr, "# refined %d cells, coarsened %d cells\n", s.nf, s.nc);
}
#endif
