src/examples/isotropic.c

    Forced isotropic turbulence in a triply-periodic box

    We compute the evolution of forced isotropic turbulence (see Rosales & Meneveau, 2005) and compare the solution to that of the hit3d pseudo-spectral code. The initial condition is an unstable solution to the incompressible Euler equations. Numerical noise in the solution eventually leads to the destabilisation of the base solution into a fully turbulent flow where turbulent dissipation balances the linear input of energy.

    We use the \lambda_2 criterion and Basilisk View for visualisation of vortices.

    #include "lambda2.h"
    #include "view.h"

    We monitor performance statistics and control the maximum runtime.

    #include "navier-stokes/perfs.h"
    #include "maxruntime.h"

    #define MU 0.01

    We need to store the variable forcing term.

    face vector av[];

    The code takes the level of refinement as optional command-line argument (as well as an optional maximum runtime).

    int maxlevel = 7;

    int main (int argc, char * argv[])
    {
      maxruntime (&argc, argv);
      if (argc > 1)
        maxlevel = atoi(argv[1]);

    The domain is (2\pi)^3 and triply-periodic.

      L0 = 2.*pi;
      foreach_dimension()
        periodic (right);

    The viscosity is constant. The acceleration is defined below. The level of refinement is maxlevel.

      const face vector muc[] = {MU,MU,MU};
      mu = muc;
      a = av;
      N = 1 << maxlevel;
      run();
    }

    Initial conditions

    The initial condition is “ABC” flow. This is a laminar base flow that is easy to implement in both Basilisk and a spectral code.

    event init (i = 0) {
      if (!restore (file = "restart"))
        foreach() {
          u.x[] = cos(y) + sin(z);
          u.y[] = sin(x) + cos(z);
          u.z[] = cos(x) + sin(y);
        }
    }

    Linear forcing term

    We compute the average velocity and add the corresponding linear forcing term.

    event acceleration (i++) {
      coord ubar;
      foreach_dimension() {
        stats s = statsf(u.x);
        ubar.x = s.sum/s.volume;
      }
      foreach_face()
        av.x[] += 0.1*((u.x[] + u.x[-1])/2. - ubar.x);
    }

    Outputs

    We log the evolution of viscous dissipation, kinetic energy, and microscale Reynolds number.

    event logfile (i++; t <= 300) {
      coord ubar;
      foreach_dimension() {
        stats s = statsf(u.x);
        ubar.x = s.sum/s.volume;
      }

      double ke = 0., vd = 0., vol = 0.;
      foreach(reduction(+:ke) reduction(+:vd) reduction(+:vol)) {
        vol += dv();
        foreach_dimension() {
          // mean fluctuating kinetic energy
          ke += dv()*sq(u.x[] - ubar.x);
          // viscous dissipation
          vd += dv()*(sq(u.x[1] - u.x[-1]) +
    		  sq(u.x[0,1] - u.x[0,-1]) +
    		  sq(u.x[0,0,1] - u.x[0,0,-1]))/sq(2.*Delta);
        }
      }
      ke /= 2.*vol;
      vd *= MU/vol;

      if (i == 0)
        fprintf (ferr, "t dissipation energy Reynolds\n");
      fprintf (ferr, "%g %g %g %g\n",
    	   t, vd, ke, 2./3.*ke/MU*sqrt(15.*MU/vd));
    }

    We generate a movie of the vortices.

    Animation of the \lambda_2 isosurface (a way to characterise vortices) and cross-sections of velocity and vorticity.

    event movie (t += 0.25; t <= 150)
    {
      view (fov = 44, camera = "iso", ty = .2,
    	width = 600, height = 600, bg = {1,1,1}, samples = 4);
      clear();
      squares ("u.y", linear = true);
      squares ("u.x", linear = true, n = {1,0,0});
      scalar omega[];
      vorticity (u, omega);
      squares ("omega", linear = true, n = {0,1,0});
      scalar l2[];
      lambda2 (u, l2);
      isosurface ("l2", -1);
      save ("movie.mp4");
    }

    We can optionally try adaptivity.

    #if TREE
    event adapt (i++) {
      double uemax = 0.2*normf(u.x).avg;
      adapt_wavelet ((scalar *){u}, (double[]){uemax,uemax,uemax}, maxlevel);
    }
    #endif

    Running with MPI on occigen

    On the local machine

    %local qcc -source -D_MPI=1 isotropic.c
    %local scp _isotropic.c occigen.cines.fr:

    On occigen (using 512 cores)

    module purge
    module load openmpi
    module load intel
    mpicc -Wall -O2 -std=c99 _isotropic.c -o isotropic \
            -I$HOME -L$HOME/gl -lglutils -lfb_osmesa -lGLU -lOSMesa -lm
    sed 's/WALLTIME/10:00/g' run.sh | sbatch

    Note that this assumes that the Basilisk gl libraries have been installed in $HOME/gl.

    With the run.sh script

    #!/bin/bash
    #SBATCH -J basilisk
    #SBATCH --nodes=32
    #SBATCH --constraint=HSW24
    #SBATCH --ntasks-per-node=16
    #SBATCH --threads-per-core=1
    #SBATCH --time=WALLTIME
    #SBATCH --output basilisk.output
    #SBATCH --exclusive

    LEVEL=7

    module purge
    module load openmpi
    module load intel

    srun --mpi=pmi2 -K1 --resv-ports -n $SLURM_NTASKS \
         ./isotropic -m WALLTIME $LEVEL \
         2> log-$LEVEL-$SLURM_NTASKS > out-$LEVEL-$SLURM_NTASKS

    Running with MPI on mesu

    On the local machine

    %local qcc -source -D_MPI=1 isotropic.c
    %local scp _isotropic.c mesu.dsi.upmc.fr:

    On mesu (using 512 cores)

    module load mpt
    mpicc -Wall -O2 -std=c99 _isotropic.c -o isotropic -I$HOME -L$HOME/gl -lglutils \
            -lfb_osmesa -lGLU -lOSMesa -lm
    sed 's/WALLTIME/10:00/g' run.sh | qsub

    with the run.sh script

    #!/bin/bash
    #PBS -l select=22:ncpus=24:mpiprocs=24
    #PBS -l walltime=WALLTIME
    #PBS -N isotropic
    #PBS -j oe
    # load modules
    module load mpt
    # change to the directory where program job_script_file is located
    cd $PBS_O_WORKDIR
    # mpirun -np 64 !!!! does not work !!!!
    NP=512
    mpiexec_mpt -n $NP ./isotropic -m WALLTIME 2>> log.$NP >> out.$NP

    Results

    The two codes agree at early time, or until the solution transitions to a turbulent state. The statistics produced by the two codes agree well after transition to turbulence.

    set xlabel 'Time'
    set ylabel 'Kinetic energy'
    set logscale  y
    plot 'isotropic.occigen' u 1:3 w l t 'Basilisk (occigen)', \
         'isotropic.mesu' u 1:3 w l t 'Basilisk (mesu)', \
         'isotropic.hit3d' u 1:($3*3./2.) w l t 'Spectral'

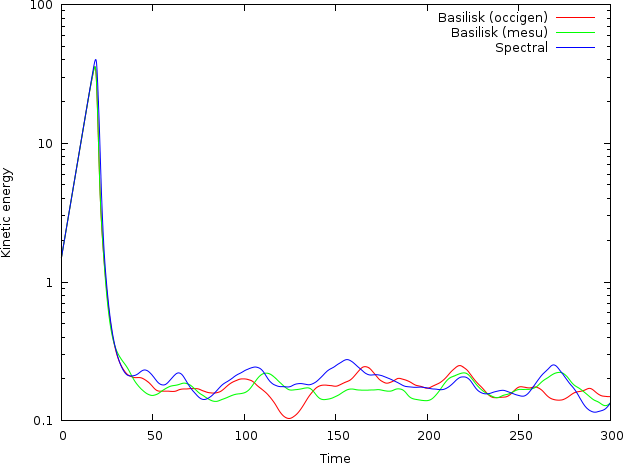

    Evolution of kinetic energy (script)

    Evolution of kinetic energy (script)

    set ylabel 'Microscale Reynolds number'
    plot 'isotropic.occigen' u 1:4 w l t 'Basilisk (occigen)', \
         'isotropic.mesu' u 1:4 w l t 'Basilisk (mesu)', \
         'isotropic.hit3d' u 1:4 w l t 'Spectral'

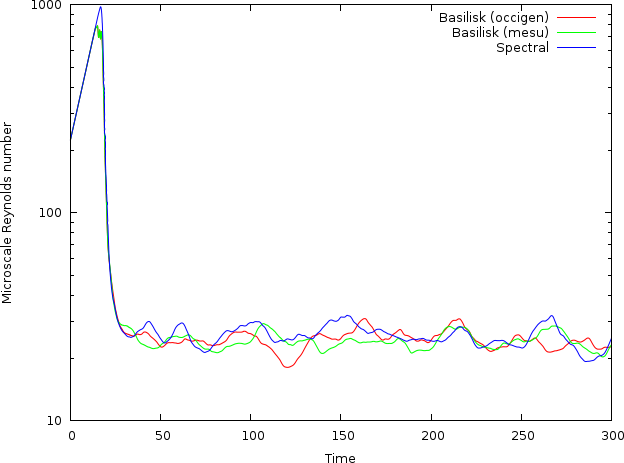

    Evolution of microscale Reynolds number (script)

    Evolution of microscale Reynolds number (script)

    set ylabel 'Dissipation function'
    plot 'isotropic.occigen' u 1:2 w l t 'Basilisk (occigen)', \
         'isotropic.mesu' u 1:2 w l t 'Basilisk (mesu)', \
         'isotropic.hit3d' u 1:2 w l t 'Spectral'

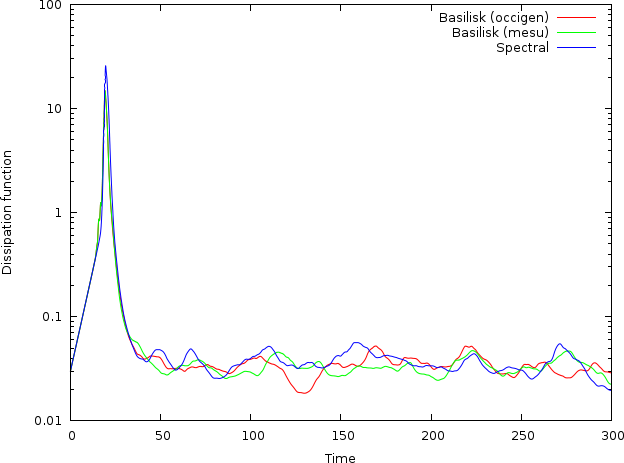

    Evolution of dissipation (script)

    Evolution of dissipation (script)

    The computational speed is respectable (for a relatively small 1283 problem on 512 cores). Note that these were obtained when switching off movie outputs.

    set ylabel 'Speed'
    unset logscale
    plot 'isotropic.occigen' u 1:($7/512) w l t 'occigen', \
         'isotropic.mesu' u 1:($7/512) w l t 'mesu'

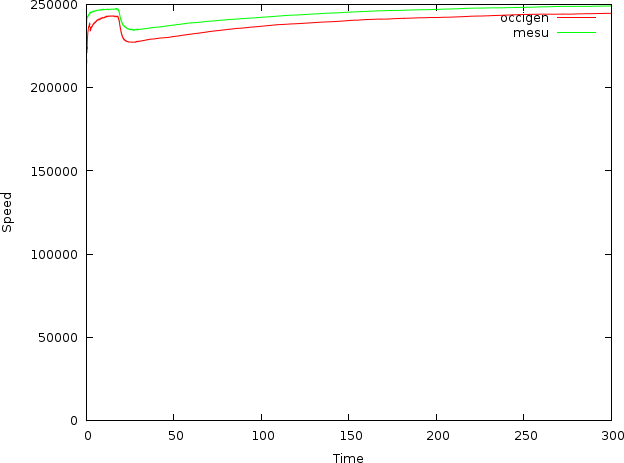

    Computational speed in points.timesteps/sec/core (script)

    Computational speed in points.timesteps/sec/core (script)

    Scalability on irene

    Irene is the supercomputer at CEA.

    On the local machine

    %local qcc -source -D_MPI=1 isotropic.c
    %local scp _isotropic.c irene.ccc.cea.fr:

    On irene

    mpicc -Wall -O2 -std=c99 -xCORE-AVX512 _isotropic.c -o isotropic \
            -I$HOME -L$HOME/gl -lglutils -lfb_osmesa -lGLU -lOSMesa -lm
    sed -e 's/WALLTIME/600/g' -e 's/LEVEL/7/g' run.sh | ccc_msub -n 512

    with the run.sh script

    #!/bin/bash
    #MSUB -r isotropic
    #MSUB -T WALLTIME
    #MSUB -o basilisk_%I.out
    #MSUB -e basilisk_%I.log
    #MSUB -q skylake
    #MSUB -A gen7760
    #MSUB -m scratch

    set -x
    cd ${BRIDGE_MSUB_PWD}

    ccc_mprun -n ${BRIDGE_MSUB_NPROC} ./isotropic -m WALLTIME LEVEL \
        2> log-${BRIDGE_MSUB_NPROC} > out-${BRIDGE_MSUB_NPROC}
    set xlabel '# of cores'
    set ylabel 'Speed (points x timestep/sec/core)'
    set logscale x
    plot '-' w lp t ''
    8     366497
    64    273009
    512   196904
    4096  167429
    e

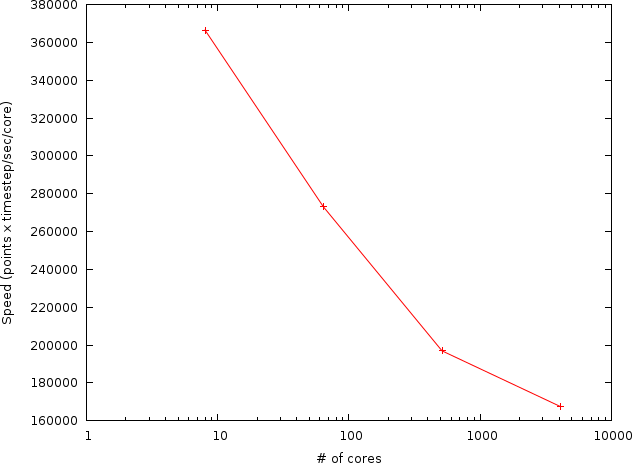

    Weak scaling on Irene (163 per core) (script)

    Weak scaling on Irene (163 per core) (script)

    set xlabel '# of cores'
    set ylabel 'Speed (points x timestep/sec/core)'
    set logscale x
    plot '-' w lp t ''
    8     281250
    64    189218
    512   165312
    4096  156683
    e

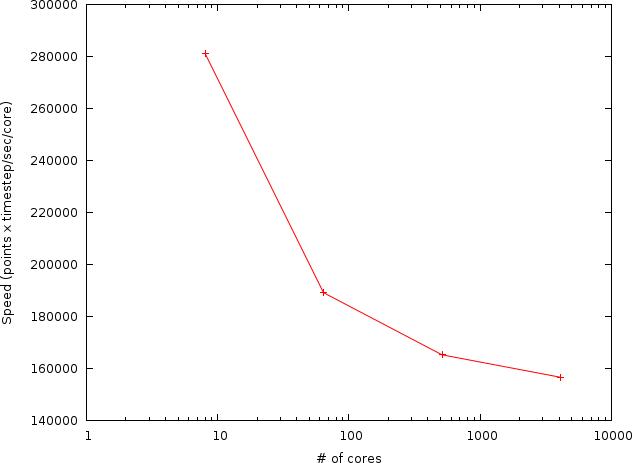

    Weak scaling on Irene (323 per core) (script)

    Weak scaling on Irene (323 per core) (script)
