RP_rk4.c

#include "run.h"
#include "timestep.h"

We perform a 4th order Runge-Kutta integration for a double using Basilisk events to integrate a system \displaystyle \frac{d\,Y}{dt} = f(t,Y) where Y= (y, \dot{y})^T is the state vector.

#include "RK4.h" // one step integration

Some non-dimensionnal parameters

// double pinf=1.;   // pressure at infinity, used to adimensionalize
// double rhoL=1.;   // liquid density, used to adimensionalize
// double R0=1.;     // initial bubble radius, used to adimensionalize

double pv=0.;        // vapor pressure
double pg0=1./3.;    // initial gas pressure    !! pg0 = pl0 + 2/We
double dotR0=0.;     // initial bubble velocity
double We=1e1;       // Weber number
double Re=1e4;       // Reynolds number

double gammaG=1.4;   // gas polytropic coeficient

We define the function to integrate the Rayleigh-Plesset equation, cf [Brennen (2013), Cavitation and bubble dynamics, eq. (2.27), paragraph 2.4] for a bubble initially at equilibrium subjected to a suddent high pressure increase at infinity: \displaystyle \dfrac{p_v-p_\infty}{\rho_l} + \dfrac{p_{g,0}}{\rho_l}\left(\dfrac{R_0}{R}\right)^{3k} = R\ddot{R} + \dfrac{3}{2}\left(\dot{R}\right)^2 + 4\nu_l\dfrac{\dot{R}}{R} + \dfrac{2\sigma}{\rho_l R} with p_v the saturated vapor pressure, p_\infty the pressure at infinity, \rho_l the bulk (liquid) density, p_{g,0} the initial (gas) bubble pressure, R = R(t) the bubble radius and R_0 the initial bubble radius, k the polytropic coefficient (k=1: constant bubble temperature, k=\gamma: adiabatic), \nu_l the dynamic viscosity and \sigma the surface tension.

Using \rho_l, p_\infty, R_0 to create non-dimensional variables, we obtain \displaystyle p_v^*-1 + p_{g,0}^*\left(\dfrac{1}{R^*}\right)^{3k} = R^*\ddot{R}^* + \dfrac{3}{2}\left(\dot{R}^*\right)^2 + \dfrac{4}{R_e}\dfrac{\dot{R}^*}{R^*} + \dfrac{2}{W_e}\dfrac{1}{R^*} which gives \displaystyle \ddot{R}^* = \dfrac{p_v^*-1}{R^*} + \dfrac{p_{g,0}^*}{R^*}\left(\dfrac{1}{R^*}\right)^{3k} - \dfrac{3}{2}\dfrac{\left(\dot{R}^*\right)^2}{R^*} - \dfrac{4}{R_e}\dfrac{\dot{R}^*}{\left(R^*\right)^2} - \dfrac{2}{W_e}\dfrac{1}{\left(R^*\right)^2} with p_{g,0}^* = p_{g,0}/p_\infty, p_v^* = p_v/p_\infty, R^* = R/R_0, \dot{R}^* = \dot{R} \sqrt{\rho_l/p_\infty}, \ddot{R}^* = \ddot{R} \rho_l R_0/p_\infty, R_e = \rho_l u_c R_0/\mu_l the Reynolds number with u_c = \sqrt{p_\infty/\rho_l}, W_e = \rho_l u_c^2 R_0/\sigma the Weber number.

Note: we consider p_\infty independant of the time.

my_vec f_rk4(double t, my_vec Y){   // dY/dt = f_rk4(t,Y)
  my_vec Y2;
  Y2.y0 = Y.y1;
  Y2.y1 = (pv-1.)/(Y.y0) + pg0/(Y.y0)*pow(1./Y.y0,3.*gammaG) - 3./2.*sq(Y.y1)/Y.y0 - 4./Re*Y.y1/sq(Y.y0) - 2./We*1./sq(Y.y0); // R-P eq.
  return Y2;
}

We initialize the state vector. It contains the (non-dimensional) bubble radius and its first derivative.

my_vec Y;

event init (i=0) {
  Y.y0 = 1.; // R, bubble radius
  Y.y1 = dotR0; // dot(R)
}

We integrate at each time step

event integ(i++,last){
  Y = RK4(t, dt, Y, f_rk4);  // 4th order Runge-Kutta
}

We include and define some useful things, such as the timestep and the output of the result.

double dtmax;
event set_dtmax (i++) dtmax = 0.001;

event stability (i++) {
  dt = dtnext(dtmax);   // dtnext() updates the internal variables of Basilisk to compute each iterations
}

int main(){
  init_grid(1<<1);
  run();
  free_grid();
}

Output: non-dimensional time t^* = t/t_c with t_c = \sqrt{p_\infty/\rho_l}/R_0, R^*(t), \dot{R}^*(t), and \displaystyle p_g^*(t) = p_{g,0}^* \left(\frac{1}{R^*}\right)^{3k}

event logfilef(i++){
  fprintf(stderr,"%g %g %g %g\n", t, Y.y0, Y.y1, pg0*pow(1./Y.y0,3.*gammaG) );
}

event endsimu(t=9){}

We plot the result

set term pngcairo enhanced size 500,500
set output 'radius.png'

set xlabel 't^*'
set ylabel 'R^*'

p "log" u 1:2 w p t 'RK4'

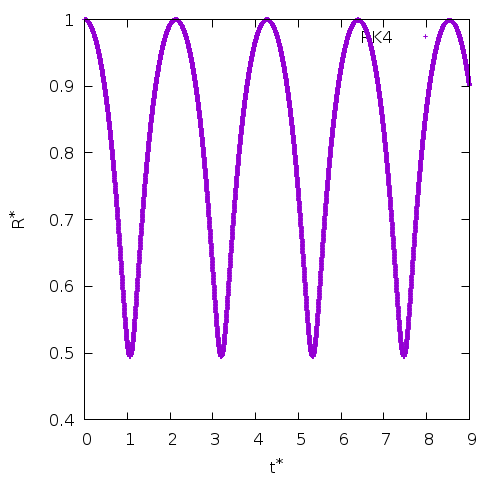

Bubble radius (non-dimensional) evolution predicted by the Rayleigh-Plesset equation and RK4 integration. (script)

set term pngcairo enhanced size 500,500
set output 'pressure.png'

set xlabel 't^*'
set ylabel 'p^*'

p "log" u 1:4 w p t 'RK4'

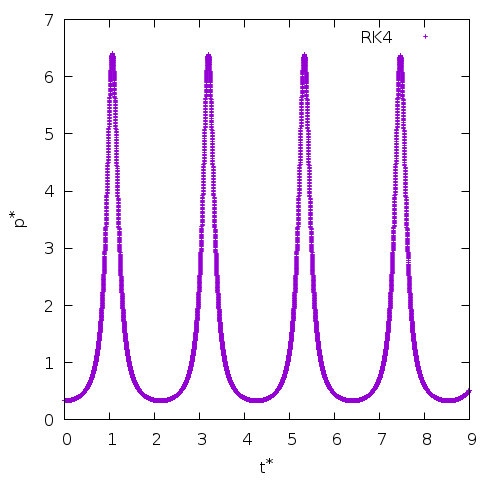

Bubble pressure (non-dimensional) evolution using the Rayleigh-Plesset equation and RK4 integration. (script)
