KM_rk4.c

#include "run.h"
#include "timestep.h"

We perform a 4th order Runge-Kutta integration for a double using Basilisk events to integrate a system \displaystyle \frac{d\,Y}{dt} = f(t,Y) where Y= (y, \dot{y})^T is the state vector.

#include "RK4.h" // one step integration

Some non-dimensionnal parameters

// double pinf=1.;   // pressure at infinity, used to adimensionalize
// double rhoL=1.;   // liquid density, used to adimensionalize
// double R0=1.;     // initial bubble radius, used to adimensionalize

double pg0=1./6.;    // initial gas pressure    !! pg0 = pl0 + 2/We
double dotR0=0.;     // initial bubble velocity
double We=1e6;       // Weber number
double Re=1e4;       // Reynolds number
double Ma=0.007;     // Mach number

double gammaG=1.4;   // gas polytropic coeficient

We define the function to integrate the Keller-Miksis, cf [Keller and Miksis (1980) (eq.(3.4) and their is a typo in it)] or [prosperetti (1984) (eq.(15))] or [gaitan et al (1992) (eq.(1))] or [Lauteborn and Kurz (2010) (eq.(11))]) for a bubble initially at equilibrium subjected to a suddent high pressure increase at infinity: \displaystyle \left( 1 - \dfrac{\dot{R}}{c}\right) R \ddot{R} + \dfrac{3}{2} (\dot{R})^2 \left(1-\dfrac{\dot{R}}{3c}\right) = \left( 1 + \dfrac{\dot{R}}{c}\right) \dfrac{p_l - p_\infty}{\rho_l} + \dfrac{R}{\rho_l c}\dfrac{\text{d} p_l}{\text{d}t} where we dropped the retarded time term (usefull for sinusoidal infinity pressure), and with \rho_l the liquid density, c the sound celerity in liquid, R the bubble radius, p_\infty the pressure at infinity and p_l the liquid pressure at the bubble interface: \displaystyle p_l = p_g - 2\dfrac{\sigma}{R} - 4\mu\dfrac{\dot{R}}{R} with \sigma the surface tension, \mu the viscosity, p_g the gas pressure which can be expressed as \displaystyle p_g = p_{g,0} \left(\dfrac{R_0}{R}\right)^{3k} where we dropped the saturated vapor pressure and with p_{g,0} the initial gas pressure, R_0 the initial bubble radius and k the polytropic coefficient. The pressure time derivative is thus \displaystyle \dfrac{\text{d} p_l}{\text{d}t} = -3k p_{g,0} \left(\dfrac{R_0}{R}\right)^{3k} \dfrac{\dot{R}}{R} + \dfrac{2\sigma\dot{R}}{R^2} - \dfrac{4\mu\ddot{R}}{R} + \dfrac{4\mu(\dot{R})^2}{R^2}

Using \rho_l, p_\infty, R_0 to create non-dimensional variables, we obtain \displaystyle \left( 1 - M_a\dot{R}^*\right) R^* \ddot{R}^* + \dfrac{3}{2} (\dot{R}^*)^2 \left(1-\dfrac{M_a}{3}\dot{R}^*\right) = \left( 1 + M_a\dot{R}^*\right) (p_l^* - 1) + M_aR^*\dfrac{\text{d} p_l^*}{\text{d}t^*} and \displaystyle p_l^* = p_{g,0}^* \left(\dfrac{1}{R^*}\right)^{3k} - \dfrac{2}{W_e} \dfrac{1}{R^*} - \dfrac{4}{R_e} \dfrac{\dot{R}^*}{R^*} and \displaystyle \dfrac{\text{d} p_l^*}{\text{d}t^*} = -3k p_{g,0}^* \left(\dfrac{1}{R^*}\right)^{3k} \dfrac{\dot{R}^*}{R^*} + \dfrac{2}{W_e} \dfrac{\dot{R}^*}{(R^*)^2} - \dfrac{4}{R_e} \dfrac{\ddot{R}^*}{R^*} + \dfrac{4}{R_e}\dfrac{(\dot{R}^*)^2}{(R^*)^2} with W_e = \rho_l u_c^2 R_0/\sigma, R_e = \rho_l u_c R_0/\mu_l, M_a = u_c/c = 1/c^* and u_c = \sqrt{p_\infty/\rho_l}.

As the pressure time derivative contains \ddot{R}, we rewrite the equation as \displaystyle \left( 1 - M_a\dot{R}^*\right) R^* \ddot{R}^* + 4\dfrac{M_a}{R_e}\ddot{R}^* + \dfrac{3}{2} (\dot{R}^*)^2 \left(1-\dfrac{M_a}{3}\dot{R}^*\right) = \left( 1 + M_a\dot{R}^*\right) (p_l^* - 1) + M_aR^*S with \displaystyle S = -3k p_{g,0}^* \left(\dfrac{1}{R^*}\right)^{3k} \dfrac{\dot{R}^*}{R^*} + \dfrac{2}{W_e} \dfrac{\dot{R}^*}{(R^*)^2} + \dfrac{4}{R_e}\dfrac{(\dot{R}^*)^2}{(R^*)^2}

For time integration, the equation rewrites as \displaystyle \ddot{R}^* =\dfrac{ - \dfrac{3}{2} (\dot{R}^*)^2 \left(1-\dfrac{M_a}{3}\dot{R}^*\right) + \left( 1 + M_a\dot{R}^*\right) (p_l^* - 1) + M_aR^*S }{\left( 1 - M_a\dot{R}^*\right) R^* + 4\dfrac{M_a}{R_e} }

my_vec f_rk4(double t, my_vec Y){   // dY/dt = f_rk4(t,Y)

  double pl = pg0*pow(Y.y0,-3.*gammaG) - 2./We/Y.y0 - 4./Re*Y.y1/Y.y0;
  double RS = -3.*gammaG*pg0*pow(Y.y0,-3.*gammaG)*Y.y1 + 2./We*Y.y1/Y.y0 + 4./Re*sq(Y.y1)/Y.y0;  // R*S

  my_vec Y2;
  Y2.y0 = Y.y1;
  Y2.y1 = ( -3./2.*sq(Y.y1)*(1.-Ma/3.*Y.y1) + (1.+Ma*Y.y1)*(pl-1.) + Ma*RS )/( (1.-Ma*Y.y1)*Y.y0 + 4.*Ma/Re  ); // K-M eq.
  return Y2;
}

We initialize the state vector. It contains the (non-dimensional) bubble radius and its first derivative.

my_vec Y;

event init (i=0) {
  Y.y0 = 1.; // R, bubble radius
  Y.y1 = dotR0; // dot(R)
}

We integrate at each time step

event integ(i++,last){
  Y = RK4(t, dt, Y, f_rk4);  // 4th order Runge-Kutta
}

We include and define some useful things, such as the timestep and the output of the result.

double dtmax;
event set_dtmax (i++) dtmax = 0.001;

event stability (i++) {
  dt = dtnext(dtmax);   // dtnext() updates the internal variables of Basilisk to compute each iterations
}

int main(){
  init_grid(1<<1);
  run();
  free_grid();
}

Output: non-dimensional time t^* = t/t_c with t_c = \sqrt{p_\infty/\rho_l}/R_0, R^*(t), \dot{R}^*(t), and \displaystyle p_g^*(t) = p_{g,0}^* \left(\frac{1}{R^*}\right)^{3k}

event logfilef(i++){
  fprintf(stderr,"%g %g %g %g\n", t, Y.y0, Y.y1, pg0*pow(1./Y.y0,3.*gammaG) );
}

event endsimu(t=9){}

We plot the result

set term pngcairo enhanced size 500,500
set output 'radius.png'

set xlabel 't^*'
set ylabel 'R^*'

p "log" u 1:2 w p t 'RK4'

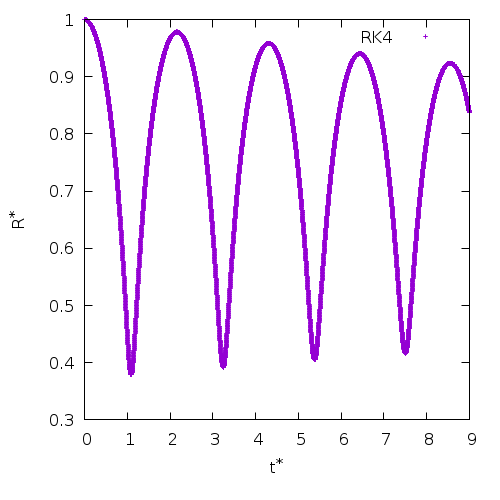

Bubble radius (non-dimensional) evolution predicted by the Rayleigh-Plesset equation and RK4 integration. (script)

set term pngcairo enhanced size 500,500
set output 'pressure.png'

set xlabel 't^*'
set ylabel 'p^*'

p "log" u 1:4 w p t 'RK4'

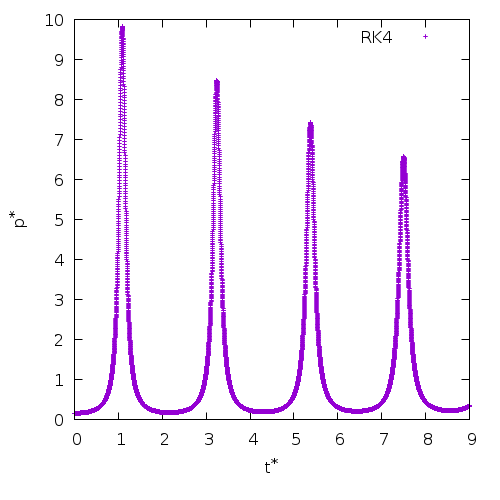

Bubble pressure (non-dimensional) evolution using the Rayleigh-Plesset equation and RK4 integration. (script)
