sandbox/lopez/slip.c
Couette flow between rotating cylinders
We test embedded boundaries by solving the (Stokes) Couette flow between two rotating cylinders. If SLIP is defined, the outer cylinder is free of viscous stresses.
#include "grid/multigrid.h"
#include "src/embed_C.h"
#include "navier-stokes/centered.h"
#include "view.h"
#define SLIP 1
int main()
{
size (1. [0]);
DT = 1. [0];
origin (-L0/2., -L0/2.);
stokes = true;
TOLERANCE = 1e-5;
#if !SLIP
int NF = 32;
#else
int NF = 32;
#endif
for (N = 16; N <= NF; N *= 2)
run();
}
scalar un[];
#define WIDTH 0.5
event init (t = 0) {
The viscosity is unity.
mu = fm;
The geometry of the embedded boundary is defined as two cylinders of radii 0.5 and 0.25.
vertex scalar phi[];
foreach_vertex()
phi[] = difference (sq(0.5) - sq(x) - sq(y),
sq(0.25) - sq(x) - sq(y));
boundary ({phi});
fractions (phi, cs, fs);
The outer cylinder is fixed and the inner cylinder is rotating with an angular velocity unity.
#if SLIP
u.n[embed] = (x*x + y*y > 0.14 ? navier (0.) : dirichlet (-y));
u.t[embed] = (x*x + y*y > 0.14 ? navier (0.) : dirichlet (x));
#else
u.n[embed] = dirichlet (x*x + y*y > 0.14 ? 0. : -y);
u.t[embed] = dirichlet (x*x + y*y > 0.14 ? 0. : x);
#endif
We initialize the reference velocity field.
foreach()
un[] = u.y[];
}
We look for a stationary solution.
event logfile (t += 0.01; i <= 1000) {
double du = change (u.y, un);
if (i > 0 && du < 1e-6)
return 1; /* stop */
}

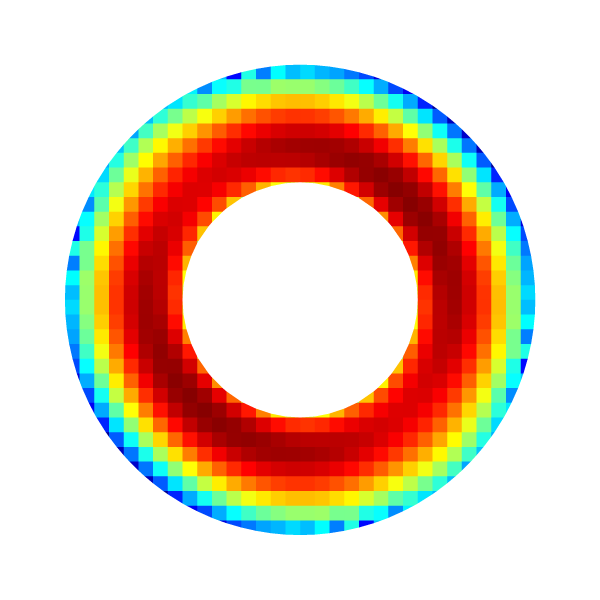

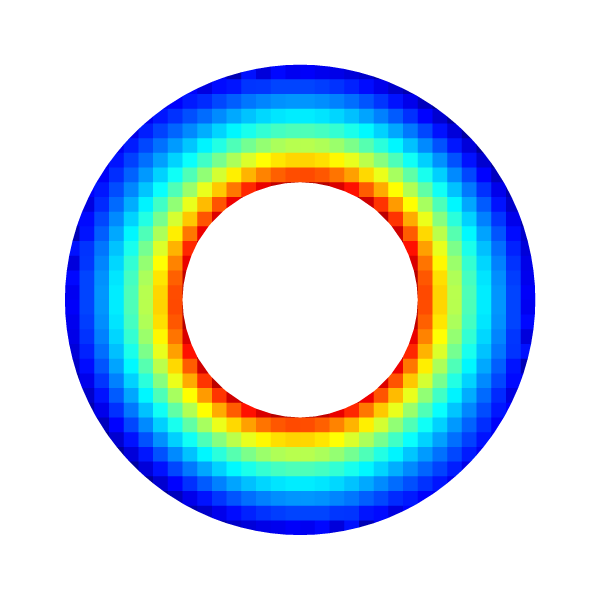

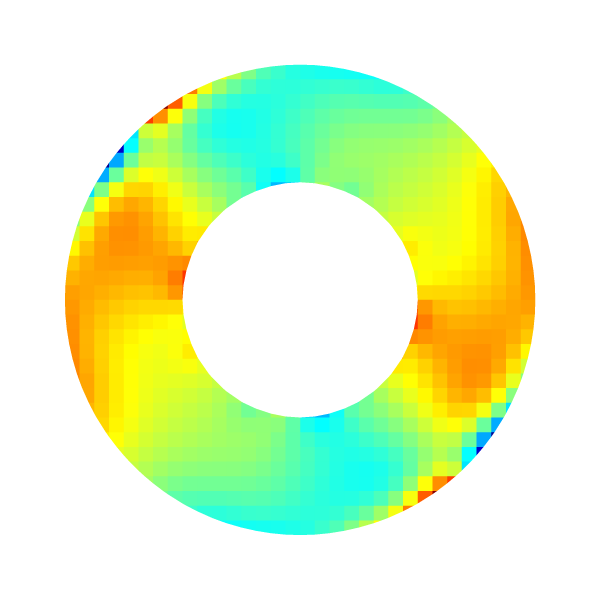

We compute error norms and display the angular velocity, pressure and error fields using bview.
#if SLIP
#define powerlaw(r) (sq(0.25)/(sq(0.25) + sq(0.5))*(sq(0.5)/r + r))
#else
#define powerlaw(r) (r*(sq(0.5/r) - 1.)/(sq(0.5/0.25) - 1.))
#endif
event profile (t = end)
{
scalar utheta[], e[];
foreach() {
double theta = atan2(y, x), r = sqrt(x*x + y*y);
if (cs[] > 0.) {
utheta[] = - sin(theta)*u.x[] + cos(theta)*u.y[];
e[] = utheta[] - powerlaw (r);
}
else
e[] = p[] = utheta[] = nodata;
}
norm n = normf (e);
fprintf (ferr, "%d %.3g %.3g %.3g %d %d %d %d %d\n",
N, n.avg, n.rms, n.max, i, mgp.i, mgp.nrelax, mgu.i, mgu.nrelax);
dump();
draw_vof ("cs", "fs", filled = -1, fc = {1,1,1});
squares ("utheta", spread = -1);
save ("utheta.png");
draw_vof ("cs", "fs", filled = -1, fc = {1,1,1});
squares ("p", spread = -1);
save ("p.png");
draw_vof ("cs", "fs", filled = -1, fc = {1,1,1});
squares ("e", spread = -1);
save ("e.png");
if (N == 32)
foreach() {
double theta = atan2(y, x), r = sqrt(x*x + y*y);
fprintf (stdout, "%g %g %g %g %g %g %g\n",
r, theta, u.x[], u.y[], p[], utheta[], e[]);
}
}
Results
set xlabel 'r'
set ylabel 'u_theta'
powerlaw(r)=(0.25**2/(0.25**2 + 0.5**2)*(0.5**2/r + r))
set grid
set arrow from 0.25, graph 0 to 0.25, graph 1 nohead
set arrow from 0.5, graph 0 to 0.5, graph 1 nohead
plot [0.2:0.55][-0.05:0.35] 'out' u 1:6 t 'numerics',powerlaw(x) t 'theory'
