sandbox/lopez/fract.c

    Test for reconstructed face fractions.

    //#include "grid/cartesian.h"
    #include "fractions.h"
    #include "src/fracface.h"

    int main()
    {
      origin (-0.5, -0.5);
      init_grid (4);
    #if TREE
      refine (level == 2 && x < 0.25);
    #endif
      FILE * fp = fopen ("cells", "w");
      output_cells (fp);
      fclose (fp);

      vertex scalar phi[];
      foreach_vertex()
        phi[] = 0.1 - sq(x) - sq(y);

      scalar c[];
    #if TREE
      c.prolongation = fraction_refine;
    #endif
      face vector sf[];
      fractions (phi, c);
      face_fraction (c, sf);
      fp = fopen ("log", "w");
      foreach_face()
        fprintf(fp,"%g %g %g \n", x, y, sf.x[]);
      fclose (fp);
      fp = fopen ("facet", "w");
      output_facets (c, fp);
      fclose (fp);
    }
       set terminal @PNG enhanced size 640,640 font ",8"
       set size ratio -1
       unset key
       unset border
       unset tics
       plot 'cells' w l, 'facet' w l, 'log' u 1:2:3 with labels

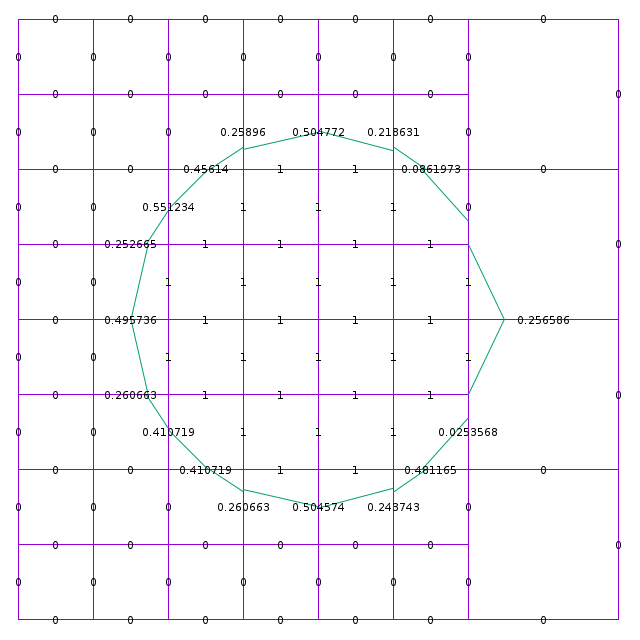

    Reconstructed face fractions (script)

    Reconstructed face fractions (script)
