Rheology of a suspension of deformable capsules in a shear flow

Rheology of a suspension of deformable capsules in a shear flow

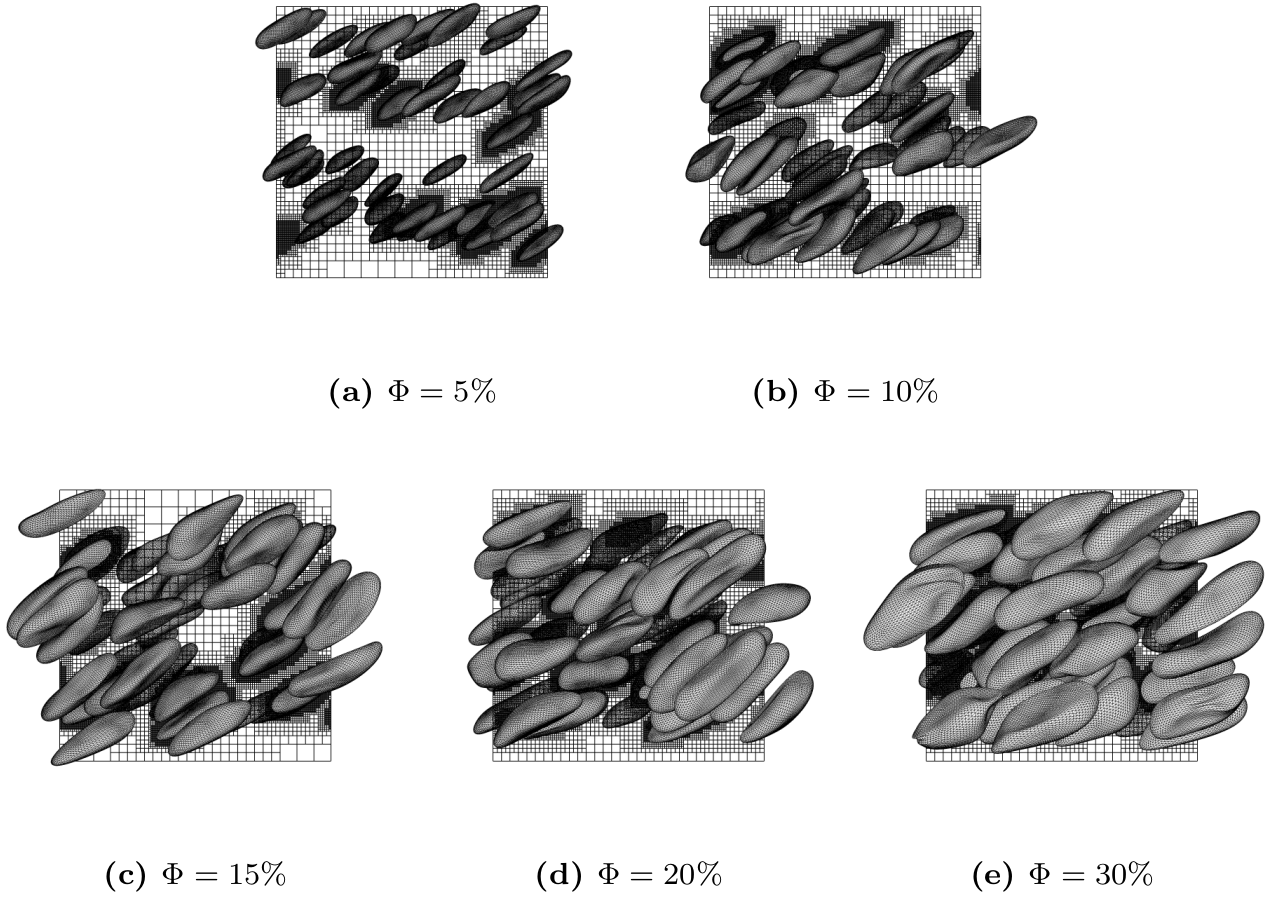

$Suspension of 50 capsules in a bi-periodic shear flow with volume fractions from 5% to 30%$

Suspension of 50 capsules in a bi-periodic shear flow with volume fractions from 5% to 30%

Definition of the relevant parameters

We define the following physical quantities:

the size of the box L_0 = 8,
the radius a = 1,
the shear rate \dot{\gamma} = 1,
the Reynolds number Re \ll 1,
the viscosity \mu = 1,
the density \rho = \frac{Re \, \mu}{\dot{\gamma} a^2},
the Capillary number defined - in the case of capsules - as the ratio of viscous forces over elastic forces: Ca = \frac{\mu a \dot{\gamma}}{E_S}
the elastic modulus E_S

#define NCAPS 50
#define VOLUME_FRACTION 0.05
#define L0 1.
#define RADIUS (pow(NCAPS*3.1415926535*4/(3*VOLUME_FRACTION), -1./3)*L0)
#define SHEAR_RATE 1.
#ifndef RE
  #define RE 10.
#endif
#define MU 1.
#define RHO (RE*MU/(SHEAR_RATE*sq(RADIUS)))
#ifndef CA
  #define CA 0.1
#endif
#define E_S (MU*RADIUS*SHEAR_RATE/CA)

We also define some solver-ralated quantities:

the non-dimensional duration time of the simulation TEND
the minimum and maximum refinement levels of the Eulerian grid
the number of refinement levels LAGLEVEL of the Lagrangian mesh of the capsule
the maximum time-step DT_MAX, which appears to be dependant on the Capillary number
the tolerance of the Poisson solver (maximum admissible residual)
the tolerance of the wavelet adaptivity algorithm for the velocity
an frequency of post-processing output (here, every 10 iterations)
the stokes boolean, in order to ignore the convective term in the Navier-Stokes solver
the Jacobi preconditionner, which we switch on for this case.

#ifndef TEND
  #define TEND (100./SHEAR_RATE)
#endif
#ifndef MINLEVEL
  #define MINLEVEL 4
#endif
#ifndef MAXLEVEL
  #define MAXLEVEL 8
#endif
#ifndef LAG_LEVEL
  #define LAG_LEVEL 4
#endif
#ifndef DT_MAX
  #define DT_MAX 1.e-3
#endif
#ifndef MY_TOLERANCE
  #define MY_TOLERANCE 1.e-6
#endif
#ifndef U_TOL
  #define U_TOL 0.01
#endif
#ifndef OUTPUT_FREQ
  #define OUTPUT_FREQ 25
#endif
#ifndef OUTPUT_FREQ_PV_DUMP
  #define OUTPUT_FREQ_PV_DUMP 1000
#endif
#ifndef STOKES
  #define STOKES false
#endif
#define JACOBI 1
#define PARAVIEW_CAPSULE 1
#define PARAVIEW_FLOW_FIELD 0
#define OUTPUT_CAPS_NODE_TRI_INFO 0

#define MIN_DELTA (L0/(1 << MAXLEVEL))
#define MIN_INITIAL_GAP (3*MIN_DELTA)
#define MAX_POSITIONING_ATTEMPTS 1.e+6

#define rand_pos_periodic() (((double)rand() / (double)((unsigned)RAND_MAX + 1)\
  - 0.5)*L0)
#define rand_pos() (((double)rand() / (double)((unsigned)RAND_MAX + 1)\
  - 0.5)*(L0 - 2*(RADIUS + MIN_INITIAL_GAP)))

Simulation setup

We import the octree grid, the centered Navier-Stokes solver, the Lagrangian mesh, the neo-Hookean elasticity, a header file containing functions to mesh a sphere, and the Basilisk viewing functions supplemented by a custom function draw\_lag useful to visualize the front-tracking interface.

#include "grid/octree.h"
#include "navier-stokes/centered.h"
#include "lagrangian_caps/capsule-ft.h"
#include "lagrangian_caps/neo-hookean-ft.h"
#include "lagrangian_caps/common-shapes-ft.h"
#include "lagrangian_caps/view-ft.h"
#if PARAVIEW_FLOW_FIELD
  #include "lagrangian_caps/vtu_output.h"
#endif

bool no_intersection(lagMesh* caps, int k) {
  bool no_intersection = true;
  for(int i=0; i<k; i++) {
    foreach_dimension() {
      if (fabs(GENERAL_SQNORM(caps[i].centroid, caps[k].centroid)) < sq(2*RADIUS
        + MIN_INITIAL_GAP)) {
        no_intersection = false;
        break;
      }
    }
  }
  return no_intersection;
}

FILE* foutput = NULL;
FILE* fperf = NULL;

const scalar myrho[] = RHO;
const face vector mymu[] = {MU, MU, MU};
const face vector myalpha[] = {1./RHO, 1./RHO, 1./RHO};

int main(int argc, char* argv[]) {
  origin(-0.5*L0, -0.5*L0, -0.5*L0);

We set periodic boundary conditions on the non-horizontal walls.

  periodic(right);
  periodic(front);
  N = 1 << MINLEVEL;
  mu = mymu;
  rho = myrho;
  alpha = myalpha;
  TOLERANCE = MY_TOLERANCE;

We don’t need to compute the convective term in this case, so we set the boolean stokes to false. However it is still important to choose Re \ll 1 since we are solving the unsteady Stokes equation.

  stokes = STOKES;
  DT = DT_MAX;
  srand ( time(NULL) );
  run();
}

We impose shear-flow boundary conditions…

u.n[bottom] = dirichlet(0);
u.n[top] = dirichlet(0);
u.t[bottom] = dirichlet(0.);
u.t[top] = dirichlet(0.);
u.r[top] = dirichlet(SHEAR_RATE*y);
u.r[bottom] =  dirichlet(SHEAR_RATE*y);
uf.n[bottom] = dirichlet(0);
uf.n[top] = dirichlet(0);

event init (i = 0) {
  foutput  = fopen("output.txt","w");
  fperf = fopen("perf.csv", "w");
  fprintf(fperf, "total_nb_cells, nb_iter_viscous, resb_viscous, resa_viscous, nb_relax_viscous, nb_iter_pressure, resb_pressure, resa_pressure, nb_relax_pressure\n");

… and we initialize the flow field to that of an undisturbed, fully-developed shear.

  foreach() {
    u.x[] = SHEAR_RATE*y;
    u.y[] = 0.;
    u.z[] = 0.;
  }

  for(int k=0; k<NCAPS; k++)
    activate_spherical_capsule(&CAPS(k), radius = RADIUS, level = LAG_LEVEL);

  if (pid() == 0) {
    for(int k=0; k<NCAPS; k++) {
      bool keep_drawing_positions = true;
      int nb_attempts = 0;
      while (keep_drawing_positions && nb_attempts < MAX_POSITIONING_ATTEMPTS) {
        CAPS(k).centroid.x = rand_pos_periodic();
        CAPS(k).centroid.y = rand_pos();
        CAPS(k).centroid.z = rand_pos_periodic();
        if (no_intersection(allCaps.caps, k)) {
          for(int i=0; i<CAPS(k).nln; i++)
            foreach_dimension() CAPS(k).nodes[i].pos.x += CAPS(k).centroid.x;
          keep_drawing_positions = false;
          fprintf(stderr, "Number of attempts to insert capsule %d: %d\n", k,
            nb_attempts+1);
        }
        nb_attempts++;
      }
      if (nb_attempts == MAX_POSITIONING_ATTEMPTS) {
        fprintf(stderr, "Error: max number of attempts to insert capsule \
          %d reached.\n", k);
        return 1;
      }
    }
  }
  #if _MPI

We now inform all the other processors of the positions of the capsules

    double centroids[3*NCAPS];
    if (pid() == 0) {
      for(int k=0; k<NCAPS; k++) {
        centroids[3*k] = CAPS(k).centroid.x;
        centroids[3*k+1] = CAPS(k).centroid.y;
        centroids[3*k+2] = CAPS(k).centroid.z;
      }
    }
    MPI_Bcast(centroids, 3*NCAPS, MPI_DOUBLE, 0, MPI_COMM_WORLD);
    if (pid() > 0) {
      for(int k=0; k<NCAPS; k++) {
        CAPS(k).centroid.x = centroids[3*k];
        CAPS(k).centroid.y = centroids[3*k+1];
        CAPS(k).centroid.z = centroids[3*k+2];
        for(int i=0; i<CAPS(k).nln; i++)
          foreach_dimension() CAPS(k).nodes[i].pos.x += CAPS(k).centroid.x;
      }
    }
  #endif
  for(int k=0; k<NCAPS; k++) correct_lag_pos(&CAPS(k));
  generate_lag_stencils(no_warning = true);
  astats ss;
  int ic = 0;
  do {
    ic++;
    tag_ibm_stencils();
    ss = adapt_wavelet ({stencils}, (double[]) {1.e-30}, maxlevel = MAXLEVEL, minlevel = MINLEVEL);
    generate_lag_stencils(no_warning = true);
    fprintf(stderr, "Refine initial mesh: step %d\n", ic);
  } while ((ss.nf || ss.nc) && ic < 100);
}

The Eulerian mesh is adapted at every time step, according to two criteria:

first, the 5x5x5 stencils neighboring each Lagrangian node need to be at a constant level. For this purpose we tag them in the stencil scalar, which is fed to the adapt\_wavelet algorithm. We also force the top and bottom walls to be at a fine level.
second, we adapt according to the velocity field.

event adapt (i++) {
  tag_ibm_stencils();
  adapt_wavelet({stencils, u}, (double []){1.e-2, U_TOL, U_TOL, U_TOL},
    minlevel = MINLEVEL, maxlevel = MAXLEVEL);
  generate_lag_stencils();
}

int nb_dump = 0;
event output_and_dump_caps (i+=OUTPUT_FREQ_PV_DUMP) {
  #if OUTPUT_CAPS_NODE_TRI_INFO
    for(int k=0; k<NCAPS; k++) {
      char fposname[64];
      char ftriname[64];
      sprintf(fposname, "mb_%d_pos.csv", k);
      sprintf(ftriname, "mb_%d_tri.csv", k);
      dump_plain_nodes_pos(&CAPS(k), fposname);
      dump_plain_triangles(&CAPS(k), ftriname);
    }
  #endif
  #if PARAVIEW_CAPSULE
    pv_output_ascii();
  #endif
    #if PARAVIEW_FLOW_FIELD
      scalar * list = {p};
      vector * vlist = {u};
      save_data(list, vlist, t);
    #endif

    char fname[62];
    sprintf(fname, "flow_%d.dump", nb_dump);
    dump(file = fname);
    sprintf(fname, "caps_%d.dump", nb_dump);
    dump_capsules(fname);
    nb_dump++;
}

event logfile (i+=OUTPUT_FREQ) {
  double top_visc_stress = 0;
  int top_nb_cells = 0;
  foreach_boundary(top, reduction(+:top_visc_stress) reduction(+:top_nb_cells)) {
    top_nb_cells++;
    top_visc_stress += (u.x[0, 1] - u.x[])*Delta +
      (u.y[1] - u.y[-1])*.5*Delta;
  }
  top_visc_stress *= MU/(sq(L0));

  double bottom_visc_stress = 0;
  int bottom_nb_cells = 0;
  foreach_boundary(bottom, reduction(+:bottom_visc_stress), reduction(+:bottom_nb_cells)) {
    bottom_nb_cells++;
    bottom_visc_stress += (u.x[0, 1] - u.x[])*Delta +
      (u.y[1] - u.y[-1])*.5*Delta;
  }
  bottom_visc_stress *= MU/(sq(L0));

  if (pid() == 0) {
    double avg_ncaps_area = 0;
    double avg_ncaps_volume = 0;
    for(int k=0; k<NCAPS; k++) {
      avg_ncaps_volume += CAPS(k).volume;
      for(int i=0; i<CAPS(k).nlt; i++) avg_ncaps_area += CAPS(k).triangles[i].area;
    }
    avg_ncaps_area /= NCAPS*4*pi*sq(RADIUS);
    avg_ncaps_volume /= NCAPS*CAPS(0).initial_volume;

    fprintf(foutput, "%d %g %d %g %d %g %g %g\n", i, t, top_nb_cells,
      top_visc_stress, bottom_nb_cells, bottom_visc_stress, avg_ncaps_area,
      avg_ncaps_volume);
    fflush(foutput);

    fprintf(fperf, "%ld %d %g %g %d %d %g %g %d\n", grid->tn, mgu.i, mgu.resb,
      mgu.resa, mgu.nrelax, mgp.i, mgp.resb, mgp.resa, mgp.nrelax);
    fflush(fperf);
  }
}

We also output a movie frame every OUTPUT_FREQ iteration

int nb_pic = 0;
event pictures (i+=OUTPUT_FREQ) {
  char fname[32];
  view(fov = 25, bg = {1,1,1}, camera = "front");
  clear();
  // cells(n = {0,0,1}, alpha = -.49*L0);
  cells(n = {0,0,1});
  // squares("u.x", n = {0,0,1}, alpha = -.49*L0, map = cool_warm);
  draw_lags(lw = .5, edges = true, facets = true);
  sprintf(fname, "ux_%d.png", nb_pic);
  save(fname);
  nb_pic++;
}

event end (t = TEND) {
  fclose(foutput);
  return 0.;
}

Results

set multiplot

set xlabel "Non-dimensional time"
set ylabel "Normalized bulk viscosity μ_{bulk}"
set yrange [1:3.1]
set label 1 "Φ = 5%" at 75,1.35
set label 2 "Φ = 10%" at 75,1.62
set label 3 "Φ = 15%" at 75,1.8
set label 4 "Φ = 20%" at 75,2
set label 5 "Φ = 30%" at 75,2.42

stats 'phi0.05.txt' every ::1200 using (.5*($4 + $6)) prefix "A" nooutput
stats 'phi0.1.txt' every ::1200 using (.5*($4 + $6)) prefix "B" nooutput
stats 'phi0.15.txt' every ::1200 using (.5*($4 + $6)) prefix "C" nooutput
stats 'phi0.2.txt' every ::1200 using (.5*($4 + $6)) prefix "D" nooutput
stats 'phi0.3.txt' every ::1200 using (.5*($4 + $6)) prefix "E" nooutput


plot "phi0.05.txt" using 2:(.5*($4 + $6)) w l lc -1 dt 1 title "", \
"phi0.1.txt" using 2:(.5*($4 + $6)) w l lc -1 dt 1 title "", \
"phi0.15.txt" using 2:(.5*($4 + $6)) w l lc -1 dt 1 title "", \
"phi0.2.txt" using 2:(.5*($4 + $6)) w l lc -1 dt 1 title "", \
"phi0.3.txt" using 2:(.5*($4 + $6)) w l lc -1 dt 1 title "", \

set size .4, .3
set origin .07, .68
array phi[5]
array viscosity[5]
phi[1]=5
phi[2]=10
phi[3]=15
phi[4]=20
phi[5]=30
viscosity[1]=A_mean
viscosity[2]=B_mean
viscosity[3]=C_mean
viscosity[4]=D_mean
viscosity[5]=E_mean
set xlabel "Φ (\%)" offset -1,1
set ylabel "⟨μ_{bulk}⟩" offset 2.8,.5
set grid
set xrange [0:35]
set yrange [1:2.5]
set obj 1 rect from graph 0,0 to graph 1,1 fc rgb 0xffffff behind
set xtics 0,10,30 offset 0,.25
set ytics 1,.5,2.5 offset 0.5
unset label 1
unset label 2
unset label 3
unset label 4
unset label 5
plot sample [i=1:5] '+' using (phi[i]):(viscosity[i]) w p lc -1 pt 1 title ""

unset multiplot

(script)
