Hydrostatic balance with refined embedded boundaries in 3D

Hydrostatic balance with refined embedded boundaries in 3D

This test case is the 3D counterpart of hydrostatic2.c.

#include "grid/octree.h"
#include "../myembed.h"
#include "../mycentered.h"
#include "view.h"

Geometry

We use a similar porous medium as in /src/examples/porous3D.c.

void p_shape (scalar c, face vector f)
{
  int ns = 60; // 160, 80
  coord pc[ns];
  double R[ns];
  srand (0);
  for (int i = 0; i < ns; i++) {
    foreach_dimension()
      pc[i].x = 0.5*noise();
    R[i] = 2.*(0.02 + 0.04*fabs(noise()));
  }

  vertex scalar phi[];
  foreach_vertex() {
    phi[] = HUGE;
    for (double xp = -L0; xp <= L0; xp += L0)
      for (double yp = -L0; yp <= L0; yp += L0)
	for (double zp = -L0; zp <= L0; zp += L0)
	  for (int i = 0; i < ns; i++)
	    phi[] = intersection (phi[], (sq (x + xp - pc[i].x) +
					  sq (y + yp - pc[i].y) +
					  sq (z + zp - pc[i].z) -
					  sq (R[i])));
    phi[] = - phi[];
  }
  boundary ({phi});
  fractions (phi, c, f);
  fractions_cleanup (c, f,
		     smin = 1.e-14, cmin = 1.e-14);
}

Setup

We define the mesh adaptation parameters.

#define lmin (5) // Min mesh refinement level
#define lmax (7) // Max mesh refinement level

int main()
{

The domain is 1\times 1\times 1.

  L0 = 1.;
  size (L0);
  origin (-L0/2., -L0/2., -L0/2.);

We set the maximum timestep.

  DT = 1.e-2;

We set the tolerance of the Poisson solver.

  TOLERANCE = 1.e-6;

We initialize the grid.

  N = 1 << (lmin);
  init_grid (N);

  run();
}

Boundary conditions

Properties

Initial conditions

event init (i = 0)
{

We define the gravity acceleration vector.

  const face vector g[] = {1., 2., 3.};
  a = g;

We use “third-order” face flux interpolation.

#if ORDER2
  for (scalar s in {u, p, pf})
    s.third = false;
#else
  for (scalar s in {u, p, pf})
    s.third = true;
#endif // ORDER2

#if TREE

When using TREE and in the presence of embedded boundaries, we should also define the gradient of u at the cell center of cut-cells.

#endif // TREE

We initialize the embedded boundary.

#if TREE

When using TREE, we refine the mesh around the embedded boundary.

  astats ss;
  int ic = 0;
  do {
    ic++;
    p_shape (cs, fs);
    ss = adapt_wavelet ({cs}, (double[]) {1.e-2},
			maxlevel = (lmax), minlevel = (1));
  } while ((ss.nf || ss.nc) && ic < 100);
#endif // TREE

  p_shape (cs, fs);

We also define the volume fraction at the previous timestep csm1=cs.

  csm1 = cs;

We define the no-slip boundary conditions for the velocity.

  u.n[embed] = dirichlet (0);
  u.t[embed] = dirichlet (0);
  u.r[embed] = dirichlet (0);
  p[embed]   = neumann (0);

  uf.n[embed] = dirichlet (0);
  uf.t[embed] = dirichlet (0);
  uf.r[embed] = dirichlet (0);
  pf[embed]   = neumann (0);

We finally give an initial guess for the pressure.

  foreach() {
    p[] = cs[] ? (g.x[]*x + g.y[]*y + g.z[]*z) : nodata; // exact pressure
    pf[] = p[];
  }
  boundary ((scalar *) {p, pf});
}

Embedded boundaries

Outputs

We only solve the Euler equations for a few time iterations.

event logfile (i++; i <= 10)
{

We check the convergence rate and the norms of the velocity field (which should be negligible).

  assert (normf(u.x).max < 1.e-14 &&
	  normf(u.y).max < 1.e-14 &&
	  normf(u.z).max < 1.e-14);

  fprintf (stderr, "%d %g %g %d %d %d %d %d %d %g %g %g %g %g %g %g\n",
	   i, t, dt,
	   mgpf.i, mgpf.nrelax, mgpf.minlevel,
	   mgp.i,  mgp.nrelax,  mgp.minlevel,
	   mgpf.resb, mgpf.resa,
	   mgp.resb,  mgp.resa,
	   normf(u.x).max, normf(u.y).max, normf(u.z).max
	   );
}

Snapshots

event snapshot (t = end)
{
  view (fov = 20,
	tx = 0., ty = 0.,
	bg = {1,1,1},
	width = 800, height = 800);

  squares ("p", spread = -1);
  save ("p.png");
}

Results

The pressure is hydrostatic, in each of the pores.

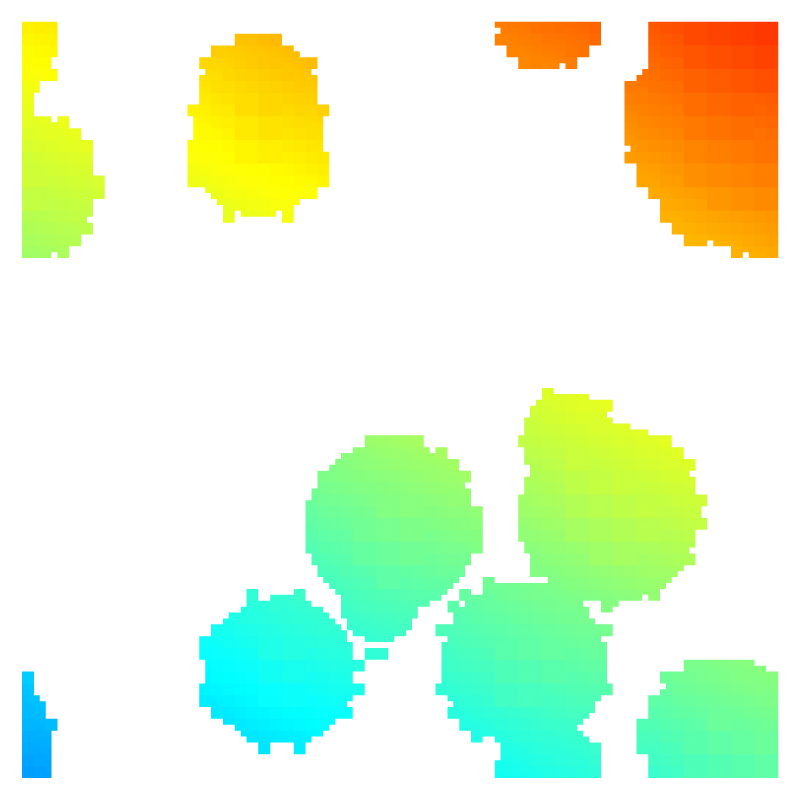

Cross-section of the pressure field.
