sandbox/ghigo/src/test-heat/neumann3D.c

    Heat equation in 3D fixed, expanding and shrinking complex domains with Dirichlet and Neumann boundary conditions

    We reproduce a test case proposed by Schwarz et al., 2006. The following heat equation is solved: \displaystyle \left\{ \begin{aligned} & a_t = \Delta a + f \\ & f(x,y,z) = 4\frac{x^2 + y^2 + z^2 + 5(t + 1)}{125 \pi (t+1)^3}\exp\left( -\frac{x^2 + y^2 + z^2}{5(t + 1)}\right) \end{aligned} \right. on three different domains (fixed, shrinking and expanding): \displaystyle \Omega_1 = \left\{(x,y,z): r < 0.392\right\}, \displaystyle \Omega_2 = \left\{(x,y,z): r < 0.392 - t\right\}, \displaystyle \Omega_3 = \left\{(x,y,z): r < 0.392 + t\right\}. The exact solution in all cases is: \displaystyle a(x,y,z) = \frac{4}{5\pi (t + 1)}\exp\left( -\frac{x^2 + y^2 + z^2}{5(t + 1)} \right).

    #include "../myembed.h"
#include "run.h"
#include "../mydiffusion.h"
mgstats mgp, mgpf, mgu;
#include "../myperfs.h"
#include "view.h"

    Exact solution

    We define here the exact solution.

    static double exact (double t, double x, double y, double z)
{
  return 4./(5.*pi*(t + 1))*exp (-(sq (x) + sq (y) + sq (z))/(5*(t + 1)));
}

    Next, we define the gradient of the exact solution.

    double exact_gradient (Point point, double t, double xc, double yc, double zc)
{
  coord p, n;
  embed_geometry (point, &p, &n);

  return (n.x*(-2.*xc)/(5.*(t + 1))*exact (t, xc, yc, zc) +
	  n.y*(-2.*yc)/(5.*(t + 1))*exact (t, xc, yc, zc) +
	  n.z*(-2.*zc)/(5.*(t + 1))*exact (t, xc, yc, zc));
}

    We then define the forcing term, evaluated at the geometric center of each cell (which is different from the center of a cell for cut-cells).

    double f (double t, double x, double y, double z)
{
  return 4.*(sq (x) + sq (y) + sq (z) + 5.*(t + 1))/(125.*pi*cube (t + 1))*exp (-(sq (x) + sq (y) + sq (z))/(5*(t + 1)));
}

    We also define the shape of the domain.

    #if GEOM // concave
void p_shape (scalar c, face vector f, double r)
{
  vertex scalar phi[];
  foreach_vertex() {
    phi[] = sq(x) + sq(y) + sq(z) - sq(r);
  }
  fractions (phi, c, f);
  fractions_cleanup (c, f,
		     smin = 1.e-14, cmin = 1.e-14);
}
#else // convex
void p_shape (scalar c, face vector f, double r)
{
  vertex scalar phi[];
  foreach_vertex() {
    phi[] = sq(r) - sq(x) - sq(y) - sq(z);
  }
  fractions (phi, c, f);
  fractions_cleanup (c, f,
		     smin = 1.e-14, cmin = 1.e-14);
}
#endif // GEOM

#if GEOM

    In this case, the poisson problem requires the homogeneous equivalent of the boundary conditions imposed on the non-embedded boundaries of the domain. We therefore define a function for homogeneous Dirichlet condition as we are not using the dirichlet function to impose the boundary conditions for a on the domain boundaries.

    static double dirichlet_homogeneous_bc (Point point, Point neighbor,
					scalar s, void * data)
{
  return 0.;
}
#endif // GEOM

#if TREE

    When using TREE, we try to increase the accuracy of the restriction operation in pathological cases by defining the gradient of a at the center of the cell.

    void a_embed_gradient (Point point, scalar s, coord * g)
{
  g->x = (-2.*x)/(5.*(t + 1))*exact (t, x, y, z);
  g->y = (-2.*y)/(5.*(t + 1))*exact (t, x, y, z);
  g->z = (-2.*z)/(5.*(t + 1))*exact (t, x, y, z);
}
#endif // TREE

    Setup

    We define the scalar a for the temperature and the variable radius to track the evolution of the radius of the sphere, if necessary. We also record the statistics of the Poisson solver.

    scalar a[];
double radius;
mgstats s;

int lvl;

int main()
{

    The domain is 1\times 1\times 1.

      origin (-L0/2., -L0/2., -L0/2.);

    We set the time step to respect the diffusive time step for the smallest mesh size considered and to minimize splitting errors.

      DT = 1.e-5;

    We set the tolerance and the Poisson solver.

      TOLERANCE = 1.e-6;
  NITERMAX  = 250; // For the initial iterations of cases with mesh adaptation

  for (lvl = 4; lvl <= 7; lvl++) { // minlevel = 2 (3.1pt/D, 3.93pt/D and 2.33pt/D)

    We initialize the grid.

        N = 1 << (lvl);
    init_grid (N);

    Finally, we initialize the value of radius.

        radius = 0.392;

    run ();
  }
}

    Initial conditions

    event init (i = 0)
{

    We use “third-order” face flux interpolation.

    #if ORDER2
  a.third = false;
#else
  a.third = true;
#endif // ORDER2

#if TREE

    When using TREE and in the presence of embedded boundaries, we also modify the prolongation an restriction operators for a. The prolongation and restriction operators for the volume and face fractions cs and fs are modified in the event metric.

      a.refine = a.prolongation = refine_embed_linear;
  a.restriction = restriction_embed_linear;

    We also define the gradient of a at the full cell center of cut-cells.

      a.embed_gradient = a_embed_gradient;
#endif // TREE

    We initialize the embedded boundary.

    #if TREE

    When using TREE, we refine the mesh around the embedded boundary.

      astats ss;
  int ic = 0;
  do {
    ic++;
    p_shape (cs, fs, radius);
    ss = adapt_wavelet ({cs}, (double[]) {1.e-30},
			maxlevel = (lvl), minlevel = (lvl) - 2);
  } while ((ss.nf || ss.nc) && ic < 100);
#endif // TREE

  p_shape (cs, fs, radius);

    We also initialize the volume fraction at the previous timestep csm1.

      trash ({csm1});
  foreach()
    csm1[] = cs[];
  restriction ({csm1}); // Since restriction/prolongation depend on csm1

    We initialize a.

      foreach()
    a[] = cs[] > 0. ? exact (0., x, y, z) : nodata;

    We define the boundary conditions for a on the domain boundary, if necessary.

    #if GEOM
  a[left]   = exact (t + dt, x - Delta/2., y, z);
  a.boundary_homogeneous[left] = dirichlet_homogeneous_bc;
  a[right]  = exact (t + dt, x + Delta/2., y, z);
  a.boundary_homogeneous[right] = dirichlet_homogeneous_bc;
  a[top]    = exact (t + dt, x, y + Delta/2., z);
  a.boundary_homogeneous[top] = dirichlet_homogeneous_bc;
  a[bottom] = exact (t + dt, x, y - Delta/2., z);
  a.boundary_homogeneous[bottom] = dirichlet_homogeneous_bc;
  a[front]  = exact (t + dt, x, y, z + Delta/2.);
  a.boundary_homogeneous[front] = dirichlet_homogeneous_bc;
  a[back]   = exact (t + dt, x, y, z - Delta/2.);
  a.boundary_homogeneous[back] = dirichlet_homogeneous_bc;
#endif // GEOM

#if DIRICHLET
  a[embed] = dirichlet (exact (t + dt, x, y, z));
#else
  a[embed] = neumann (exact_gradient (point, t + dt, x, y, z));
#endif
}

    Outputs

    scalar e[], ep[], ef[];
double eavg  = 0., emax  = 0.;
double epavg = 0., epmax = 0.;
double efavg = 0., efmax = 0.;

event init (i = 0)
{
  eavg  = 0., emax  = 0.;
  epavg = 0., epmax = 0.;
  efavg = 0., efmax = 0.;
}

event error (i = 1; i++)
{

    The total (e), partial cells (ep) and full cells (ef) errors fields and their norms are computed.

      foreach() {
    if (cs[] == 0.)
      ep[] = ef[] = e[] = nodata;
    else {
      e[]  = fabs (a[] - exact (t, x, y, z));
      ep[] = cs[] < 1. ? e[] : nodata;
      ef[] = cs[] >= 1. ? e[] : nodata;
    }
  }
  norm n = normf (e), np = normf (ep), nf = normf (ef);

  // All cells
  eavg  += dt*n.avg;
  emax  += dt*n.max;
  // Partial cells
  epavg += dt*np.avg;
  epmax += dt*np.max;
  // Full cells
  efavg += dt*nf.avg;
  efmax += dt*nf.max;
}

    We set the final time small enough to make sure that when using the expanding domain \Omega_3, the embedded boundaries do not overflow outside of the computational domain.

    event logfile (t = 0.1)
{

    The total (e), partial cells (ep) and full cells (ef) errors are saved.

      fprintf (stderr, "%d %.3g %.3g %.3g %.3g %.3g %.3g %d %d %d %g %g\n",
	   N,
	   (eavg/(t + SEPS)),  (emax/(t + SEPS)),
	   (epavg/(t + SEPS)), (epmax/(t + SEPS)),
	   (efavg/(t + SEPS)), (efmax/(t + SEPS)),
	   s.i, s.nrelax,
	   i, t, dt);
  fflush (stderr);

    The solution and the error are displayed using bview.

      if (lvl == 6) {
    clear ();
    view (fov = 32.2073, quat = {-0.309062,0.243301,0.0992085,0.914026},
	  tx = 0.0122768, ty = 0.0604286, bg = {1,1,1},
	  width = 800, height = 800);

    box ();
    draw_vof ("cs", "fs");
    save ("vof.png");

    box ();
    draw_vof ("cs", "fs", color = "e");
    save ("e.png");

    cells (n = {0, 0, 1}, alpha = -radius/2.);
#if GEOM
    draw_vof ("cs", "fs", color = "e");
#endif // GEOM
    squares ("e", n = {0, 1, 0}, alpha = -radius/2., spread = -1);
    save ("e-slice.png");

    box ();
    draw_vof ("cs", "fs", color = "a");
    save ("a.png");

    cells (n = {0, 0, 1}, alpha = -radius/2.);
#if GEOM
    draw_vof ("cs", "fs", color = "a");
#endif // GEOM
    squares ("a", n = {0, 1, 0}, alpha = -radius/2., spread = -1);
    save ("a-slice.png");
  }
}

    Time integration

    event integration (i++)
{
  dt = dtnext (DT);

#if EXPANDING || SHRINKING

    We make sure that the time step verifies the CFL condition for the displacement of the embedded boundary.

      foreach(reduction(min:dt)) {
    if (cs[] > 0. && cs[] < 1.) {

      // Local maximum velocity
      double umax = 1; // u = ((radius +/- dt) - radius)/dt;

      // Non-restrictive timestep (independent of *cs* and *fs*)
      double dte = Delta/(fabs (umax) + SEPS);
      if (dte < dt)
	dt = dte;
    }
  }

    We then store the previous volume fraction in csm1.

      trash ({csm1});
  foreach()
    csm1[] = cs[];
  restriction ({csm1}); // Since restriction/prolongation depend on csm1

    We finally modify the shape of the embedded boundary.

    #if EXPANDING
  radius += dt;
#elif SHRINKING
  radius -= dt;
#endif // EXPANDING && SHRINKING
  p_shape (cs, fs, radius);

    When considering the expanding domain \Omega_3, as the radius of the sphere increases, emerged cells appear that have no time history. We therefore initialize the values of a in these newly emerged cells by extrapolating their values in the direction of the normal to the embedded boundary, while making sure not to use any values from other newly emerged cells by setting the flag emerged to false. This is a necessary step as these values are used in the rhs of the diffusion equation (i.e. it is not just an initial guess).

      emerged = false;

  foreach() {
    if (cs[] <= 0.) // Solid cells
      a[] = nodata;
    else if (cs[] > 0. && csm1[] <= 0.) { // Emerged cells

      assert (cs[] < 1.);

      // Cell centroid, barycenter and normal of the embedded fragment
      coord c = {0., 0., 0.}, b, n;
      embed_geometry (point, &b, &n);

      // Boundary condition on the embedded boundary
      bool dirichlet = true;
      double ab = (a.boundary[embed] (point, point, a, &dirichlet));
      if (!dirichlet) {
	double coef = 0.;
	ab = neumann_scalar (point, a, cs, n, b, ab, &coef);
	// a[] is undefined here so we use the average over the neighbors
	// ab += coef*a[];
	int navg = 0;
	double aavg = 0.;
	foreach_neighbor(1)
	  if (cs[] > 0. && (emerged || csm1[] > 0.)) {
	    navg += 1;
	    aavg += a[];
	  }
	ab += coef*(aavg/(navg + SEPS));
      }

      // Emerged cell value at time t
#if EXTRAPOLATE == 1
      a[] = exact (t, x, y, z);
#else // 0
      a[] = embed_extrapolate (point, a, cs, n, c, ab);
#endif // EXTRAPOLATE
    }
  }

    Before using the boundary function, we set the emerged flag to true to indicate that all emerged cells have been updated and can now be used.

      emerged = true;
#endif // EXPANDING || SHRINKING

    We define the right hand-side r at time t on the new geometry, using the coordinates of the barycenter of the cut cell (xc,yc,zc), which is calculated from the cell and surface fractions.

    Note here that we don’t multiply r by cs as this will done in mydiffusion.h.

      scalar r[];

#if TREE

    In theory for TREE, we should also use embed-specific prolongation and restriction operators for r. However, r is only used to compute the residual in leaf cells and its stencil is never accessed. Furtheremore, and more importantly, if a res variable is not given as a parameter of the poisson function (which is the case here), than the prolongation and restriction operators for the res variable used in mg_solve are copied from those of r. However, for the multigrid solver to work properly, the prolongation and restriction operators for the res variable should be similar to the multigrid prolongation and restriction operators. We therefore use the default operators for r here.

      /* r.refine = r.prolongation = refine_embed_linear; */
  /* r.restriction = restriction_embed_linear; */
#endif // TREE

  foreach() {
    double xc = x, yc = y, zc = z;
    if (cs[] > 0. && cs[] < 1.) {
      coord n = facet_normal (point, cs, fs), p;
      double alpha = plane_alpha (cs[], n);
      plane_center (n, alpha, cs[], &p); // Different from line_area_center
      xc += p.x*Delta, yc += p.y*Delta, zc += p.z*Delta;
    }
    r[] = f (t, xc, yc, zc);
  }

    We define a unity diffusion coefficient, accounting for the metric.

      face vector D = fm;

    We then use the diffusion solver to advance the solution to time t+dt.

      s = diffusion (a, dt, D, r = r);
  mgp = mgpf = mgu = s;
}

    Mesh adaptation

    #if TREE
event adapt (i++)
{

    We refine the mesh around the embedded boundary.

      adapt_wavelet ({cs}, (double[]) {1.e-30},
		 maxlevel = (lvl), minlevel = (lvl) - 2);
  fractions_cleanup (cs, fs,
		     smin = 1.e-14, cmin = 1.e-14);
}
#endif // TREE

    Results

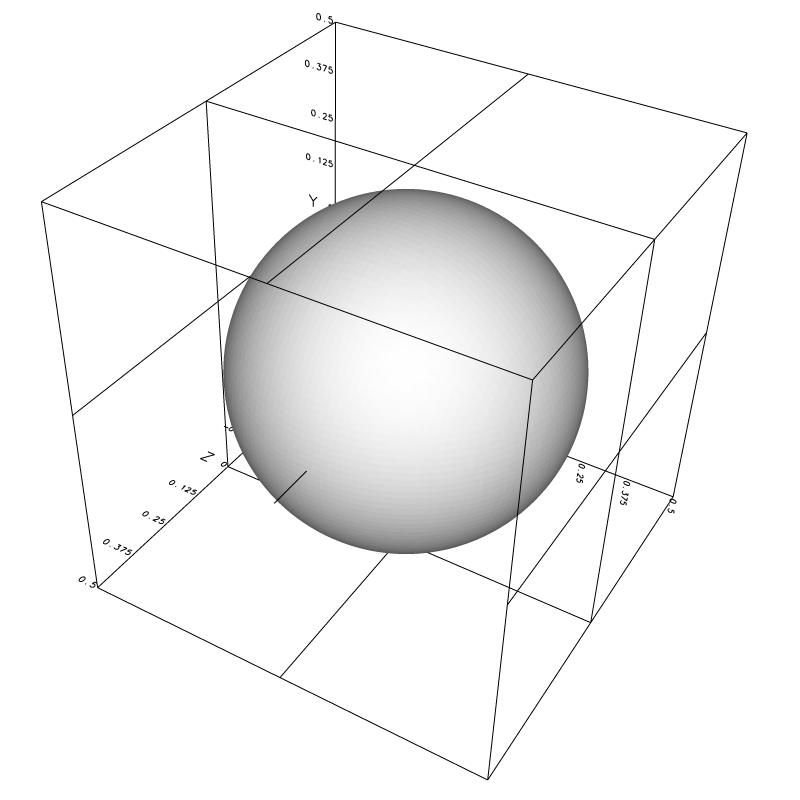

    Embedded boundaries for l=6

    Embedded boundaries for l=6

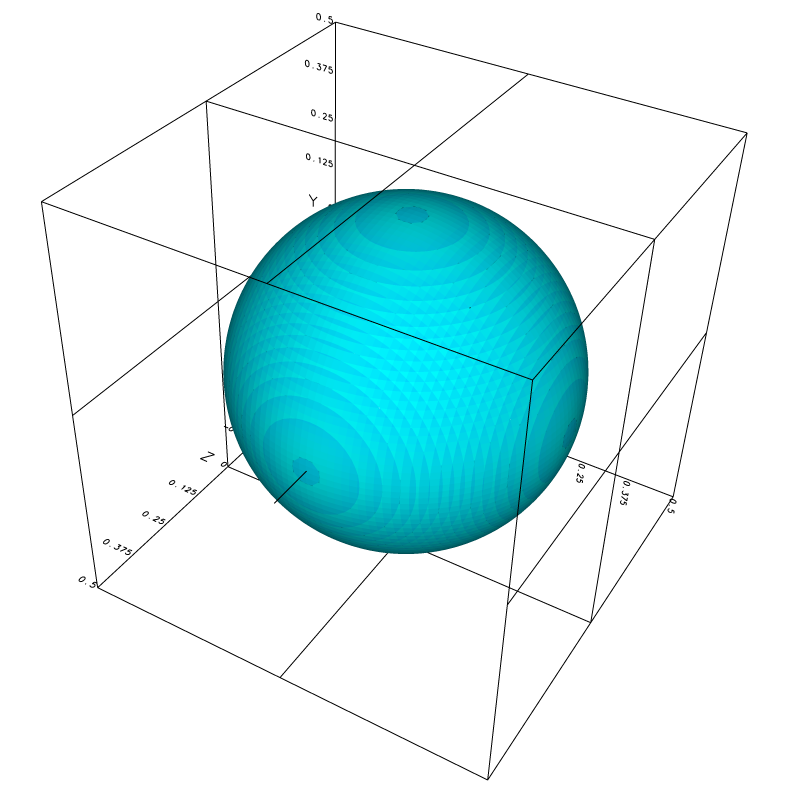

    Solution for l=6

    Solution for l=6

    Solution for l=6

    Solution for l=6

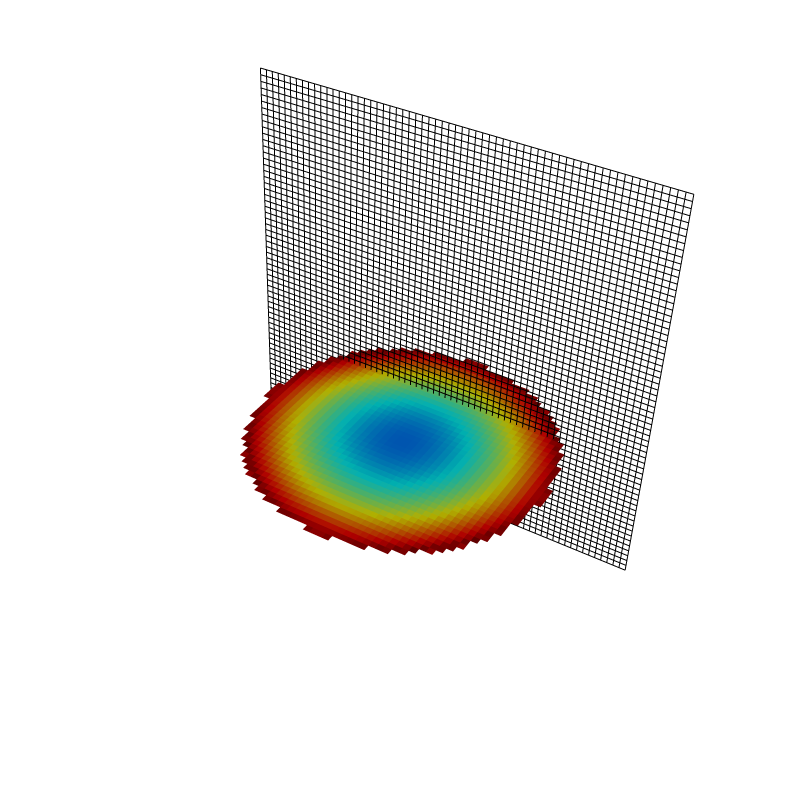

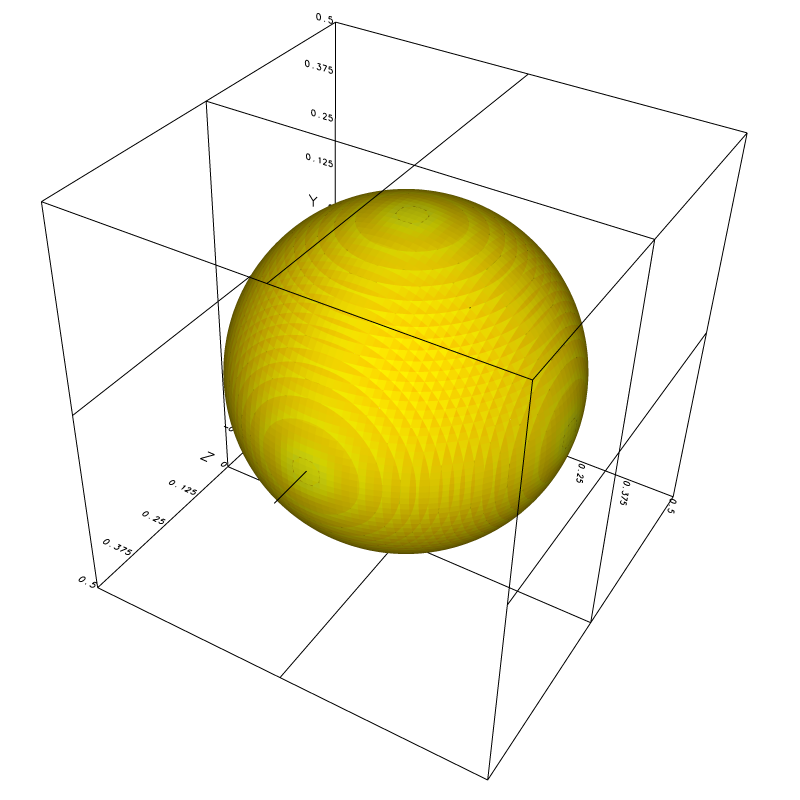

    Error for l=6

    Error for l=6

    Error for l=6

    Error for l=6

    Errors

    set terminal svg font ",16"
set key bottom left spacing 1.1
set xtics 4,4,512
set grid ytics
set ytics format "%.0e" 1.e-12,100,1.e2
set xlabel 'N'
set ylabel '||error||_{1}'
set xrange [8:256]
set yrange [1.e-10:1.e-2]
set logscale
plot 'log' u 1:4 w p ps 1.25 pt 7 lc rgb "black" t 'cut-cells', \
     ''    u 1:6 w p ps 1.25 pt 5 lc rgb "blue" t 'full cells', \
     ''    u 1:2 w p ps 1.25 pt 2 lc rgb "red" t 'all cells'
    Average error convergence (script)

    Average error convergence (script)

    set ylabel '||error||_{inf}'
plot '' u 1:5 w p ps 1.25 pt 7 lc rgb "black" t 'cut-cells', \
     '' u 1:7 w p ps 1.25 pt 5 lc rgb "blue" t 'full cells', \
     '' u 1:3 w p ps 1.25 pt 2 lc rgb "red" t 'all cells'
    Maximum error convergence (script)

    Maximum error convergence (script)

    Order of convergence

    Schwarz et al., 2006 determined the following estimates for the error of the solution of the Poisson problem:

    • for full cells: \displaystyle \mathrm{err}_f \sim \Delta^2

    • for cut-cells: \displaystyle \mathrm{err}_p \sim \Delta^2

    By choosing a timestep DT small enough to minimize splitting errors, we recover the expected orders of convergence. Note that when using mesh adaptation, the order of convergence of the error is determined by the order of the prolongataion/refinement functions, which are second-order accurate in Basilisk. However, in the complex “convex” geometry presented here, the restriction operation requires the user to input an embed_gradient to maintain second-order accuracy. Furthermore, for the case where the isotropic expansion of the sphere uncovers emerged cells, neighboring emerged cells are likely to appear simultaneously. In this case, the number of available cells in the stencil of these emerged cells is too small to use a second-order extrapolation and a first-order extrapolation is used instead.

    reset
set terminal svg font ",16"
set key bottom right spacing 1.1
set xtics 4,4,256
set ytics -10,1,10
set grid ytics
set xlabel 'N'
set ylabel 'Order of ||error||_{1}'
set xrange [8:256]
set yrange [-4:6]
set logscale x

# Asymptotic order of convergence

ftitle(b) = sprintf(", asymptotic order n=%4.2f", -b);
Nmin = log(64);

f1(x) = a1 + b1*x; # cut-cells
f2(x) = a2 + b2*x; # full cells
f3(x) = a3 + b3*x; # all cells

fit [Nmin:*][*:*] f1(x) '< sort -k 1,1n log | awk "!/#/{print }"' u (log($1)):(log($4)) via a1,b1; # cut-cells
fit [Nmin:*][*:*] f2(x) '< sort -k 1,1n log | awk "!/#/{print }"' u (log($1)):(log($6)) via a2,b2; # full-cells
fit [Nmin:*][*:*] f3(x) '< sort -k 1,1n log | awk "!/#/{print }"' u (log($1)):(log($2)) via a3,b3; # all cells

plot '< sort -k 1,1n log | awk "!/#/{print }" | awk -f ../data/order.awk' u 1:4 w lp ps 1.25 pt 7 lc rgb "black" t 'cut-cells'.ftitle(b1), \
     '< sort -k 1,1n log | awk "!/#/{print }" | awk -f ../data/order.awk' u 1:6 w lp ps 1.25 pt 5 lc rgb "blue" t 'full cells'.ftitle(b2), \
     '< sort -k 1,1n log | awk "!/#/{print }" | awk -f ../data/order.awk' u 1:2 w lp ps 1.25 pt 2 lc rgb "red" t 'all cells'.ftitle(b3)
    Order of convergence of the average error (script)

    Order of convergence of the average error (script)

    set ylabel 'Order of ||error||_{inf}'

# Asymptotic order of convergence

fit [Nmin:*][*:*] f1(x) '< sort -k 1,1n log | awk "!/#/{print }"' u (log($1)):(log($5)) via a1,b1; # cut-cells
fit [Nmin:*][*:*] f2(x) '< sort -k 1,1n log | awk "!/#/{print }"' u (log($1)):(log($7)) via a2,b2; # full-cells
fit [Nmin:*][*:*] f3(x) '< sort -k 1,1n log | awk "!/#/{print }"' u (log($1)):(log($3)) via a3,b3; # all cells

plot '< sort -k 1,1n log | awk "!/#/{print }" | awk -f ../data/order.awk' u 1:5 w lp ps 1.25 pt 7 lc rgb "black" t 'cut-cells'.ftitle(b1), \
     '< sort -k 1,1n log | awk "!/#/{print }" | awk -f ../data/order.awk' u 1:7 w lp ps 1.25 pt 5 lc rgb "blue" t 'full cells'.ftitle(b2), \
     '< sort -k 1,1n log | awk "!/#/{print }" | awk -f ../data/order.awk' u 1:3 w lp ps 1.25 pt 2 lc rgb "red" t 'all cells'.ftitle(b3)
    Order of convergence of the maximum error (script)

    Order of convergence of the maximum error (script)

    References

    [schwartz2006]

    Peter Schwartz, Michael Barad, Phillip Colella, and Terry Ligocki. A cartesian grid embedded boundary method for the heat equation and poisson’s equation in three dimensions. Journal of Computational Physics, 211(2):531–550, 2006. [ .pdf ]
