    Rain in saint-venant : Torrential test case with rain and Darcy

    In this example, we reproduce the MacDonald benchmark^{[1]} with rain. We test the friction and the rain in a torrential flow. The leading equations can be written as :

    \displaystyle \begin{array}{cc} \partial_t h + \partial_x q = R(x,t) \\ \partial_t q + \partial_x \left(\frac{q^2}{h}+ \frac{1}{2} g h^2 \right) = -gh (S_0 + S_f) \end{array}

    S_0 is the slope, S_f is the friction term in its kinematic form and R(x,t) the rain intensity.

    Declarations

    We call the saint venant solver and we add the Darcy friction term.

    #include "grid/cartesian1D.h"
    #include "saint-venant.h"
    #include "saintvenant/darcy.h"
    #include "saintvenant/rain.h"

    int LEVEL;

    scalar e[];
    double e1 = 0., e2 = 0., emax = 0.;
    int ne = 0;
    double pause, tmax, q0 = 2.5, z0, h0, tb = 300, intens = 1e-3 ;

    // Q is not cst
    double q(double x){
      return q0+x*intens;
    }

    // Analytical solution for h and dh/dx
    double hex(double x){
      return pow(4/G,1/3.)*(1 - 0.2*exp(-36*pow(-0.5 + x/1000.,2)));
    }
    double dhex(double x){
      return pow(4/G,1/3.)*0.0144*exp(-36*sq(-0.5 + x/1000.))*(-0.5 + x/1000.);
    }

    // Darcy friction term in kinematic formulation
    double sf(double x){
      return  -f/(8*G)*q(x)*q(x)/pow(hex(x),3);
    }

    // Z and dz/dx
    double dzex(double x) {
      return (q(x)*q(x)/(G*pow(hex(x),3))-1)*dhex(x)-2*q(x)*intens/(G*sq(hex(x)))+sf(x);
    }
    double zex(double x, double z) {
      double dx = L0/N;  return z + dx/3.*(dzex(x-dx)+dzex(x-0.5*dx)+dzex(x));
    }

    Parameters

    Definition of parameters and calling of the saint venant subroutine run().

    int main()
    {
      f = 0.065;
      pause=0.2;
      L0 = 1000.;
      X0 = 0;
      G = 9.81;
      tmax = 400;
      for( LEVEL = 6; LEVEL <= 10; LEVEL++){
        e1 = e2 = emax = 0.;
        ne = 0;
        N = 1 << LEVEL;
        run();
        fprintf (stderr, "%d %g %g %g\n", N, e1/ne, sqrt(e2)/ne, emax);
      }
    }

    Boundary condition

    h[left] = dirichlet(max(hex(0),0));
    eta[left] =  dirichlet(max(hex(0)+zb[],zb[]));
    u.n[left] = dirichlet(max(q0/hex(0),0));

    h[right] = dirichlet(max(hex(1000),0));
    eta[right] =  dirichlet(max(hex(1000)+zb[],zb[]));
    u.n[right] = dirichlet(max(q(L0)/hex(1000),0));

    Initial conditions

    event init (i = 0)
    {
      DT = 1e-2;
      z0=0;
      foreach(){
        rain[] = intens;
        zb[] = zex(x,z0);
        z0=zb[];
        u.x[] = 0;
        h[]=0;
      }
      boundary(all);
    }

    Computing error

    event error (i++; t<=tmax) {
      foreach()
          e[] = (h[] - hex(x));
      norm no = normf (e);
      if(t > tb){
        e1 += no.avg;
        e2 += no.rms*no.rms;
        ne++;
        if (no.max > emax)
          emax = no.max;
      }
       if( N == 256){
        static FILE * fp1 = fopen("ErrorN512.dat","w");
        fprintf(fp1,"%g \t %g \t %g \t %g \n",t,no.avg,no.rms,no.max);
      }
    }

    Gnuplot output

    We can use gnuplot to produce an animation of the water surface.

    /*
    event plot ( t <= tmax; t += 15 ) {
      if( N == 64 || N == 1024 ){
        printf("set title 'Manning friction fluvial ----- t= %.3g , N = %i '\n"
    	   "p[%g:%g][-60:1]  '-' u 1:($2+$4) t'free surface' w p pt 1,"
    	   "'' u 1:4 t'topo' w l lt 4,"
    	   "'' u 1:5 t'Analytical' w l lt -1 \n",t,N,X0,X0+L0);

        foreach()
          printf (" %g %g %g %g %g %g\n", x, h[], u.x[], zb[], hex(x)+zb[], t);

        printf ("e\n"
    	    "pause %.4g \n\n",pause);
      }
    }
    */

    Print the water profile along the channel at final time.

    event printprofile ( t = tmax-1){
        char name[100];
        FILE * fp;
        sprintf(name,"profil-%i.dat",N);
        fp=fopen(name,"w");
        foreach()
          fprintf(fp,"%g  \t %g  \t %g \t %g \t %g \t %g  \t %g \n"
    	      ,x,h[],zb[],hex(x),u.x[],u.x[]*h[], h[] > dry ? u.x[]/(sqrt(G*h[])) : 0);
        fclose(fp);
    }

    Results

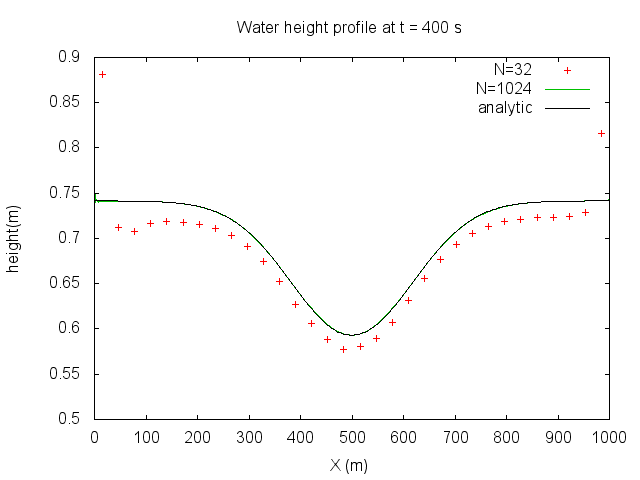

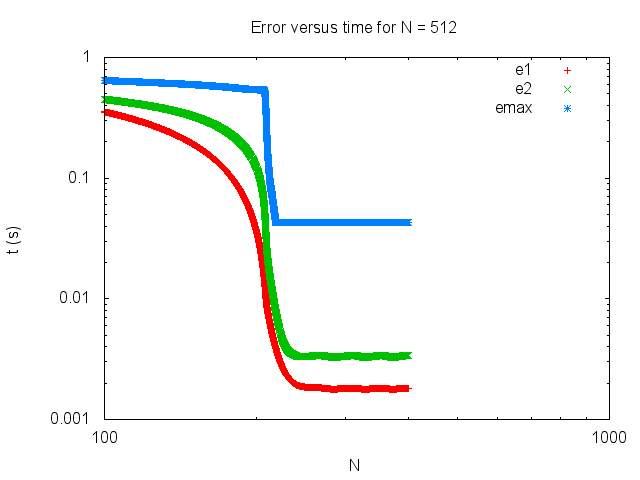

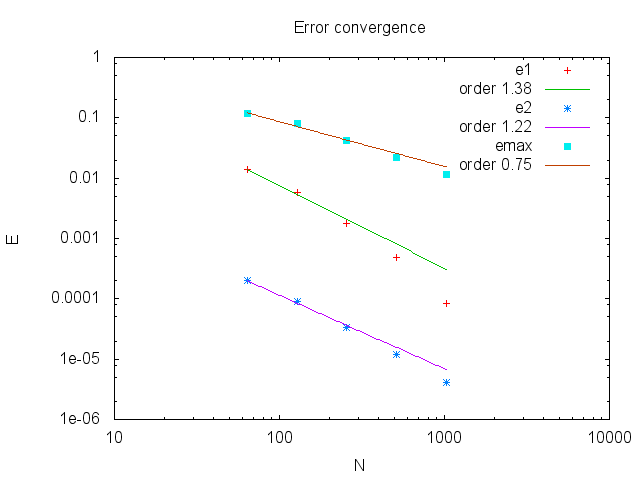

    Error convergence Error time Water depth profiles

    References

    [1] I. MacDonald, M. Baines, N. Nichols, and P. G. Samuels, “Analytic Benchmark Solutions for Open-Channel Flows,” no. November, pp. 1041–1045, 1997.
