# sandbox/easystab/stab2014/vibrating_string_convergence_time_euler_backward.m

# Convergence study of the time step with a backward Euler scheme

Done by Alexandre Bilczewski and Fadil Boodoo. In this work, we do a convergence study of the time step of the code vibrating_string.m The scheme used for the march in time is Backward Euler, using the code of sandbox/easystab/stab2014/vibrating_string_forward_backward_euler.m

clear all; clf

% parameters
N=101; % number of gridpoints
L=2*pi; % domain length
c=1; % wave velocity
% dt=0.5; % time step
tmax=20; % final time

%Loop in time step
for i=1:30
dt=i/10 ;

% differentiation matrices
scale=-2/L;
[x,DM] = chebdif(N,2);
dx=DM(:,:,1)*scale;
dxx=DM(:,:,2)*scale^2;
x=(x-1)/scale;
Z=zeros(N,N); I=eye(N);
II=eye(2*N);

% system matrices
E=[I,Z; Z,I];
A=[Z,c^2*dxx; I, Z];

% locations in the state
v=1:N;
f=N+1:2*N;

% boundary conditions
loc=[f(1),f(N)];
A(loc,:)=0;
E(loc,:)=II(loc,:);

% march in time matrix
d=(E-A*dt);
M=inv(d)*E;

% initial condition
q=[zeros(N,1); sin(pi*x/L)];

% marching loop
tvec=dt:dt:tmax;
Nt=length(tvec);
e=zeros(Nt,1);

for ind=1:Nt
q=M*q; % one step forward
e(ind)=q(f((N+1)/2)); % store center point

end

% time evolution of central point
subplot(1,2,1);
Ttheo=2*L/c;
tt=linspace(0,tmax,500);
etheo=cos(2*pi*tt/Ttheo);

% calculation of the error
etheoNt=cos(2*pi*tvec/Ttheo);
eetheo = etheoNt-e.' ;
dtstock(i)=dt;
error(i)=max(eetheo);

end

% plot the error
xx2=dtstock;
plot(dtstock,error,'b.-');

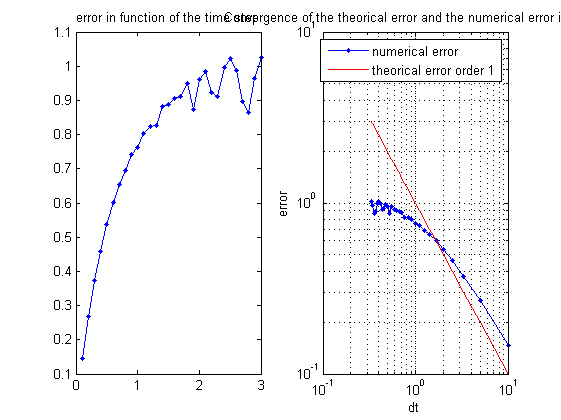

title('error in function of the time step');
subplot(1,2,2);

% comparison of the numerical error and the theorical error
xx=1./dtstock;
loglog(xx,error,'b.-',xx,xx.^-1,'r');
legend('numerical error','theorical error order 1'); title('Convergence of the theorical error and the numerical error in loglog')
grid on
xlabel('dt'); ylabel('error');
