two_vibrating_strings_one_mass.m

Vibrating string
System matrices
Boundary conditions
Initial condition
March in time
Validation

Vibrating string

We use the code of the vibrating string and adapt the matrix to add one string and one mass.

To run the code you may need Chebychev differentiation matrices, available here

clear all; clf

% parameters
N=100; % number of gridpoints per string
L=10; % strings length
c1=0.3; % wave velocity string 1
c2=1; % wave velocity string 2
dt=0.1; % time step
tmax=60; % final time
mass=4; % mass
t1=0.2; %  string 1 tension
t2=1; %  string 2 tension

% differentiation matrices
scale=-2/L;
[x,DM] = chebdif(N,2);
dx=DM(:,:,1)*scale;
dxx=DM(:,:,2)*scale^2;
x=(x-1)/scale;
Z=zeros(N,N); ZZ=zeros(2*N,2*N);
I=eye(N); II=eye(2*N);I4=eye(4*N+2);

System matrices

each strings follows the same equation, v_t=c^2 f_{xx} and the mass follows its own equation, m v_t=-t_1 (\partial_x f_1)|_L + t_2 (\partial_x f_2)|_0. With, for each string and the mass, f_t=v .Thus the new array representation for the system is \displaystyle Eq_t=Aq with the state matrices E and A and the state q defined as \displaystyle \left( \begin{array}{cccccc} I & & & & & \\ & I & & & & \\ & & I & & & \\ & & & I & & \\ & & & & m & \\ & & & & & 1\\ \end{array}\right) \left(\begin{array}{c} v1_t \\ f1_t \\ v2_t \\ f2_t \\ vm_t \\ fm_t \\ \end{array}\right)= \left( \begin{array}{cc} 0 & c_{1}^2\partial_{xx} & 0 & 0 & 0 & 0 \\ I & 0 & 0 & 0 & 0 & 0\\ 0 & 0 & 0 & c_{2}^2\partial_{xx} & 0 & 0\\ 0 & 0 & I & 0 & 0 & 0\\ 0 & -t_1 \partial_x|_L & 0 & t_2 \partial_x|_0 & 0 & 0\\ 0 & 0 & 0 & 0 & 1 & 0\\ \end{array}\right) \left(\begin{array}{c} v1 \\ f1 \\ v2 \\ f2 \\ vm \\ fm \\ \end{array}\right)

% locations in the state
v1=1:N;
f1=N+1:2*N;
v2=2*N+1:3*N;
f2=3*N+1:4*N;
vm=4*N+1;
fm=4*N+2;

for i=1:3 % A loop is used to operate the validation on iterations 2 and 3.

    if i==2
       c1=1;c2=1;t1=1;t2=1;mass=0; %specific parameters for null mass validation
    elseif i==3
       c1=1;c2=1;t1=1;t2=1;mass=1000000; %specific parameters for infinite mass validation
    end

% system matrices
A1=[Z,c1^2*dxx; I, Z]; A2=[Z,c2^2*dxx; I, Z];
E=eye(fm);
E(vm,vm)=mass;
A=[A1,ZZ,ZZ(:,[1,2]) ; ...
    ZZ,A2,ZZ(:,[1,2]) ; ...
    Z(1,:),-t1*dx(N,:),Z(1,:),t2*dx(1,:),0,0 ; ...
    ZZ(1,:),ZZ(1,:),1,0];

Boundary conditions

We consider that the two strings are fixed at their extremity, f_1|_0=0=f_2|_L, and they are connected to the mass, f_1|_L=f_2|_0=f_m.

The boundary condition can thus be expressed Cq=0 with the state q and the constraint matrix C \displaystyle Cq=0=\begin{pmatrix} 0&I|_0&0&0&0&0\\ 0&I|_L&0&0&0&-1\\ 0&0&0&I|_0&0&-1\\ 0&0&0&I|_L&0&0\\ \end{pmatrix} \begin{pmatrix} v_1\\f_1\\v_2\\f_2\\vm\\fm \end{pmatrix},

% boundary conditions
loc=[f1(1),f1(N),f2(1),f2(N)];
E(loc,:)=0;
A(loc,:)=I4(loc,:);
A(f1(N),fm)=-1;
A(f2(1),fm)=-1;

Initial condition

At initial time we say here that the string is initially deformed as a sinus (this satisfies the boundary conditions), and that the velocity is zero.

% initial condition
if i==1
    q=[zeros(N,1) ; sin(pi*x/L) ; zeros(N,1) ; sin(pi*x/L) ; 0 ; 0];
elseif i ==2
    q=[zeros(N,1) ; sin(pi*x/L/2) ; zeros(N,1) ; sin(pi*(x+L)/L/2) ; 0 ; 0];% initial conditions for null mass
elseif i==3
    q=[zeros(N,1) ; sin(pi*x/L) ; zeros(N,1) ; sin(pi*x/L) ; 0 ; 0];% initial conditions for infinite mass
end

March in time

% march in time matrix
M=(E-A*dt/2)\(E+A*dt/2);

% unified parameters
f=[f1,f2];
v=[v1,v2];
x2=[x;L+x];

% marching loop
tvec=dt:dt:tmax;
Nt=length(tvec);
for ind=1:Nt
    q=M*q; % one step forward

    % plotting

    if i==1 % plotting general case
    plot(x2,q(f),'b',x2,q(v),'r--',L,q(fm),'blacko');
    axis([0,2*L,-2,2]);xlabel('x');ylabel('f');
    title('strings and mass movements');

    elseif i==2 % plotting validation for null mass
    figure(2);subplot(211);
    plot(x2,q(f),'.b',x,cos(c1*pi/L/2*ind/Nt*tmax)*sin(x*pi/L/2),'r',x+L,cos(c1*pi/L/2*ind/Nt*tmax)*sin((x+L)*pi/L/2),'r');
    title('2 identical strings and a null mass');
    axis([0,2*L,-1.2,1.2]);

    else % ploting validaiton for infinite mass
    figure(2);subplot(212);
    plot(x2,q(f),'.b',x,cos(c1*pi/L*ind/Nt*tmax)*sin(x*pi/L),'r',x+L,cos(c1*pi/L*ind/Nt*tmax)*sin(x*pi/L),'r');
    title('2 identical strings and an infinite mass');
    axis([0,2*L,-1.2,1.2]);
    end
    drawnow

end

% Legends are displayed after calculation as they strongly slow down dynamical graphics
    if i==1
        figure(1);legend('position','speed');
    elseif i==2
        figure(2);subplot(211);legend('numerical solution','theorical solution','location','ne');
    else
        legend('numerical solution','theorical solution','location','s');
    end
end

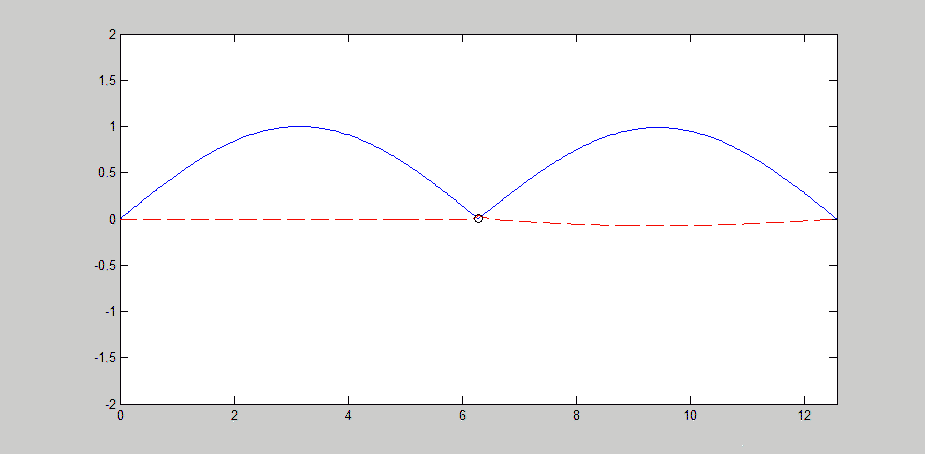

Here is the final result of the strings position (blue) and speed (red) with 2 different strings

Validation

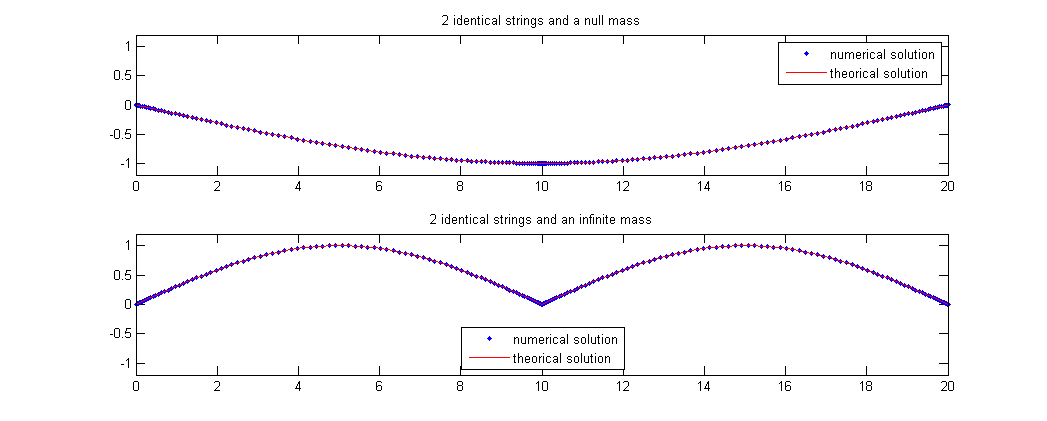

Null mass: We first test the code with a null mass and 2 identical strings ( velocity and tension ). We expect to find the same behaviour than a single 2L length string. We know the theorical solution for mode 1 with homogenous Dirichlet conditions and adapted initial conditions : \displaystyle f(x,t)=sin(\pi x/L)*cos(ct \pi /L) We plot the solution at tmax below
Infinite mass: Now we test with an infinite mass. It is supposed to behave as a fixed point, thus we should see 2 independant L length strings vibrating. In mode 1 with adapted boundary and initial conditions, each one should follow this equation \displaystyle f(x,t)=sin(\pi x/2L)*cos(ct \pi /2L) Plotting at tmax :
