    Displaying the two first eigenmodes of the free surface gravity wave

    Here is a contribution to the free_surface_gravity_particles code : free_surface_gravity_particles.m

    In this code we check that the first and second eigenmodes of this system correspond to waves propagating in opposite directions. Indeed looking to the theory theory of the eigen values of the surface waves –> look at the Validation part we have the eigenvalue s : \displaystyle s^2=-\alpha g \tanh(\alpha L) which shows that we have two purely imaginary solutions for s, one positive and one negative. The wave velocity is equal to minus the imaginary part of s divided by the wavenumber, so we see that we have two waves, one going to the right and one going to the left, and both with celerity \displaystyle c=\sqrt{\frac{g \tanh(\alpha L)}{\alpha}}

    We take the code that computes the eigenmodes for free surface waves free_surface_gravity.m and we visualize the flow motion of the two first eigenmodes by expanding the solution to physical space and advecting tracer particles, like we did in a simple case in particles.m.

    clear all; clf; n=100; % number of gridpoints alpha=1; % wavenumber in x L=2; % Fluid height in y rho=1; % fluid density mu=0.0001; % fuid viscosity g=1; % gravity % differentiation matrices scale=-2/L; [y,DM] = chebdif(n,2); D=DM(:,:,1)scale; DD=DM(:,:,2)scale^2; y=(y-1)/scale; I=eye(n); Z=zeros(n,n); % renaming the matrices dy=D; dyy=DD; dx=ialphaI; dxx=-alpha^2I; Delta=dxx+dyy; % System matrices A=[muDelta, Z, -dx, Z(:,1); … Z, muDelta, -dy, Z(:,1); … dx, dy, Z, Z(:,1); … Z(1,:),I(n,:),Z(1,:),0]; E=blkdiag(rhoI,rho*I,Z,1); % boundary conditions loc=[1,n,n+1,2*n]; C=[I(1,:),Z(1,:),Z(1,:),0; … Z(1,:),I(1,:),Z(1,:),0; … Z(1,:),Z(1,:),-I(n,:),rho*g; … dy(n,:),dx(n,:),Z(1,:),0]; E(loc,:)=0; A(loc,:)=C; % compute eigenmodes [U,S]=eig(A,E); s=diag(S); [t,o]=sort(-real(s)); s=s(o); U=U(:,o); rem=abs(s)>1000; s(rem)=[]; U(:,rem)=[];

    The animation

    We show the position of the free surface stored in q(eta), and the particles are initialy set as a mesh, and stretched in y to fit with the initial position of the free surface for the top prticles.

    %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

    % particle animation of the eigenmodes

    %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

    % parameters first mode
    nper=1 % number of periods of oscillation
    nt=30 % number of time steps per period
    nx=40 % number of points in x
    modesel=1; % which more do animate

    % select the eigenmode
    u=1:n; v=u+n; p=v+n; eta=3*n+1;
    q=U(:,modesel);
    lambda=s(modesel);

    % The time and x extent
    tvec=linspace(0,nper*2*pi/abs(lambda),nper*nt);
    dt=tvec(2)-tvec(1);
    Lx=2*pi/alpha;
    x=linspace(0,Lx,nx);

    % scale mode amplitude
    q=0.05*q/abs(q(eta));

    % initialize tracer particles
    [px,py]=meshgrid(linspace(0,Lx,60),linspace(0,L,30));
    py=py.*(1+2*real(exp(lambda*tvec(1))*q(eta)*exp(i*alpha*px))/L);
    px=px(:);py=py(:);
    figure(1)
    filename = 'free_surface_gravity_particles_mode1.gif';

    % time loop
    for ind=1:nper*nt


    Expand the solution to physical space

    % expand mode to physical space
    qq=2*real(exp(lambda*tvec(ind))*q*exp(i*alpha*x));


    Interpolation of the particle positions

    % compute velocity at position of particles

    % plot pressure
    surf(x,y,qq(p,:)-10,'facealpha',0.3); view(2); shading interp; hold on

    % plot free surface
    plot(x,L+qq(eta,:),'k-',x,0*x+L,'k--'); hold on

    %%%% plot the particles
    plot(mod(px,Lx),py,'k.');
    pu=interp1(y,q(u),py);
    pv=interp1(y,q(v),py);


    The Taylor expansion

    % For particles above L, use Taylor expansion for velocity
    pu(py>L)=q(u(n))+q(eta)*dy(n,:)*q(u);
    pv(py>L)=q(v(n))+q(eta)*dy(n,:)*q(v);

    % expand to physical space
    puu=2*real(exp(lambda*tvec(ind))*pu.*exp(i*alpha*px));
    pvv=2*real(exp(lambda*tvec(ind))*pv.*exp(i*alpha*px));

    % advect particles
    px=px+puu*dt;
    py=py+pvv*dt;
    xlabel('x');
    ylabel('y');
    title('Free surface gravity - Mode 1');
    axis equal; axis([0,Lx,0,1.3*L]);
    grid off
    hold off
    drawnow

    frame = getframe(1);
    im = frame2im(frame);
    [imind,cm] = rgb2ind(im,256);
    if ind == 1;
    imwrite(imind,cm,filename,'gif', 'Loopcount',inf);
    else
    imwrite(imind,cm,filename,'gif','WriteMode','append');
    end

    end

    % parameters second mode
    nper=1 % number of periods of oscillation
    nt=30 % number of time steps per period
    nx=40 % number of points in x
    modesel=2; % which more do animate

    % select the eigenmode
    u=1:n; v=u+n; p=v+n; eta=3*n+1;
    q=U(:,modesel);
    lambda=s(modesel);

    % The time and x extent
    tvec=linspace(0,nper*2*pi/abs(lambda),nper*nt);
    dt=tvec(2)-tvec(1);
    Lx=2*pi/alpha;
    x=linspace(0,Lx,nx);

    % scale mode amplitude
    q=0.05*q/abs(q(eta));

    % initialize tracer particles
    [px,py]=meshgrid(linspace(0,Lx,60),linspace(0,L,30));
    py=py.*(1+2*real(exp(lambda*tvec(1))*q(eta)*exp(i*alpha*px))/L);
    px=px(:);py=py(:);
    figure(2)
    filename = 'free_surface_gravity_particles_mode2.gif';

    % time loop
    for ind=1:nper*nt


    Expand the solution to physical space

    % expand mode to physical space
    qq=2*real(exp(lambda*tvec(ind))*q*exp(i*alpha*x));

    % plot pressure
    surf(x,y,qq(p,:)-10,'facealpha',0.3); view(2); shading interp; hold on

    % plot free surface
    plot(x,L+qq(eta,:),'k-',x,0*x+L,'k--'); hold on

    %%%% plot the particles
    plot(mod(px,Lx),py,'k.');
    pu=interp1(y,q(u),py);
    pv=interp1(y,q(v),py);

    % For particles above L, use Taylor expansion for velocity
    pu(py>L)=q(u(n))+q(eta)*dy(n,:)*q(u);
    pv(py>L)=q(v(n))+q(eta)*dy(n,:)*q(v);

    % expand to physical space
    puu=2*real(exp(lambda*tvec(ind))*pu.*exp(i*alpha*px));
    pvv=2*real(exp(lambda*tvec(ind))*pv.*exp(i*alpha*px));

    % advect particles
    px=px+puu*dt;
    py=py+pvv*dt;
    xlabel('x');
    ylabel('y');
    title('Free surface gravity - Mode 2');
    axis equal; axis([0,Lx,0,1.3*L]);
    grid off
    hold off
    drawnow

    frame = getframe(1);
    im = frame2im(frame);
    [imind,cm] = rgb2ind(im,256);
    if ind == 1;
    imwrite(imind,cm,filename,'gif', 'Loopcount',inf);
    else
    imwrite(imind,cm,filename,'gif','WriteMode','append');
    end

    end

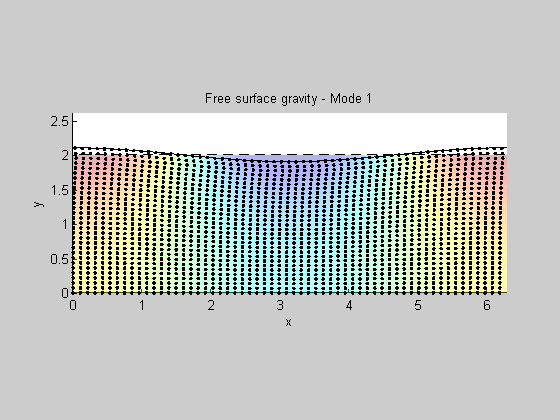

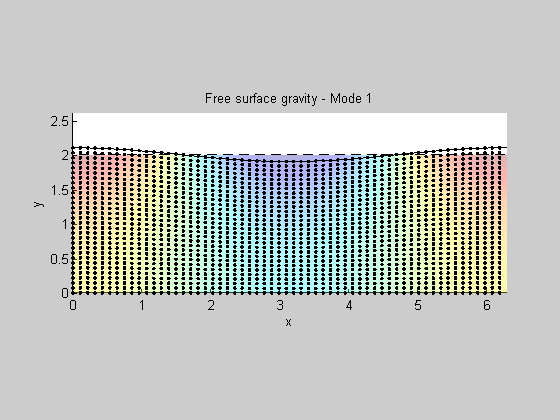

    Animation of the two modes

    Thus the first and second eigenmodes of this system correspond to waves propagating in opposite directions, confirming the theory. %}
