clear all; clf

% parameters
Nx=61; % number of gridpoints
Nt=60; % gridpoints in time
Lx=10; % domain length in x
Lt=4; % duration in time
xpos=5; % position of the final condition
mu=0.1;

% differentiation
[d.x,d.xx,d.wx,x]=dif1D('cheb',0,Lx,Nx);
[d.y,d.yy,d.wy,y]=dif1D('fd',0,Lt,Nt,5);
[D,l,X,Y,Z,I,NN]=dif2D(d,x,y);

% rename y to time derivative
D.t=D.y;
D.tt=D.yy;
t=y;
T=Y;

l.left=[l.cbl;l.left;l.ctl];
l.right=[l.cbr;l.right;l.ctr];
l.start=l.bot;
l.end=l.top;

% system matrices
A=D.t-mu*D.xx;
b=zeros(NN,1);

% initial guess
f0=exp(-((X-xpos)/1).^2);

% boundary conditions
loc=[l.start; l.right; l.left];
C=I(loc,:);

b(loc)=C*f0(:);
A(loc,:)=C;

f=A\b;
f=reshape(f,Nt,Nx);

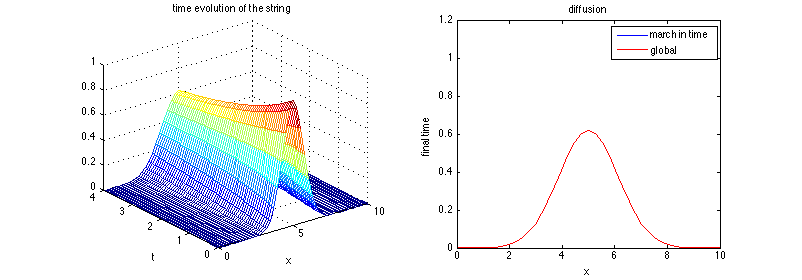

% show evolution of f
subplot(1,2,1);
mesh(X,T,f);
%surf(X,T,f); view(2)
xlabel('x'); ylabel('t');
title('time evolution of the string');

% march in time the initial condition
I=eye(Nx);
E=I;
A=mu*d.xx;

% boundary conditions
loc=[1;Nx];
E(loc,:)=0;
A(loc,:)=I(loc,:);

% march in time matrix
dt=t(2)-t(1);
Mm=(E-A*dt/2);
M=Mm\(E+A*dt/2);

% initial condition
q=f(1,:)';

% marching loop
for ind=1:(Nt-1); q=M*q; end

% plotting
subplot(1,2,2);
plot(x,q,'b',X(l.end),f(l.end),'r.-');
axis([0,Lx,0,1.2])
legend('march in time','global'); title('diffusion')
xlabel('x'); ylabel('final time');

%set(gcf,'paperpositionmode','auto');
%print('-dpng','-r80','diffusion_global.png');
