March in time of the vibrating string: f_t+Uf_x=\mu f_{xx}

Here, we studythe marching in time of the advection-diffusion equation. For solve it, we use the code build upon vibration_string

clear all; clf

% parameters
N=200; % number of gridpoints
L=20; % domain length
U=2; % wave velocity
dt=0.01; % time step
tmax=5; % final time
mu=0.2; %thermic conductivity
x0=L/6; %x-coordinate at initial time
l0=0.5; %length width
t0=0.5; %time for starting Dirac

% differentiation matrices
scale=-2/L;
[x,DM] = chebdif(N,2);
dx=DM(:,:,1)*scale;
dxx=DM(:,:,2)*scale^2;
x=(x-1)/scale;
Z=zeros(N,N); I=eye(N);

System matrices

Here we build the matrices that give the discretization of the equations. The equations is \displaystyle f_t+Uf_x=\mu f_{xx} This is an equation with a single derivative and a double derivative, we can write this equation in the following way \displaystyle f_t=-UD_xf+\mu D_xxF

Now, we can transform this equation in a linear system with the form \displaystyle Ef_{t}=Af

% system matrices
E=I;
A=-U*dx+mu*dxx;

% boundary conditions
E([1 N],:)=0;
A([1 N],:)=I([1 N],:);

March in time

Here we use the same method as vibrating_string.m.

% march in time matrix
M=(E-A*dt/2)\(E+A*dt/2);

% initial condition
q=(exp(-(x-x0).^2/(4*mu*t0)))/(2*sqrt(pi*mu*t0));
q0=q; %save of initial condition

% marching loop
tvec=dt:dt:tmax;
Nt=length(tvec);
e=zeros(Nt,1);


n1=1; %for 1st frame for gif
figure(1)
filename = 'advection-diffusion_marching_time.gif'; %name of gif
for ind=1:Nt
    t=ind*dt;
    q=M*q; % one step forward
    qt=(exp(-(x-U*t-x0).^2/(4*mu*(t0+t))))/(2*sqrt(pi*mu*(t0+t))); %analytical solution
    err(ind)=norm(q(:)-qt(:),2); %calculate error

    % plotting
    plot(x,q0,'b',x,q,'.k',x,qt,'r');
    axis([0,L,0,1])
    drawnow

    %creat file in gif
    frame = getframe(1);
    im = frame2im(frame);
    [A,map] = rgb2ind(im,256);
    if n1 == 1;
 		imwrite(A,map,filename,'gif','LoopCount',Inf,'DelayTime',0.05);
        n1=0;
 	else
		imwrite(A,map,filename,'gif','WriteMode','append','DelayTime',0.05);
    end
end

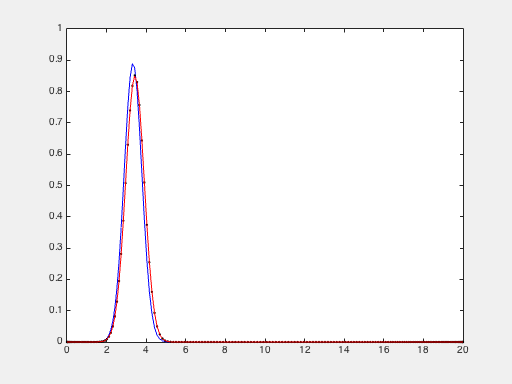

Marching in time of advection-diffusion with numerical and analytical solution

legend('Initial position','Numerical solution','Analytical solution');
title('Marching in time advection-convection equation');
xlabel('x'); ylabel('f');

set(gcf,'paperpositionmode','auto')
print('-dpng','-r80','advection-diffusion_marching_time')

Validation

To validate the solution, we draw the error between numerical and analytical solution.

figure(2)
plot(tvec,err,'b.-');
title('Error between numerical and analytical solution');
xlabel('time'); ylabel('Error');

set(gcf,'paperpositionmode','auto')
print('-dpng','-r80','advection-diffusion_error')

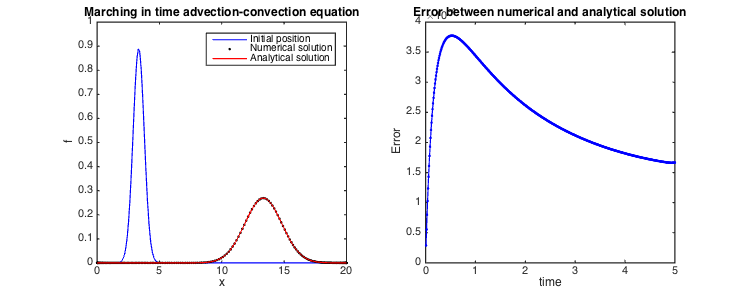

Comparison between numerical and analytical solution

We can see that error increase at the beginning because at time 0, expression for numerical and analytical are the same. After, when error decrease, we can see the error converge near 1.5E-4. So we can validate the code.

Contributor’s page

Link to page of contributor Fabien %}
