Study of the stability of a simple non constant differential equation
It’s well known in first years of university that if ytou take the classical differential equation : \displaystyle \frac{1}{\omega_0^2} \frac{\delta^2 U}{\delta t^2}+ \tau \frac{\delta U}{\delta t}+ U = f(t)
if the coefficient of the left side are all from the same sign, then the system is stable. If they are not, he system is unstable.
I started wondering, what happen if the sign of the first derivate was sometime positive and sometimes negative ? As eigeinmode is a very powerful tool to analyse stability, and a non-linear differential equation keep the same eigeinmode during his evolution, I tried to analyse this system with eigeinmodes to determine his stability.
The simplest function for me was to multiply the damp factor by a sinus of the time, with a certain frequency. After few computations, I realised that there was a range of value where the system was unstable.
I plotted the eigeinvalues in function of the damping frequency, I tried to understand the dynamics of the system.
Actually, I cannot understand it, we see that some eigeinmodes do bifurcations, must I have no ways to understand properly the diagram traced. Moreover, the system is 0D (one point with an evolution in time). I have in fact no idea of what does the Eigenvectors represent, and since we already compute the evolution in time, I also have no idea what are the interpretation of eigenvalues…
Some theory would be usefull to develop, I’m actually looking at this kind of system and I will update this programm as soon as I know more about
How the code work ?
This is a mix between and
%%%%%%%%%%%%%%%%%%%%%%PARAMETERS OF THE MODEL%%%%%%%%%%%%%%%%%%%
% numerical parameters
Tmax=10; % domain length
N=100; % number of points
t=linspace(0,Tmax,N)'; %DON'T CHANGE THIS
% physical parameters
omega0=1;
tau=1;
%vector of the excitation, choose an expression for b
b=zeros(N,1); %No sollicitation
amax=5;
%Nonconstant vectors
for a=0.0:0.01:amax
mattau=tau*diag(sin(a*t));
matomega0=omega0*diag(1);
%Boundary condition
type1= 1 ; %1 dirichlet, 2 Neumann, 3 f''
place1= 0 ; % in the physical dimension (we calculate the indice after)
val1=1;
type2= 2 ; % 1 dirichlet, 2 Neumann, 3 f''
place2= 0 ; % in the physical dimension (we calculate the indice after)
val2=0.1;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
h=t(2)-t(1); % the grid size
indice1=floor(place1/h)+1;
indice2=floor(place2/h)+1;
% first derivative
D=zeros(N,N);
D(1,1:3)=[-3/2, 2, -1/2]/h;
for ind=2:N-1
D(ind,ind-1:ind+1)=[-1/2, 0, 1/2]/h;
end
D(end,end-2:end)=[1/2, -2, 3/2]/h;
% second derivative
DD=zeros(N,N);
DD(1,1:3)=[1, -2, 1]/h^2;
for ind=2:N-1
DD(ind,ind-1:ind+1)=[1, -2, 1]/h^2;
end
DD(end,end-2:end)=[1, -2, 1]/h^2;
%%%%%%%%%%%%%%%%%%%%%%%Creation of the matrix%%%%%%%%%%%%%%%%%%%%%%%%%%
I=eye(N);
A=I+mattau*D+(matomega0^(-2))*DD;
%%%%%%%%%%%%%%%%%%%%%%%%%%initial conditions%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
if type1==1, A(1,:)=I(indice1,:) ; end
if type1==2, A(1,:)=D(indice1,:) ; end
if type1==3, A(1,:)=DD(indice1,:); end
if type2==1, A(N,:)=I(indice2,:) ; end
if type2==2, A(N,:)=D(indice2,:) ; end
if type2==3, A(N,:)=DD(indice2,:); end
%{Attribution of the values}%
b([1,N])=[val1,val2];
%%%%%%%%%%%%%%%%%%%%%%%%%%Resolution%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
U=A\b;
%%%%%%%%%%%%%%%%%%%%%%%%%%EIGENVALUES%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
[V,S]=eig(A,eye(N)); %We compute all the eigenvectors of the system
s=diag(S); %We extract the eigenvalues
rem=abs(s)>2; %We remove too big or too weak eigeinvectors
s(rem)=[];
rem=abs(s)>1000; s(rem)=[]; U(:,rem)=[];
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%TRACE%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
figure(1)
subplot(2,1,1);
if max(U./t)>1.1, plot(a,real(s),'r.'); end; %We plot unstable modes in another color
if max(U)<1.1, plot(a,real(s),'b.'); end;
xlabel('a');ylabel('values');title('eigenvalues');
grid on;
hold on
subplot(2,1,2);
if mod(a,0.05)==0,
if max(U)>1.1, plot(t,U,'r'); end;
if max(U)<1.1, plot(t,U,'b'); end;
axis([0,Tmax,-5,5])
hold on
end
end
hold off
set(gcf,'paperpositionmode','auto')
print('-dpng','-r90',sprintf('unstable.png'));
Figures !

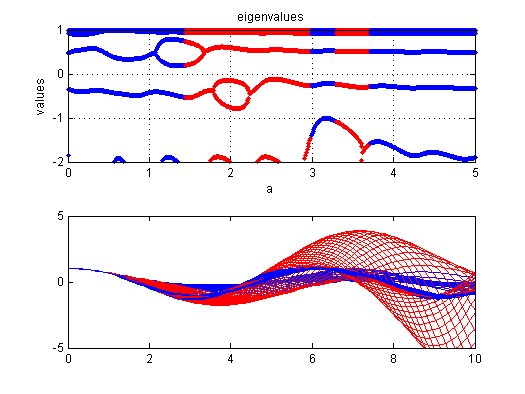

Here is the figure the program draw, in blue stable values of a and in red unstable values. Honestly, I don’t understand my results.
