    Numerical integration of the Lorenz system

    The Lorenz system is a classical dimension-3 dynamical system modelling thermal convection in a rectangular cell.

    The system is defined as follows :

    \displaystyle \frac{ dx}{dt} = P (y-x) \displaystyle \frac{ dy}{dt} = r x - y - x z; \displaystyle \frac{ dz}{dt} = x y - bz.

    • r is the control parameter and represents the temperature difference between upper and lower surfaces (Rayleigh number)

    • P reprents the Prandtl number (classical value 10)

    • b is a geometrical parameter related to the aspect ratio of the cell (classical value 8/3)

    This program will draw two trajectories with slightly different initial conditions.

    What you can modify when playing with the program is :

    • control parameter r (line 47)

    • initial conditions X0 and Xb0 : change definition in lines 55-56 or uncomment lines 61-63

    function [] = lorenz()


    Definition of the parameters and initialization of the figures

    % control parameter
    r= 24;

    % Physical parameters
    P = 10;
    b = 8/3;

    %% Initial conditions
    %% X0 is initial condition of "blue" trajectory and Xb is initial condition of "red" trajectory

    % First idea : two points close to [1,1,1]
    X0 = [1;1;1];
    Xb0 = [1+1e-7;1;1] ;

    %% Second idea : two points close to the equilibrium point
    %% the system has an equilibrium point [Xf,Xf,Xf^2/b] ; with Xf = sqrt((r-1)*b) ;
    %% we will use initial condition close to this point
    % Xf = sqrt((r-1)*b);
    % X0 = [Xf+1e-2;Xf;Xf^2/b+1e-3]
    % Xb0 = [Xf;Xf+1e-2;Xf^2/b-1e-3]

    % Numerical parameters

    T0 = 0; % initial time
    Tstep = 1; % time-step
    Nt = 100; % max-number of integrations
    Tpause = .3; %time (in seconds between two plots)

    % Initialisation of the figures
    close all;
    figure(1);
    xlabel('x'), ylabel('y'), zlabel('z');
    title('Trajectory in phase-space for two initial conditions');
    grid;
    view(20,10); % set angle for 3D view

    figure(2);
    subplot(2,1,1);
    xlabel('t');ylabel('x (-) , y(--) , z (..)');
    title('Time-history of the solutions');
    subplot(2,1,2);
    title('Distance between the two trajectories');
    xlabel('t');ylabel('|X(blue)-X(red)|');

    disp('Position the figures and press enter to launch');
    pause;


    Performing the temporal integration

    for N = 1:Nt
        Dt = [T0 : Tstep/100 : T0+Tstep] ;  % bornes d'integration
        [t, X] = ode45(@(t,X)(f_lorenz(X,r,P,b)), Dt, X0); % integration for "blue"
        [tb, Xb] = ode45(@(t,X)(f_lorenz(X,r,P,b)), Dt, Xb0); % integration for "red"
        figure(1); hold on;%
        plot3(X(:,1), X(:,2), X( :,3),'b-');
        plot3(Xb(:,1), Xb(:,2), Xb(:,3),'r-');


        X0 = X(end,:); Xb0 = Xb(end,:); T0 = t(end);% initial condition for next run
        figure(2);
        subplot(2,1,1);hold on;
        plot(t,X(:,1),'b-',t,X(:,2),'b--',t,X(:,3),'b:', tb,Xb(:,1),'r-',tb,Xb(:,2),'r--',tb,Xb(:,3),'r:');

        Xbb = interp1(tb,Xb,t);
        diff = sqrt( (Xbb(:,1)-X(:,1)).^2 + (Xbb(:,2)-X(:,2)).^2 + (Xbb(:,3)-X(:,3)).^2);
        subplot(2,1,2);hold on;
        semilogy(t,diff,'k');

        pause(Tpause);
    end


    Results

        figure(1);
        set(gcf,'paperpositionmode','auto');
        print('-dpng','-r80','Lorenz1.png');
         figure(2);
        set(gcf,'paperpositionmode','auto');
        print('-dpng','-r80','Lorenz2.png');

        end

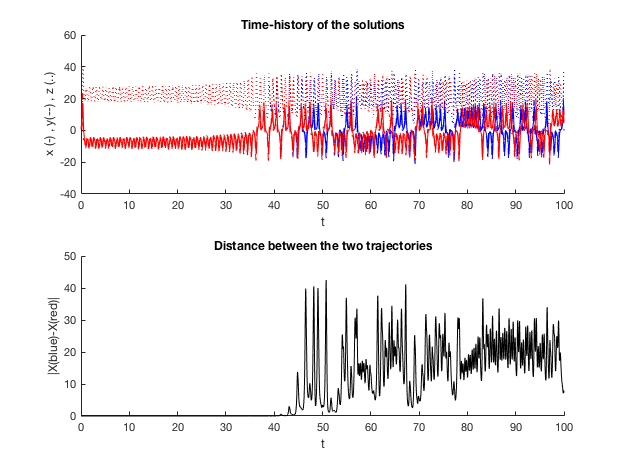

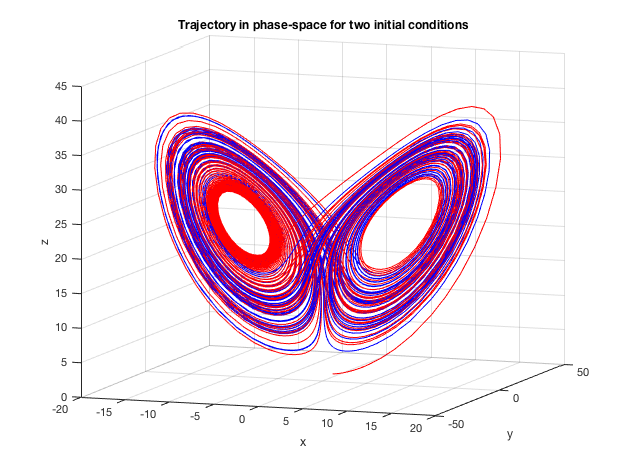

    Figure 1 : Trajectories of the Lorenz system in phase space with two close initial conditions Figure 2 : Time-history of the two trajecrories and relative distance

    Definition of the function governing the dynamical system

    function f = f_lorenz(X,r,P,b)
    % cette fonction definit le systeme de Lorenz

    x = X(1); y = X(2); z = X(3);


    f = zeros(3,1); % vecteur colonne
    f(1) = P*(y-x);
    f(2) = r*x - y - x*z;
    f(3) = x*y - b*z;
    end
