sandbox/easystab/david/differential_equation_fd_cheb.m
Solving a linear differential equation : comparison between finite-differences and chebychev discretizations.
The code solves the differential equation with boundary conditions: \displaystyle \frac{d^2 F}{d x^2} = 1 ; \quad F(0) = 0 ; \quad \left.\frac{dF}{dx}\right|_L = 1. Whose theoretical solution is : F(x) = x^2/2 + (1-L) x.
This code is an improvement of the previous code differential_equation_chebychev.m, but uses dif1D.m to build the matrices. In addition it also demonstrate the way to compute an integral of a function using the “weight” vector.
clear all; clf
% parameters
L=2*pi; % domain length
N=25; % number of points
Solution with finite elements
%% building the differentiation matrices with dif1D:
[dxfd,dxxfd,wxfd,xfd]=dif1D('fds',0,L,N);
Z=zeros(N,N); I=eye(N);
%% I build the linear differential equation
Afd=dxxfd;
%% boundary conditions
Afd([1,N],:)=[I(1,:); dxfd(N,:)];
b=1*ones(N,1); b([1,N])=[0,1];
%% solve the system
f=Afd\b;
%% plotting the results and comparing with theory
subplot(1,2,1)
plot(xfd,f,'g-+',xfd,xfd.^2/2+(1-L)*xfd,'r-');
xlabel('x');ylabel('f');
legend('numerical','theory')
xlim([0,L]); grid on
title('Finite Differences');
Solution with Chebychev
%% building the differentiation matrices with dif1D:
[dxcheb,dxxcheb,wxcheb,xcheb]=dif1D('cheb',0,L,N);
Acheb=dxxcheb;
%% boundary conditions are treated exactly in the same way
Acheb([1,N],:)=[I(1,:); dxcheb(N,:)];
b=1*ones(N,1); b([1,N])=[0,1];
%% solving the problem
g=Acheb\b;
%% plotting the Chebychev differentiation way
subplot(1,2,2)
plot(xcheb,g,'b-+',xcheb,xcheb.^2/2+(1-L)*xcheb,'r-');
xlabel('x');ylabel('f');
legend('numerical','theory')
xlim([0,L]); grid on
title('Chebychev');

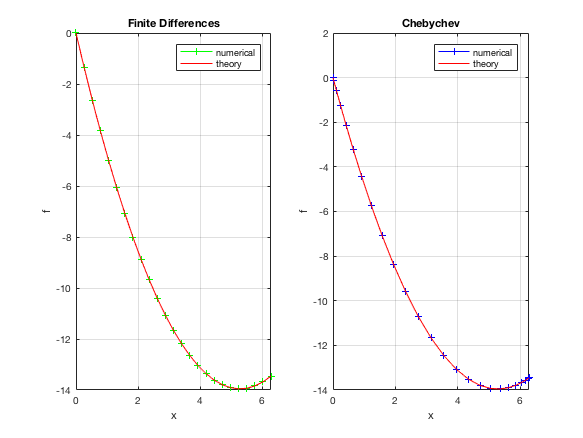

set(gcf,'paperpositionmode','auto')
print('-dpng','-r75','differential_equation_fd_cheb.png')
Computing an integral
We want to compute the integral I = \int_0^L f(x) dx where f(x) is the solution of the previous problem.
Theoretical solution is I = L^3/6+(1-L)*L^2/2
disp(' Computing the integral :')
Itheo = L^3/6+(1-L)*L^2/2
Ifd = wxfd*f
Icheb = wxcheb*g
%}
%}
