    Rayleigh-Benard instability

    This document belongs to the easystab project, please consult the main page of the project for explanations.

    The present program was specifically designed as a support for the course “Introductions to hydrodynamical instabilities” for the “DET” Master’s cursus in Toulouse. For the underlying theory please see Lecture notes for chapter 5

    To use this program: click “raw page source” in the left column, copy-paste in the Matlab/Octave editor, and run.

    This program solves the linear stability problem for the Rayleigh-Bénard instability of a horizontal layer of fluid heated from below. This program is adapted from /sandbox/easystab/rayleigh_benard.m, which solved the problem in the case of slip conditions (“Free-Free boundaries”) and validated the approach by comparing with analytical results which exist in this case. The present program considers the more physical case of no-slip conditions at the walls (“Rigid-Rigid boundaries”).

    The theory is presented in lecture 5 of the M2 DET course. The problem is set in generalised eigenvalue form \lambda B X = A X. The construction of the matrices and resolution is done by function RB(k,Ra,Pr) defined at the end of this document.

    function [] = RayleighBenard()
    global y dy dyy w Z I N

    % parameters
    N=61; % number of gridpoints

    % differentiation matrices
    [dy,dyy,w,y] = dif1D('cheb',0,1,N);
    Z=zeros(N,N); I=eye(N);


    Validation of the code

    We first validate the code by looking for the instability threshold.

    According to the litterature, the neutral conditions are :

    Ra = 1708;
    k = 3.117;


    These value correspond to a neutral mode whatever the Prandtl number. Here we take :

    Pr = 10.;


    We compute the leading eigenvalue using the function FK defined at the bottom of this program:

    lambdamax = RB(k,Ra,Pr)


    This value is close to zero. If we want an even better evaluation of the threshold we can use fzero to find the value of Ra where the eigenvalue is exactly zero:

    Rac = fzero(@(Ra)(real(RB(k,Ra,Pr))),Ra)


    Spectrum, and structure of the leading eigenmode for Ra = 2000.

    We now take a value of Ra above the threshold and solve the eigenvalue problem for these parameters :

    Ra = 2000;
    Pr = 10;
    k = pi ;% this means that the wavelenghth is twice the plate spacing)

    [s,U] = RB(k,Ra,Pr);


    We plot the spectrum in figure 1

    %set(0,'defaultAxesFontSize',16);
    figure(1);
    plot(imag(s),real(s),'go');
    hold on; plot([-1, 1],[0,0],'k:');
    ylabel('\lambda_r');ylim([-200, 50]);
    xlabel('\lambda_i');xlim([-1,1]);
    title(['Spectrum  for Ra =',num2str(Ra),' ; k = ',num2str(k),' ; Pr = ',num2str(Pr)]),
    saveas(gcf,'RB_spectrum','svg');

    Figure : Spectrum for Ra = 2000

    Figure : Spectrum for Ra = 2000

    Mode = U(:,1);
    figure(2);
    ModeU = imag(Mode(1:N)); ModeV = real(Mode(N+1:2*N)); ModeP = real(Mode(2*N+1:3*N));ModeT = real(Mode(3*N+1:4*N));
    plot(ModeU/max(abs(ModeU)),y,'r',ModeV/max(abs(ModeV)),y,'b',ModeP/max(abs(ModeP)),y,'g',ModeT/max(abs(ModeT)),y,'k');
    ylabel('y');
    legend({'Im( u(y) )','v(y)','p(y)','\theta(y)'});
    title({['Leading Eigenmode for Ra =',num2str(Ra)], 'Plot of eigenfunctions' });
    saveas(gcf,'RB_Mode','svg');

    Figure : Most amplified eigenmode for Ra = 2000

    Figure : Most amplified eigenmode for Ra = 2000

    Reconstruct the 2D structure of the mode and plot

    Amp=0.2;step = 3;
    Xarray = linspace(0,4,40);
    Yarray = y(1:step:end);
    [XX,YY] = meshgrid(Xarray,Yarray);
    UU = -Amp*ModeU(1:step:end)*sin(Xarray*pi);
    VV = Amp*ModeV(1:step:end)*cos(Xarray*pi);
    TT = Amp*ModeT(1:step:end)*cos(Xarray*pi);

    figure(20);
    contourf(XX,YY,TT);hold on;
    quiver(XX,YY,UU,VV,'k');hold off;
    axis equal;
    title({['Leading Eigenmode for Ra =',num2str(Ra)], '2D reconstruction' });
    %saveas(gcf,'RB_mode2D_perturb','svg');
    print('-dpng','-r120','RB_mode2D_perturb.png');

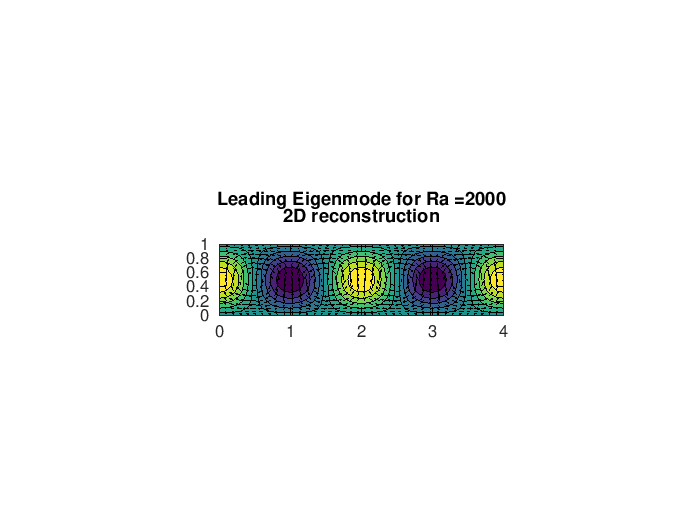

    Figure : 2D reconstruction of leading eigenmode for Ra = 2000 (colors are for temperature perturbations)

    Figure : 2D reconstruction of leading eigenmode for Ra = 2000 (colors are for temperature perturbations)

    TTtot = TT+(1-Yarray)*ones(1,40);
    figure(21);
    contourf(XX,YY,TTtot);hold on;
    quiver(XX,YY,UU,VV,'k');hold off;
    axis equal;
    title({'2D reconstruction of eigenmode ',' superposed to temperature field at equilibrium' });
    %saveas(gcf,'RB_mode2D_full','svg');
    print('-dpng','-r120','RB_mode2D_full.png');

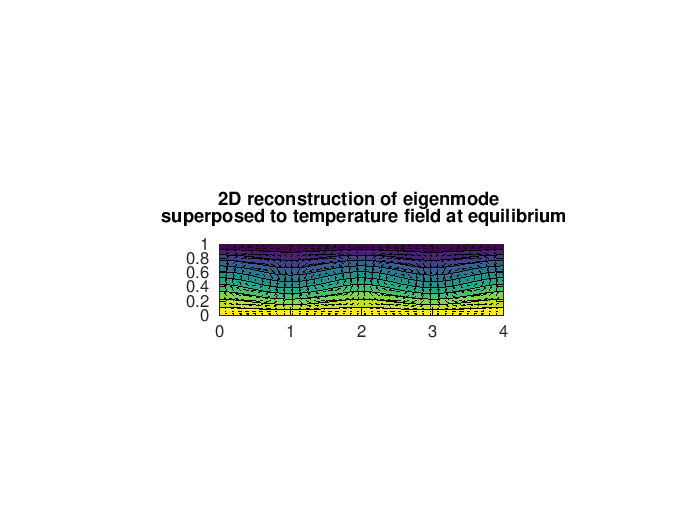

    Figure : 2D reconstruction of leading eigenmode for Ra = 2000 (colors are for full temperature field)

    Figure : 2D reconstruction of leading eigenmode for Ra = 2000 (colors are for full temperature field)

    pause(10);
    disp('Next part of the program, parametric study, will start in 10 seconds...');


    Parametric study

    We have to characterize the variation of the leading \lambda as function of the two parameters k and Ra (we still consider Pr = 10).

    Computations

    First we compute \lambda(k) for several values of Ra and plot the results in figure 2.

    for Ra = [1500:250:2500];
        ktab = [1:.1:5];
        smaxtab = [];
        for k = ktab
            [s,U] = RB(k,Ra,Pr);
            smaxtab = [smaxtab real(s(1))];
        end
        figure(3);
        subplot(2,1,1);
        plot(ktab,smaxtab);hold on;
        pause(0.1);
    end

    plot(ktab,0*ktab,'k:');
    xlabel('k');
    ylabel('\lambda');
    %title('Growth rate \lambda(k) for various values of Ra');
    legend('Ra=1500','Ra=1750','Ra=2000','Ra=2250','Ra=2500');
    legend('Location','SouthEast');
    pause(0.1);


    We now build the marginal stability curve Ra_c(k) corresponding to the location in the [Ra,k]-plane where the leading eigenvalue is exactly zero.

    For this we do a loop over k and look for the location where \lambda_{max} is exactly zero, using again fzero as done above. Results are plotted in figure 2.

    Ra = 3000;
    Ratab=[];
    ktab = 1.5:.1:5;
    for k=ktab
        Ra = fzero(@(Ra)(real(RB(k,Ra,Pr))),Ra);
        Ratab= [Ratab Ra];
    end

    figure(3);
    subplot(2,1,2);
    plot(ktab,Ratab);
    xlabel('k');ylabel('Ra');
    ylim([1000,3000]);
    %title('Neutral curve');
    saveas(gcf,'RB_neutralcurve','svg');

    ### Results

    Figure : amplification rate as function of k for several values of \lambda (top) ; boundary of the unstable domain in the (Ra/k) plane (bottom)

    Figure : amplification rate as function of k for several values of \lambda (top) ; boundary of the unstable domain in the (Ra/k) plane (bottom)

    end


    FUNCTION RB

    Here is the definition of the function RB which performs the eigenvalue computation. Note that this function is designed so that it can be used in two ways :

    • [s,U] = RB(k,Ra,P) will return a vector s containing the 10 leading eigenvalues and an array U containing (in column) the corresponding eigenvectors.

    • lambdamax = RB(k,Ra,P) will return only one value corresponding to the leading eigenvalue. This is useful to use this function with fzero.

    function [s,U] = RB(k,Ra,Pr)
    global y dy dyy w Z I N


    % renaming the differentiation matrices
    dx=1i*k*I; dxx=-k^2*I;
    Delta=dxx+dyy;


    System matrices

    As explained in the lecture notes, after nondimensionalization the system of equations can be written in a matrix form \displaystyle \lambda B q =A q with the matrices \displaystyle q=\left(\begin{array}{c} u \\ v\\ p\\ \theta \end{array}\right) , \quad A=\left(\begin{array}{cccc} Pr \Delta&0&-\partial_x&0\\ 0&Pr \Delta&-\partial_y& Pr \\ \partial_x&\partial_y&0&0\\ 0& Ra &0&\Delta \end{array}\right) , \quad B=\left(\begin{array}{cccc}1&0&0&0\\0&1&0&0\\0&0&0&0\\0&0&0&1\end{array}\right)

    NB in this program we use a slightly different nodimensionalization in which the velocities are resclaed by \sqrt(Re); this is equivalent.

    % system matrices
    A=[Pr*Delta, Z, -sqrt(Ra)*dx, Z; ...
       Z, Pr*Delta, -sqrt(Ra)*dy, Pr*sqrt(Ra)*I;  ...
       dx, dy, Z, Z;  ...
       Z, sqrt(Ra)*I, Z, Delta];
    B=blkdiag(I,I,Z,I);


    Boundary conditions

    The natural conditions are that u and v are zero at the walls, and the temperature perturbation \theta is also zero at the walls (the temperature is imposed at the wall, without perturbations).

    \displaystyle \begin{array}{l} u|_0=0\\ u|_L=0\\ v|_0=0\\ v|_L=0\\ \theta|_0=0\\ \theta|_L=0\\ \end{array} thus the boundary conditions are expressed Cq=0, with the constraint matrix

    \displaystyle C=\left(\begin{array}{cccc} I|_0&0&0&0\\ I|_L&0&0&0\\ 0&I|_L&0&0\\ 0&I|_0&0&0\\ 0&0&0&I|_L\\ 0&0&0&I|_0\\ \end{array}\right)

    % boundary conditions
    II=eye(4*N);
    u0=1; uL=N; v0=N+1; vL=2*N; T0=3*N+1; TL=4*N;
    loc=[u0,uL,v0,vL,T0,TL];
    C(loc,:)=II(loc,:);
    A(loc,:)=C(loc,:);
    B(loc,:)=0;


    Computing eigenmodes

    In the way the linear system \lambda B q=Aq hzs been constucted, the matrix B is not invertible, so we solve a generalized eigenvalue problem which will have infinite eigenvalues. We remove them form the results.

    % computing eigenmodes
    [U,S]=eig(A,B);
    s=diag(S);  [t,o]=sort(-real(s)); s=s(o); U=U(:,o);
    rem=abs(s)>1000; s(rem)=[]; U(:,rem)=[];

    if(nargout==1)
        s=(s(1));
        % this is a trick to allow to use the function as s=RT(k,Ra,Pr).
        % This allows to pass the function as a handle for fzero.
    end

    end

    function [] = plotmode(~,~,mode,lambda,k) % function to plot one mode
        global y dy dyy
        figure(2);hold off;
        N = length(y);
        u = mode(1:N);
        v = mode(N+1:2*N);
        p = mode(2*N+1:3*N);
      %  p = p/max(p)*max(v); % renormalization
        T = mode(3*N+1:4*N);
        subplot(1,3,1);hold off;
        plot(real(u),y,'b-',imag(u),y,'b--');hold on;
        plot(real(v),y,'g-',imag(v),y,'g--');hold on;
        plot(real(p),y,'r-',imag(p),y,'r--');hold on;
        plot(real(T),y,'k-',imag(T),y,'k--');hold on;
        ylabel('y');
        legend({'Re(u)','Im(u)','Re(v)','Im(v)','Re(p)','Im(p)','Re(T)','Im(T)'})
        if (-imag(lambda)/k)<1&&(-imag(lambda)/k)>0
          ycrit = sqrt(1+imag(lambda)/k);
          plot([-1,1],[ycrit,ycrit],'k:',[-1,1],[-ycrit,-ycrit],'k:')
        end
        % plot 2D reconstruction
        Lx=2*pi/k; Nx =30;  x=linspace(-Lx/2,Lx/2,Nx);
        yy = y;
        pp = 2*real(p*exp(1i*k*x));
        uu=2*real(u*exp(1i*k*x));
        vv=2*real(v*exp(1i*k*x));
        TT=2*real(T*exp(1i*k*x));
        subplot(1,3,2:3); hold off;
        contourf(x,yy,TT,10); hold on;
        quiver(x,yy,uu,vv,'k'); hold on;
        %axis equal;
        xlabel('x'); ylabel('y'); title({'Structure of the eigenmode ( color : \theta ; vectors : (u,v)  )',['lambda = ',num2str(lambda)]});
    end% function plotmode


    Exercices/Contributions

    • Please superpose the neutral curve onto the results of Drazin & Reid (Fig. 2.2, page 53)
    • Drazin & Reid (page 51) found that a second mode becomes unstable above a critical Rayleigh number of 17610 for k=5.365. Please check these results with the present code.
    • Please show that the flow is always stable when the hot plate is at the top
    • Please draw the velocity field and the temperature field corresponding to the five most unstable modes.
    • Please write a code that does the advection of tracer particles by the velocity field of the first eigenmode in a stable case and in an unstable case
    • Extension considering surface tension and a free surface, also called Rayleigh Benard Marangoni convection
