    Phase portrait of a LINEAR dynamical system of dimension 2

    This program investigates mathematically and numerically the behaviour of a linear dynamical system with two degrees of freedom, written under the following form :

    \displaystyle d/dt X = A X

    With \displaystyle X = \left[ \begin{array}{c} x_1 \\ x_2 \end{array} \right]

    and

    \displaystyle A = \left[ \begin{array}{cc} A_{11} & A_{12} \\ A_{21} & A_{22} \end{array} \right]

    Example

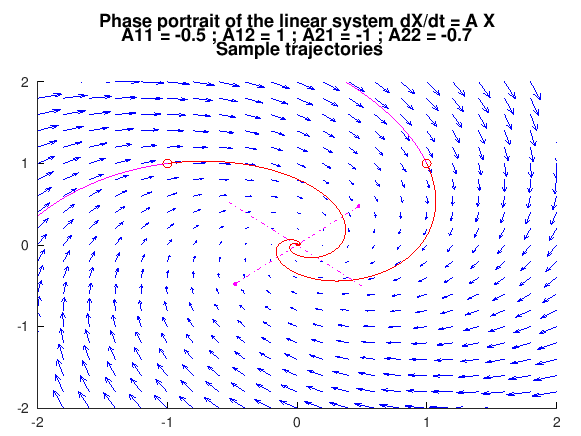

    The following figure was generated using sample values for coefficients of matrix A. Use the program interactively to change the values and plot more trajectories !

    Phase portrait of the linear 2x2 system for A = [[ -.5, 1],[0,-.7]] ; sample trajectory

    Phase portrait of the linear 2x2 system for A = [[ -.5, 1],[0,-.7]] ; sample trajectory

    How to use this program :

    • Run the program with Octave or Matlab
    • In the “Command Window”, enter the coefficients of the matrix A as requested,
    • Click on the figure to plot trajectories.

    Main program :

    function [] = PhasePortrait_Linear()
clear all; close all;


INTERACTIVE = isempty(getenv('OCTAVE_AUTORUN'));	% to detect if the code is running on the server or interactively

if INTERACTIVE
  % When running the code interactively : select the parameters by hand
  fprintf('\n Draw the phase portrait for a linear dynamical system of dimension 2 defined as : ');
  fprintf('\n      f_1 = A11 x1 + A12 x2 ')
  fprintf('\n      f_2 = A21 x1 + A22 x2 \n')
	A11 = input(' A11 = ');
	A12 = input(' A12 = ');
  A21 = input(' A21 = ');
	A22 = input(' A22 = ');
else
  % If running the code automatically on server ; taking default values
  A11 = -.5;
  A12 = 1;
  A21 = -1;
  A22 = -.7;
end

    Plot of the “Flow” in phase space

    For a 2d system, the phase space corresponds to the (x_1,x_2)-plane. The flow in phase-space is visulasized by a vector field which is plotted using the Matlab/Octave command quiver.

    The flow will be plotted in the figure with blue arrows

    % Parameters for plots
% range for figure 1
    xmin = -2; xmax = 2;
    ymin = -2; ymax = 2;

   [xG, yG] = meshgrid(linspace(xmin, xmax, 21), linspace(ymin, ymax, 21));
	ux =  A11*xG+A12*yG;
	uy =  A21*xG+A22*yG;
	figure(1);
     title({'Phase portrait of the linear system dX/dt = A X',...
     ['A11 = ',num2str(A11),' ; A12 = ',num2str(A12),' ; A21 = ',num2str(A21),' ; A22 = ',num2str(A22)],...
     ' Left-click to draw a trajectory ; right-click to stop'},'FontSize',14)
    hold on
	quiver(xG, yG, ux, uy, 'Color', 'b');
    axis([xmin xmax ymin ymax]);

    ## Eigenvalues/Eigenmodes of the matrix A:

    The eigenvalues/eigenmodes are computed with the eig command.

     A = [[A11, A12];[A21,A22]];

 disp('Matrix A :');
 A

 disp([' Det(A) = ',num2str(A11*A22-A12*A21)]);
 disp([' Tr(A)  = ',num2str(A11+A22)]);
 disp('');

   [em,D] = eig(A);
   lambda = diag(D); % eigenvalues
    l1 = D(1,1); l2 = D(2,2);



    % warning : matlab orders the eigenvalues by increasing magnitude, not decreasing real part as in the theory !

   e1 = em(:,1);
   e2 =  em(:,2);
   disp(['Eigenvalues : lambda1 = ',num2str(l1),' ; lambda2 = ',num2str(l2)]) ;
   disp(' ');
   disp('Eigenmodes :');
   e1
   e2

    Classification of the equilibrium point (0,0) as function of its eigenvalues :

    A number of cases of subcases have to be considered, depending if the eigenvalues are real or complex, different or identical, and if the real parts are positive and negative, etc…

    In the figure, red lines will display the unstable eigenspaces, magenta lines the stable eigenspaces, green lines the neutral eigenspaces, orange lines the algebraically unstable directions.

    In the case where eigenvalues are complex conjugate the directions will be plotted in dash-dot style.

     if (imag(l1)==0)

    Two real eigenvalues

       if(l1<0)&&(l2<0)&&(l1~=l2)
        disp('Two real, negative, distinct eigenvalues : this is a stable node');
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'m--');
           plot([-e2(1),e2(1)],[-e2(2),e2(2)],'m--');
       elseif(l1<0)&&(l2<0)&&(l1==l2)&&(abs(A12)+abs(A21)>0)
           disp('Two real, negative, equal eigenvalues, nondiagonal matrix : this is an improper stable node');
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'m--');
       elseif(l1<0)&&(l2<0)&&(l1==l2)&&(abs(A12)+abs(A21)==0)
           disp('Two real, negative, equal eigenvalues, diagonal matrix : this is a stable star');
           plot([-1,1],[0,0],'m--');plot([0,0],[-1,1],'m--');
           plot([-sqrt(.5),sqrt(.5)],[-sqrt(.5),sqrt(.5)],'m--');plot([-sqrt(.5),sqrt(.5)],[sqrt(.5),-sqrt(.5)],'m--');
       elseif(l1>0)&&(l2>0)&&(l1~=l2)
           disp('Two real, positive, distinct eigenvalues : this is a stable node');
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'r--');
           plot([-e2(1),e2(1)],[-e2(2),e2(2)],'r--');
       elseif(l1<0)&&(l2<0)&&(l1==l2)&&(abs(A12)+abs(A21)>0)
           disp('Two real, negative, equal eigenvalues, nondiagonal matrix : this is an improper stable node');
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'r--');
       elseif(l1<0)&&(l2<0)&&(l1==l2)&&(abs(A12)+abs(A21)==0)
           disp('Two real, positive, equal eigenvalues, diagonal matrix : this is an unstable star');
           plot([-1,1],[0,0],'r--');plot([0,0],[-1,1],'r--');
           plot([-sqrt(.5),sqrt(.5)],[-sqrt(.5),sqrt(.5)],'r--');plot([-sqrt(.5),sqrt(.5)],[sqrt(.5),-sqrt(.5)],'r--');
       elseif(l1*l2<0)
           disp('Two real eigenvalues with opposite sign : this is a saddle');
           if(l1<0)
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'m--');
           plot([-e2(1),e2(1)],[-e2(2),e2(2)],'r--');
           else
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'r--');
           plot([-e2(1),e2(1)],[-e2(2),e2(2)],'m--');
           end
       elseif(l1==0)&&(l2>0)
           disp('one null eigenvalue and one positive eigenvalue : this is an unstable degenerated node')
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'g--');
           plot([-e2(1),e2(1)],[-e2(2),e2(2)],'r--');
        elseif(l1==0)&&(l2<0)
           disp('one null eigenvalue and one negative eigenvalue : this is a nonhyperbolic point of codimension 1')
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'g--');
           plot([-e2(1),e2(1)],[-e2(2),e2(2)],'m--');
        elseif(l1==0)&&(l2==0)&&(abs(A12)+abs(A21)==0)
           disp('two null eigenvalues, diagonal matrix : this is a nonhyperbolic point of codimension 2')
           plot([-1,1],[0,0],'g--');plot([0,0],[-1,1],'g--');
           plot([-sqrt(.5),sqrt(.5)],[-sqrt(.5),sqrt(.5)],'g--');plot([-sqrt(.5),sqrt(.5)],[sqrt(.5),-sqrt(.5)],'g--');
         elseif(l1==0)&&(l2==0)&&(abs(A12)+abs(A21)>0)
           disp('two null eigenvalues, non diagonal matrix : this is an algebraically unstable point')
           plot([-e1(1),e1(1)],[-e1(2),e1(2)],'g--');
           plot([e1(2),-e1(2)],[-e1(1),e1(1)],'o--');
       end
    else

    Two complex eigenvalues

             er = real(e1);ei = imag(e1);

   if(A11==A22)&&(A21==-A12) % this is a circular focus/center
      if(real(l1)>0)
         disp('two complex conjugate eigenvalues with positive real part, all directions equivalent : this is an unstable circular focus')
           plot([-1,1],[0,0],'r-.');plot([0,0],[-1,1],'r-.');
           plot([-sqrt(.5),sqrt(.5)],[-sqrt(.5),sqrt(.5)],'r-.');plot([-sqrt(.5),sqrt(.5)],[sqrt(.5),-sqrt(.5)],'r-.');

   elseif(real(l1)<0)
       disp('two complex conjugate eigenvalues with negative real part, all directions equivalent : this is a stable circular focus')
             plot([-1,1],[0,0],'m-.');plot([0,0],[-1,1],'m.');
             plot([-sqrt(.5),sqrt(.5)],[-sqrt(.5),sqrt(.5)],'m-.');plot([-sqrt(.5),sqrt(.5)],[sqrt(.5),-sqrt(.5)],'m-.');
        elseif(real(l1)<0)
        elseif(real(l1)==0)
             disp('two complex conjugate eigenvalues with null real part :  all directions equivalent : this is a circular centre')
             plot([-1,1],[0,0],'g-.');plot([0,0],[-1,1],'g.-');
             plot([-sqrt(.5),sqrt(.5)],[-sqrt(.5),sqrt(.5)],'g-.');plot([-sqrt(.5),sqrt(.5)],[sqrt(.5),-sqrt(.5)],'g-.');
          end


   else % elliptical focus/center

   phi= -atan2(2*er'*ei,(er'*er-ei'*ei))/2;
   ec = er*cos(phi)-ei*sin(phi);
   es = -er*sin(phi)-ei*cos(phi);
   disp('main directions for an elliptical focus/center:')
         ec
         es
        if(real(l1)>0)
             disp('two complex conjugate eigenvalues with positive real part : this is an unstable elliptical focus')
             plot([-ec(1),ec(1)],[-ec(2),ec(2)],'r-.');
             plot([-es(1),es(1)],[-es(2),es(2)],'r-..');
        elseif(real(l1)<0)
             disp('two complex conjugate eigenvalues with negative real part : this is an stable elliptical focus')
            plot([-ec(1),ec(1)],[-ec(2),ec(2)],'m-.');
             plot([-es(1),es(1)],[-es(2),es(2)],'m-..');
        elseif(real(l1)<0)
        elseif(real(l1)==0)
             disp('two complex conjugate eigenvalues with null real part : this is an elliptical centre')
              plot([-ec(1),ec(1)],[-ec(2),ec(2)],'g-.');
             plot([-es(1),es(1)],[-es(2),es(2)],'g-..');
        end
    end
    end

    Drawing of a few trajectories to complete the phase portrait

    Click on the figure to draw trajectories : the part of the trajectory for t>0 will be plotted in red and the part for t<0 in magenta.

     Tmax = 20./max([abs(l1),abs(l2)]); % max time for integratation of trajectory
 Tmaxplot = Tmax/2; % max time for plot in figure 2.
 if INTERACTIVE
   % interactive mode : plotting trajectory by clicking on figure
    [xp,yp,button] = ginput(1);
   while(button==1);
    xinit = [xp;yp];

   [t,xtraj] = ode45(@(t,x)([A11*x(1)+A12*x(2); A21*x(1)+A22*x(2)]),linspace(0, Tmax,500),xinit);
    [tb,xtrajback] = ode45(@(t,x)(-[A11*x(1)+A12*x(2); A21*x(1)+A22*x(2)]),linspace(0, Tmax,500),xinit);
    figure(1);
    plot(xtraj(:,1),xtraj(:,2),'r',xtrajback(:,1),xtrajback(:,2),'m',xtraj(1,1),xtraj(1,2),'ro');
    %figure(2); plot(t,sqrt(xtraj(:,1).^2+xtraj(:,2).^2));hold on;
    figure(1);
    [xp,yp,button] = ginput(1);
   end

 else % non-interactive mode : draw one sample trajectory
    xinit = [1;1];
    [t,xtraj] = ode45(@(t,x)([A11*x(1)+A12*x(2); A21*x(1)+A22*x(2)]),linspace(0, Tmax,500),xinit);
    [tb,xtrajback] = ode45(@(t,x)(-[A11*x(1)+A12*x(2); A21*x(1)+A22*x(2)]),linspace(0, Tmax,500),xinit);
    figure(1);
    plot(xtraj(:,1),xtraj(:,2),'r',xtrajback(:,1),xtrajback(:,2),'m',xtraj(1,1),xtraj(1,2),'ro');
    hold on;
    xinit = [-1;1];
    [t,xtraj] = ode45(@(t,x)([A11*x(1)+A12*x(2); A21*x(1)+A22*x(2)]),linspace(0, Tmax,500),xinit);
    [tb,xtrajback] = ode45(@(t,x)(-[A11*x(1)+A12*x(2); A21*x(1)+A22*x(2)]),linspace(0, Tmax,500),xinit);
    plot(xtraj(:,1),xtraj(:,2),'r',xtrajback(:,1),xtrajback(:,2),'m',xtraj(1,1),xtraj(1,2),'ro');
    title({'Phase portrait of the linear system dX/dt = A X',...
        ['A11 = ',num2str(A11),' ; A12 = ',num2str(A12),' ; A21 = ',num2str(A21),' ; A22 = ',num2str(A22)],...
     ' Sample trajectories'},'FontSize',13)
 end

set(gcf,'paperpositionmode','auto');
print('-dpng','-r100','Figure1.png');


end

    Exercices :

    • Please play with the code and try to observe all particular cases
