    Numerical resolution of the “Ginzburg-Landau” Equation

    This program is a pedagogical introduction to the numerical resolution of partial-difference equations systems displaying instability phnomena, starting from the eigenmode analysis of the linearised system to predict the stability, and ending up to the illustration of the dynamics in the full nonlinear case.

    Definition of the problem :

    The Ginzburg-Landau equation is a simple model used for various processes in physics, chemistry or biology. We define this equation as follows;

    \displaystyle \frac{\partial \phi}{\partial t} = \sigma \phi + \kappa \frac{\partial^2 \phi}{\partial x^2} -\phi^{N_{nl}}

    Here :

    • \phi(x,t) is the unknown function defined on an interval x \in \Omega, which can be finite (\Omega= [a,b]) or infinite.

    • \sigma is the local growth rate. The latter may be constant (\sigma = \sigma_0) or a function of space with the form \sigma(x) = \sigma_0-\sigma_2 x^2.

    • \kappa is a diffusion coefficient.

    • N_{nl} is the order of the nonlinearity (2 or 3).

    • Boundary conditions on a,b may be Dirichlet (\psi=0) or Neumann (\partial \psi / \partial x = 0).

    A possible interpretation of this equation, in biology, is as follows. Consider the evolution of a population of organisms (bacteria for instance) evolving in a one-dimensional medium (a tube for instance). \Psi(x,t) will correspond to the local density of organisms. \sigma(x) is the local concentration of nutriments (assumed stationnary). The diffusion term represents the motion of the organisms modelled as “random walkers”, and the nonlinear term represent the competition between the organisms. In biology, \phi(x,t) is positive and nonlinearities can be modelled with N_{nl}=2.

    In the next chapters, the Ginzburg-Landau will also be used to model flow instabilities, and in this context it is more relevant to take N_{nl}=3.

    clear all; clf
    close all;

    % physical parameters
    L=1 % domain length
    x0 = 0 % location of left boundary
    kappa=.1 % diffusion coefficient
    sigma0 = 3.5 %maximum amplification rate (CONTROL PARAMETER)
    sigma2 = 0 % variation of sigma with x
    NL = 2 % order of nonlinearities ; should be 2 or 3
    amp =1e-4 % Initial amplitude
    typecondinit=2; % 1 for single-mode initial condition, 2 for random initial condition.

    % numerical parameters for space discretisation
    N=100; % number of gridpoints
    bctype = 'Dirichlet'; %boundary conditions may be Dirichlet or Neumann
    Tstep = .5;%time between two plots in figure 2
    Tmax = 8 % maximum time for plots


    Study of the linearised system.

    Mathematical analysis of the problem

    The problem has an trivial solution \phi(x,t) = 0. We first consider the linear stability of this solution by investigating the behaviour of small-amplitude perturbations of this solution (i.e. \phi \ll 1). This means that we can drop the nonlinear term and consider the linear problem

    \displaystyle \frac{\partial \phi}{\partial t} = \sigma \phi + \kappa \frac{\partial^2 \phi}{\partial x^2}

    We look for particular solutions in the form of eigenmodes, with the following ansatz \displaystyle \phi(x,t) = \hat{\phi}(x) exp (\lambda t)

    Inserting in the starting equations, we are lead to the eigenvalue problem

    \displaystyle \lambda \hat{\phi} = \sigma(x) \hat{\phi} + \kappa \frac{\partial^2 \hat \phi}{\partial x^2}

    This problem is of Sturm-Liouville type, so it possesses a discrete number of eigenvalues/eigenmodes [\lambda_n, \hat{\phi}_n].

    Numerical resolution of the eigenmode problem

    We will transform the linear problem into a generalized eigenvalue problem into the form

    \displaystyle \lambda E X = A X

    The spatial discretisation is done using the tools provided by the easystab project ( see for instance the programs diffmat.m and diffmat_dif1D as a starting point to understand the way to use this set of programs.)

    Here we use the function dif1D to construct the following objects :

    • The grid x (a column-vector containing the gridpoints x_{1..N}),

    • The first-order and second-order differentiation matrices dx and dxx (square matrices),

    • The “weight” w (a line-vector used to cumpute integrals over the domain ; see integration.m for more details and examples)

    discretization = 'fds'; % fds for simple finite differences ; you may try other cases
    [dx,dxx,wx,x]=dif1D(discretization,x0,L,N);
    Z=zeros(N,N); I=eye(N); II=eye(2*N);


    We now use these “basic bricks” to build the matrices A and E corresponding to the discretized Ginsburg-Landau equation :

    E=I;
    sigma = sigma0-sigma2*x.^2;
    A=kappa*dxx+diag(sigma);

    % then construct boundary conditions
    if(bctype =='Dirichlet')
        E(1,:)=0; E(N,:)=0;
        A(1,:)=I(1,:); A(N,:)=I(N,:);
    elseif(bctype=='Neumann')
        E(1,:)=0; E(N,:)=0;
        A(1,:)=dx(1,:); A(N,:)=dx(N,:);
    end


    We compute the eigenmodes using the function eig. We then sort the modes according to decaying real part of the eigenvalue. With this choice, the first eigenvalue will be the one with the largest real part. We then remove the eigenmodes for which the eigenvalue is larger than 1000. We do this because since we have the matrix E to impose the boundary conditions, the system is algebraic differential system, with the consequence that there will be some unphysical infinite eigenvalues.

    % computing eigenmodes
    [U,S]=eig(A,E);
    s=diag(S);  [t,o]=sort(-real(s));
    s=s(o); U=U(:,o);
    rem=abs(s)>1000; s(rem)=[]; U(:,rem)=[];

    % show the eigenvalues
    figure(1)
    subplot(2,1,1);
    plot(real(s),imag(s),'b.')
    xlim([min(s(5)-1,0),max(1,max(real(s)+1))]);% adjust the range to show the first five
    xlabel('real part');ylabel('imaginary part');title('eigenvalues');
    grid on;

    % show the eigenvectors
    subplot(2,1,2);
    co='rbmck';
    for ind=1:4
    plot(x,real(U(:,ind)),co(ind),x,imag(U(:,ind)),[co(ind) '--']);
    hold on
    end
    xlabel('x');  ylabel('eigenvectors');title('eigenvectors');
    grid on;
    set(gcf,'paperpositionmode','auto');
    print('-dpng','-r80','Eigenmodes.png');

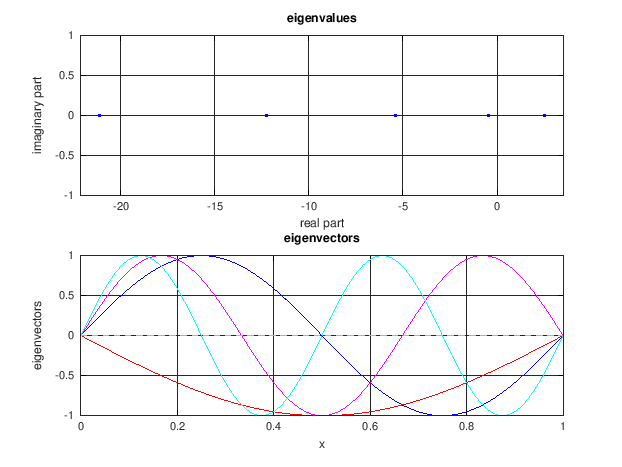

    Figure 1 : The eigenvalues and eigenvectors

    Figure 1 : The eigenvalues and eigenvectors

    Comparison with theoretical results

    Analytical solutions are available for a few particular cases. We discuss only three of them :

    • If the growth rate is uniform and Dirichlet conditions are used at both boundaries (x =0 ; L) Then the eigenvalues/eigenmodes are as follows : \displaystyle [\lambda_n;\hat \phi_n(x)] = [ \sigma_0 - \kappa n^2 \pi^2/L^2 ; \sin (n \pi x / L ) ] \quad (\mathrm{ with } n=1,2,...)

    • If the growth rate is uniform and Neumann conditions are used at both boundaries (x = 0 \pm L) Then the eigenvalues/eigenmodes are as follows : \displaystyle [\lambda_n;\hat \phi_n(x)] = [ \sigma_0 - \kappa n^2\pi^2/L^2 ; \cos ( n \pi x / L ) ] \quad (\mathrm{ with } n=0,1,...)

    • If the domain is infinite ( x \in [-\infty,\infty] and the growth rate is a second-order polynomial (\sigma = \sigma_0 - \sigma_2 x^2 with \sigma_2>0) , then the eigenvalues/eigenmodes are as follows : \displaystyle [\lambda_n;\hat \phi_n(x)] = [ \sigma_0 - (2n+1) \kappa /l_c^2; exp(- x^2/2l_c^2)H_n(x) ] \quad (\mathrm{ with } n=0,1,...) where l_c = (\kappa/\sigma_2)^{1/4} and H_n(x) is the Hermite polynomial of order n (Note that the mathematical analysis of this case is similar to that of the quantum harmonic oscillator equation ; many online resources are available on this problem).

    In this program we compare the numerical results with the theory, restricting to the most-amplified eigenvalue \lambda_1.

    disp('Leading eigenvalue :') ; s(1)

    if(sigma2==0)
        if(bctype =='Dirichlet')
        disp('Theoretical value (bounded, Dirichlet) : ') ; sigma0-kappa*(pi/L)^2
        disp('Threshold : ') ;
        sigmas = kappa*(pi/L)^2
        elseif(bctype =='Neumann')
        disp('Theoretical value (bounded, Neumann : ') ; sigma0
        disp('Threshold : ') ;
        sigmas = 0
        end
    else
        disp('Theoretical value (unbounded, inhogeneous) ') ; sigma0-sqrt(kappa*sigma2)
        disp('Threshold : ') ;
        sigmas = sqrt(kappa*sigma2)
    end


    Linear initial value problem

    We consider an initial condition of amplitude “amp” and structure corresponding either to the leading mode or randomly selected.

    if(typecondinit==1)
            Psi = amp*real(U(:,1));
    elseif(typecondinit==2)
            Psi =amp*rand(1,N); Psi(1)=0;Psi(N)=0;
            Psi = Psi';% must be a column vector
    end


    The general solution of the problem has the following form : \displaystyle \phi(x,t) = \sum_{n=1}^\infty c_n exp(\lambda_n t) \hat \phi_n(x) where the coefficients c_n are obtained by projecting the initial condition upon the corredonding modes :

    \displaystyle c_n = \frac{\int_\Omega \phi(x,0) \hat \phi_n(x) dx}{\int_\Omega \hat \phi_n(x)^2 dx}

    We compute the c_n coefficients for the first four modes, and we plot the amplitudes A_n(t) = c_n exp (\lambda_n t) as function of time.

    for n=1:4
        c(n) = (wx*(Psi.*U(:,n)))/(wx*U(:,n).^2);
    end


    figure(2);subplot(2,1,1);
    plot(x,Psi);hold on; title('Initial condition');xlabel('x');ylabel('\psi(x,0)');
    figure(2);
    subplot(2,1,2);
    ttab = linspace(0,Tmax,100);
    for n=1:4
        semilogy(ttab,abs(c(n)*exp(s(n)*ttab)),[co(n),'--']); hold on;
    end
    ylim([1e-8,1]);
    title('Amplitudes A_n(t) ; linear (dashed curves)');xlabel('t');ylabel('A_n(t)');
    print('-dpng','-r80','Amplitudes_Linear.png');

    pause(5);

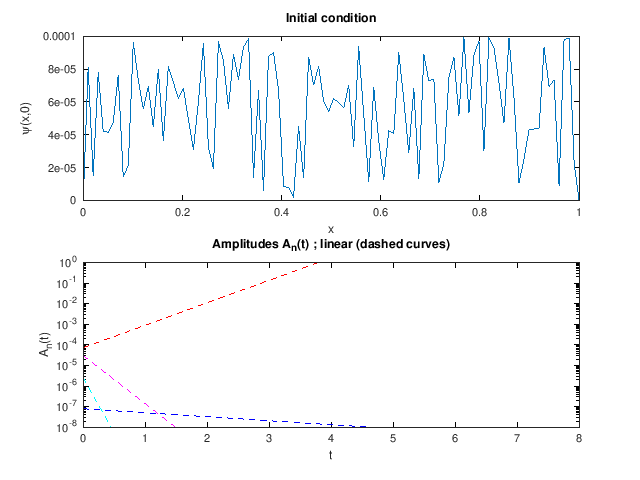

    Figure 2: Initial condition and time-evolution of the amplitudes of the first four modes according to linear theory

    Figure 2: Initial condition and time-evolution of the amplitudes of the first four modes according to linear theory

    Nonlinear dynamics :

    Single-mode approximation

    In the nonlinear range, the solution can still be projected onto the linear eigenmodes, but the time-evolution will not be exponential. So we take the following ansatz :

    \displaystyle \phi(x,t) = \sum_{n=1}^\infty A_n(t) \hat{\phi}_n(x)

    Thanks to the orthogonality property of the eigenmodes, we can obtain amplitude equations for each of the A_n(t) by projecting upon the corresponding mode :

    \displaystyle \frac{d A_n}{dt} = \lambda_n A_n - \frac{\int_\Omega \left(\sum_{m=1}^\infty A_m(t) \hat \phi_m(x) \right)^{N_{nl}} \phi_n(x) dx}{\int_\Omega \phi_n(x)^2 dx}

    We note r = \lambda_1 = \sigma_0 - \sigma_s the “control parameter”, with \sigma_s the linear threshold. If we assume that the leading mode remains dominant (A_1(t) (A_2(t),A_3(t),…) for all times, we can drop the higher modes. The previous equation thus leads to

    \displaystyle \frac{\partial A_1}{\partial t} = r A_1 - \beta A_1^{N_{nl}}

    with \displaystyle \beta = \frac{\int (\hat \phi_1)^{N_{nl}+1} dx}{\int (\hat \phi_1)^2 dx}

    We recognize the classical bifurcation equation, whose solution is the following :

    • For N_{nl}=2 (transcritical bifurcation for r>0)

    \displaystyle A_1(t) = \frac{r/\beta}{1+g_1 exp (-r t)} \quad \mathrm{ with }\, g_1 = \frac{r}{\beta A_{1,0}} - 1

    • For N_{nl} = 3 (supercritical pitchfork bifurcation for r>0) \displaystyle A_1(t) = \frac{\sqrt{r/\beta}}{\sqrt{1+g_1 exp (-2 r t)}} \quad \mathrm{ with } \, g_1 = \frac{r}{\beta A_{1,0}^2} - 1
    r = s(1);
    ttabsinglemode = linspace(0,Tmax,100);
    if(NL==3)
        beta = wx*U(:,1).^4/(wx*U(:,1).^2);
        Ainf = sqrt(r/beta);
        g1 = r/(beta*c(1)^2)-1;
        A1singlemode = sqrt(r/beta)./sqrt(1+g1*exp(-2*r*ttabsinglemode));
    elseif(NL==2)
        beta = wx*U(:,1).^3/(wx*U(:,1).^2);
        Ainf = r/beta;
        g1 = r/(beta*c(1))-1;
        A1singlemode = (r/beta)./(1+g1*exp(-r*ttabsinglemode));
    end

    disp('One-mode approximation predictions :')
    disp(['   Linear amplification rate of dominant mode : ',num2str(r)]);
    disp(['   Nonlinear coefficient beta = ',num2str(beta)]);
    disp(['   Saturation amplitude = ',num2str(Ainf)]);
    disp(['   Time scale to reach saturation : ',num2str(log(abs(Ainf/c(1)))/r)]);
    disp(' ');



    figure(2);subplot(2,1,2);%hold on;
    semilogy(ttabsinglemode,abs(A1singlemode),'k+');hold on;
    ylim([amp^2,5*abs(Ainf)]);
    title('Amplitudes A_n(t) ; linear (dashed), one-mode approximation (symbols)')
    disp('Press Enter to launch time-integration');
    pause(5);


    Nonlinear dynamics : time integration

    In the last part of this program we illustrate qualitatively the effect of nonlinearities by performing time-integration (direct numerical simulation) of the system.

    Since the focus is to illustrate qualitatively the dynamics, we use a very simple integration method, namely forward Euler. This imposes a small time step to ensure the stability of the numerical scheme, namely :

    deltax = L/(N-1);
    dt = deltax.^2/(5*kappa);

    figure(2);subplot(2,1,1);
    title('Solution at several instants')
    figure(2);subplot(2,1,2);
    ylim([amp^2,5*abs(Ainf)]);
    title('Amplitudes A_n(t) ; linear (dashed), one-mode approx. (symbols), numerical solution (full lines)')


    The time-stepping loop is done as follows (and the amplitudes of the first four modes will be stored in the matrix Atab)

    for it = 1:ceil(Tmax/dt);
        Psi = E*Psi+dt*(A*Psi-Psi.^NL);
        Psi(1)=0;Psi(N)=0;
        ttab(it) = it*dt;

        for ind = 1:4
            Atab(ind,it) = wx*(Psi.*U(:,ind))/(wx*U(:,ind).^2);
        end

        if(mod(it,round(Tstep/dt))==0)
            figure(2);subplot(2,1,1);
            plot(x,Psi);
            figure(2); subplot(2,1,2);
            for ind = 1:4
                 semilogy(ttab(1:it),abs(Atab(ind,1:it)),co(ind),'LineWidth',2)
            end
            pause(0.1);%to allow refreshing of figures
        end

    end


    print('-dpng','-r80','Amplitudes_NonLinear.png');
    disp('Program Ginsburg_Landau ended');

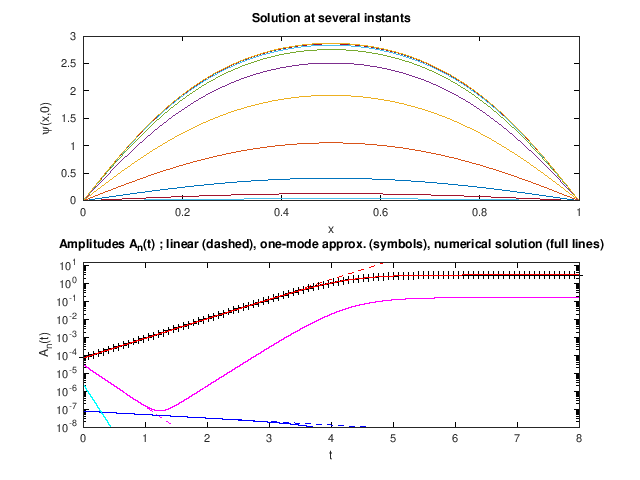

    Figure 3 : Solution \Phi(x,t) at several instants, and time-evolution of the amplitudes of the first four modes

    Figure 3 : Solution \Phi(x,t) at several instants, and time-evolution of the amplitudes of the first four modes

    Exercises/contributions

    • Please play with the parameters and observe the dynamics

    • Please verify the theoretical solutions given above

    • Please do the same for other model 1D equations (swift-Ohenberg for instance)

    NB : other versions of this program, used in 2018 and 2019, are available here: /sandbox/easystab/david/GinsburgLandau_Linear.m and /sandbox/easystab/david/GinsburgLandau_NonLinear_OneMode.m
