Kapitza waves

This examples tests the ability of the multilayer solver and the surface tension additive to reproduce Kapitza waves. The parameters are chosen to reproduce the experiments of Liu and Gollub (1994) and the simulations of Malamataris et al. (2002).

#include "grid/multigrid1D.h"
#include "../hydro.h"
#include "layered/remap.h"
#include "../nh_PhiS.h"
#include "../tension.h"

A flow Q of liquid of viscosity \nu and surface tension \sigma is imposed on the top of an inclined plan, which makes an angle \beta with the horizontal.

Without any perturbation, this problem has a analytical solution, known as the Nusselt film. The film thickness is related to the Reynolds number Re = Q/\nu and is given by: H_{Nusselt} = \left(\frac{3\,\nu^2\,Re}{g\,\sin{\beta}}\right)^{1/3}

The mean Nusselt velocity U verifies Q = UH and is thus: U_{Nusselt} = \frac{g\,\sin{\beta}\,H_{Nusselt}^2}{3\,\nu}

#define beta (6.4*pi/180.)
#define Re 19.33
#define nu0 0.0000063
#define H0 (pow((3.*sq(nu0)*Re)/(9.81*sin(beta)), 1./3.))
#define U0 ((9.81*sin(beta)*sq(H0))/(3.*nu0))

In this simulation, we choose to non-dimesionalise the parameters with the density \rho, the Nusselt height H_{Nusselt} and velocity U_{Nusselt}. We obtain the Froude and Weber numbers: We = \frac{\sigma}{\rho U^2 H} and Fr^2 = \frac{U}{\sqrt{gH}} = \frac{Re}{3} \sin{\beta}

#define Fr2 (Re*sin(beta)/3.)
#define We 5.43
#define T0 (H0/U0)

A periodic perturbation of frequency F is imposed. This leads to non linear instability called Kapitza waves.

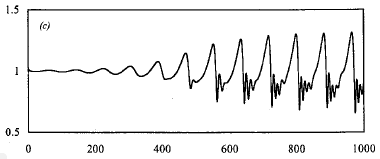

Surface Profil

#define F 3. //dimensionned frequency (Hz)
#define k (2.*pi*F*T0)

#define T_END (0.6/H0)
#define DELTA_T (T_END/500.)

Main function

int main()
{
  corr_dux = true;
  corr_dwx = true;
  horvisco = true;
  L0 = 1./H0;
  N = 1024;
  nl = 50;

  G = cos(beta)/Fr2;
  nu = 1./Re;

  system ("rm -f plot-*.png");
  run();
}

Initialisation

The inflow is a parabolic profile with a total flow rate Q. The function below computes the height zc of the middle of the layer and returns the corresponding velocity. For the multilayer solver, we need some trickery to define the inflow velocity profile as a function of zc. We need to sum the layer thicknesses to get the total depth H and the height zc of the current layer (of index point.l).

double Qparab (Point point)
{
  double H = 0.;
  double zc = 0.;
  for (int l = 0; l < nl; l++) {
    H += h[0,0,l];
    if (l < point.l)
      zc += h[0,0,l];
  }
  zc += (h[]/2.);
  return 3./2.*(2.*(zc/H) - sq(zc/H));
}

event init (i = 0)
{
  foreach() {
    sigma[] = We;
    foreach_layer()
      h[] = 1./nl;
    foreach_layer()
      u.x[] = Qparab (point);
  }

  u.n[left] = Qparab (point);
  eta[left] = dirichlet(1 + 0.01*sin(k*t));

  u.n[right] = neumann(0.);
  eta[right] = dirichlet(1.);
  phi[right] = dirichlet(0.);
  boundary(all);
}

Slope

This imposes a slope without changing the topography.

event source (i++)
{
  double slope = sin(beta);
  foreach()
    foreach_layer()
      u.x[] += (1./Fr2)*slope*dt;
  boundary ((scalar *){u});
}

Outputs

event logfile(t = end) {
  foreach() {
    double H = 0;
    double Q = 0;
    foreach_layer() {
      H += h[];
      Q += h[]*u.x[];
    }
    fprintf (stderr, "%g %d %g %g\n", x, point.l, H, Q);
  }
}

Movie

void setup (FILE * fp)
{
  fprintf (fp,
	   "set pm3d map interpolate 2,2\n"
	   "# jet colormap\n"
	   "set palette defined ( 0 0 0 0.5647, 0.125 0 0.05882 1, 0.25"
	   " 0 0.5647 1, 0.375 0.05882 1 0.9333, 0.5 0.5647 1 0.4392, 0.625"
	   " 1 0.9333 0, 0.75 1 0.4392 0, 0.875 0.9333 0 0, 1 0.498 0 0 )\n"
	   "unset key\n"
	   "set cbrange [0:3]\n"
	   "set xlabel 'x'\n"
	   "set ylabel 'height'\n"
	   "set xrange [%g:%g]\n"
	   "set yrange [0.5:1.5]\n"
     "set lmargin at screen 0.1\n"
     "set rmargin at screen 0.9\n", (X0*H0*1000), (X0 + L0)*H0*1000
	   );
}

void plot (FILE * fp)
{
  fprintf (fp,
	   "set title 't = %.2f'\n"
	   "sp '-' u 1:2:3\n", t*T0);
  foreach (serial) {
    double z = 0;
    fprintf (fp, "%g %g %g\n", x*H0*1000, max(0.5, z), u.x[]);
    foreach_layer() {
      z += h[];
      fprintf (fp, "%g %g %g\n", x*H0*1000, min(max(0.5, z), 1.5), u.x[]);
    }
    fprintf (fp, "\n");
  }
  fprintf (fp, "e\n\n");
  //  fprintf (fp, "pause 1\n");
  fflush (fp);
}

event gnuplot (t += DELTA_T; t <= T_END)
{
  static FILE * fp = popen ("gnuplot 2> /dev/null", "w");
  fprintf (fp,
	   "set term pngcairo font \",10\" size 1024,320\n"
	   "set output 'plot-%04d.png'\n", (int) (t/DELTA_T));
  if (i == 0)
    setup (fp);
  plot (fp);
}

event moviemaker (t = end) {
    system ("for f in plot-*.png; do convert $f ppm:- && rm -f $f; done | "
	    "ppm2mp4 movie.mp4");
}

References

[malamataris2002]	N. A. Malamataris, M. Vlachogiannis, and V. Bontozoglou. Solitary waves on inclined films: Flow structure and binary interactions. Physics of Fluids, 14(3):1082–1094, 2002. [ DOI ]
[liu1994]	Jun Liu and J. P. Gollub. Solitary wave dynamics of film flows. Physics of Fluids, 6(5):1702–1712, 1994. [ DOI ]
