sandbox/bugs/scalar_attribute_mwe.c

Minimum working example with scalar attribute for a scalar

This is not a bug. The associated_field attribute below is never defined i.e. there should be a line somewhere looking like:

f.associated_field = ...
otherwise the value is undefined which explains the strange stuff you see.

I add to the scalar fields a attribute which is a scalar field itself. Although the attribute is not used, it is modified after its initialization. This minimum working example show the different factors I found to have a influence on this strange and unexpected (at least by me) behaviour.

I define some flags. If MAIN is activated, the initialization of the attribute is done in the main() function, where we set usually f.sigma for example. with DEFAULTS, it will be done in the defaults() event, and with MY_INIT, it will be done in the init() event.

With BEFORE, f[] (field to which we add a new attribute) is declared before #include “navier-stokes/centered.h”, if not, it is done after.

With DO_BOUNDARY, we add a free flow boundary on top.

The results are at the end.

#define MAIN 0
#define DEFAULTS 0
#define MY_INIT 1

#define BEFORE 0
#define DO_BOUNDARY 1

#include "fractions.h"

#if BEFORE
attribute {
  scalar associated_field;
}

scalar f[];
#endif

#include "navier-stokes/centered.h"

#if !BEFORE
attribute {
  scalar associated_field;
}

scalar f[];
#endif

#define L 1. // size of the box
#define LEVEL 3 // 7
#define T_END 1. //4
#define DELTA_T (T_END/100.)

int main() {
  size (L);
  origin (0., 0.);
  N = 1 << LEVEL;
  init_grid (N);

  FILE * fpc = fopen ("cells", "w");
  output_cells (fpc);
  fclose (fpc);

If f.associated_field is set in main(), it is erased.

#if MAIN
  scalar field = f.associated_field;
  foreach()
    field[] = 1.;
  boundary({field});
#endif
  FILE * fp = fopen ("0_field_main", "w");
  scalar field1 = f.associated_field;
  foreach()
    fprintf (fp, "%g %g %g\n", x, y, field1[]);
  fclose (fp);

  run();
}

#if DO_BOUNDARY
p[top] = dirichlet(0.);
u.n[top] = neumann(0.);
#endif

event defaults (i = 0) {
#if DEFAULTS
  scalar field = f.associated_field;
  foreach()
    field[] = 1.;
  boundary({field});
#endif
  FILE * fp = fopen ("1_field_defaults", "w");
  scalar field1 = f.associated_field;
  foreach()
    fprintf (fp, "%g %g %g\n", x, y, field1[]);
  fclose (fp);
}

event init (i = 0) {
  fraction (f, x - y);
  boundary({f});

#if MY_INIT
  scalar field = f.associated_field;
  foreach()
    field[] = 1.;
  boundary({field});
#endif
  FILE * fp = fopen ("2_field_init", "w");
  scalar field1 = f.associated_field;
  foreach()
    fprintf (fp, "%g %g %g\n", x, y, field1[]);
  fclose (fp);
}


#if 1
event current_time (i++; i <= 10) {
  fprintf(stderr, "%d\t%g\n", i, t);
  fflush(stderr);
}
#endif

event projection (i = 0) {
  FILE * fp = fopen ("3_field_projection", "w");
  scalar field1 = f.associated_field;
  foreach()
    fprintf (fp, "%g %g %g\n", x, y, field1[]);
  fclose (fp);
}

event adapt (i = 0) {
  FILE * fp = fopen ("4_field_adapt", "w");
  scalar field1 = f.associated_field;
  foreach()
    fprintf (fp, "%g %g %g\n", x, y, field1[]);
  fclose (fp);
}

event this_is_the_end (t = end) {
  FILE * fp = fopen ("5_field_end", "w");
  scalar field1 = f.associated_field;
  foreach()
    fprintf (fp, "%g %g %g\n", x, y, field1[]);
  fclose (fp);
}

Results

f.associated_field is initialized to 1. everywhere, and it should keep this value. It is not the case.

For each situation (different initializations, with BEFORE or not, with free flow condition or not), I look where the the field f.associated_field is modified. The two tables below sum up the results, but I comment them after.

Without free flow boundary condition
main defaults init
before 0 in defaults 0 and 1 after random 0 and 1 ok
after 0 everywhere ok ok
With free flow boundary condition
main defaults init
before 0 in defaults 0 and 1 after random 0 and 1 ok
after 0 everywhere 1 untill projection ~1e-24 after 1 untill projection ~1e-24 after

I really do not understand this bug, nevertheless:

  • if f.associated_field is initialized in main(), it is set to 0. before the defaults() event,
  • if f is declared before the inclusion of “centered.h”, initializing f.associated_field in the init() event seems ok, but we cannot do so if we include “two-phase.h” (which has to be included after “centered.h” and which declares f),
  • I tried to see where in the projection() event f.field_attribute was modified but to do so I needed to access to f.associated_field in projection(), which required to declare f before “centered.h”, and in this case, f.associated_field is not modified anymore during the projection() event…

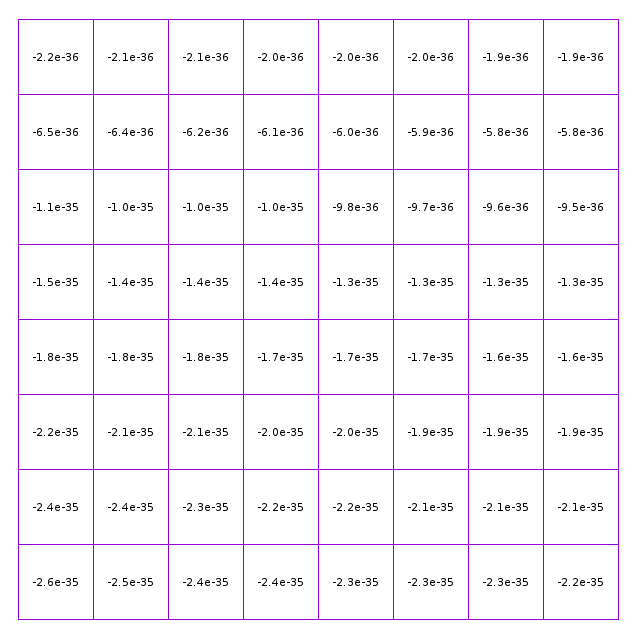

Here is an example of f.associated_field at the beginning of the adapt event, i.e. just after the projection() event.

Associated field at the beginning of the adapt() event

Associated field at the beginning of the adapt() event
