sandbox/acastillo/output_fields/vtu/output_vtu.h

#include "geometry.h"
#include "fractions.h"

#if dimension == 1
coord mycs(Point point, scalar c) {
	coord n = {1.};
	return n;
}
#elif dimension == 2
#include "myc2d.h"
# define mfacets int m = facets(n, alpha, v);
#else // dimension == 3
#include "myc.h"
# define mfacets int m = facets(n, alpha, v, 1.);
#endif

// Macro to simplify facets calculation
#define shortcut_facets                               \
    coord n;                                          \
    n = mycs(point, c);                               \
    double alpha = plane_alpha(c[], n);               \
    coord v[12];                                      \
    mfacets;


// Macro to simplify dealing with slices
#define shortcut_slice(n,_alpha)				        \
  double alpha = (_alpha - n.x*x - n.y*y - n.z*z)/Delta;\
  if (fabs(alpha) > 0.87)                               \
    continue;                                           \

#include "output_vtu_helpers.h"

/*
This function writes one XML VTK file per PID process of type unstructured grid
(*.vtu) which can be read using Paraview. File stores scalar and vector fields
defined at the center points. Results are recorded on binary format. If one
writes one *.vtu file per PID process this function may be combined with
output_pvtu() above to read in parallel. Tested in (quad- and oct-)trees using
MPI. Also works with solids (when not using MPI).

We also write one XML file which allows to read the *.vtu files generated by
output_vtu() when used in MPI. Tested in (quad- and oct-)trees using MPI.
*/

// Main function to output VTU file for the current process
void output_vtu_pid(scalar *list, vector *vlist, char *subname) {

#if defined(_OPENMP)
    int num_omp = omp_get_max_threads();  // Get the number of OpenMP threads
    omp_set_num_threads(1);  // Set the number of OpenMP threads to 1
#endif

    char name[111];  // Buffer for file name construction
    sprintf(name, "%s.vtu", subname);  // Construct the VTU filename

    FILE *fp = fopen(name, "w");  // Open the VTU file for writing
    if (!fp) {
        fprintf(stderr, "Error opening file %s for writing.\n", name);
    }

    // Define a scalar field for periodic conditions
    scalar per_mask[];
    foreach () {
        per_mask[] = 1.;
    }

    // Obtain the number of points, cells, and marker used for connectivity
    vertex scalar marker[];
    long no_points = 0, no_cells = 0;
    foreach_vertex(serial, noauto) {
        #if TREE
        marker[] = _k;
        #else
        # if dimension == 2
        marker[] = (point.i - 2) * ((1 << point.level) + 1) + (point.j - 2);
        # else
        marker[] = (point.i - 2) * sq((1 << point.level) + 1) + (point.j - 2) * ((1 << point.level) + 1) + (point.k - 2);
        # endif
        #endif
        no_points++;  // Increment the number of points
    }

    foreach (serial, noauto) {
        if (per_mask[]) {
            no_cells++;  // Increment the number of cells
        }
    }

    #if dimension == 2
    char type = 9, noffset = 4;
    #elif dimension == 3
    char type = 12, noffset = 8;
    #endif

    // Write the light data of the VTU file with data blocks specified by offset
    long count = 0;
    write_vtu_header(fp, no_points, no_cells);  // Write the VTU file header
    write_scalar_light_data(fp, list, vlist, &count, no_cells);  // Write scalar data arrays
    write_points_light_data(fp, &count, no_points);  // Write points data array
    write_cells_light_data(fp, &count, no_cells, no_cells*noffset);  // Write cells data arrays
    write_vtu_appended(fp);  // Write the VTU appended data section

    // Write the heavy data blocks
    write_scalar_heavy_data(fp, list, per_mask, no_cells);  // Write scalar field data
    write_vector_heavy_data(fp, vlist, per_mask, no_cells);  // Write vector field data
    write_points_heavy_data(fp, no_points);  // Write points data
    write_cell_offsets(fp, no_cells, noffset);  // Write cell offsets
    write_cell_types(fp, no_cells, type);  // Write cell types
    write_cell_connectivity(fp, marker, per_mask, no_cells, noffset);  // Write cell connectivity

    fputs("\t\n", fp);
    fputs("\t</AppendedData>\n", fp);
    fputs("</VTKFile>\n", fp);
    fflush(fp);  // Flush the file buffer
    fclose(fp);  // Close the VTU file

#if defined(_OPENMP)
    omp_set_num_threads(num_omp);  // Restore the original number of OpenMP threads
#endif
}

#if dimension > 2
// Main function to output VTU file for the current process
void output_slice_vtu_pid(scalar *slist, vector *vlist, char *subname, coord n = {0, 0, 1}, double _alpha = 0) {

#if defined(_OPENMP)
    int num_omp = omp_get_max_threads();  // Get the number of OpenMP threads
    omp_set_num_threads(1);  // Set the number of OpenMP threads to 1
#endif

    char name[111];  // Buffer for file name construction
    sprintf(name, "%s.vtu", subname);  // Construct the VTU filename

    FILE *fp = fopen(name, "w");  // Open the VTU file for writing
    if (!fp) {
        fprintf(stderr, "Error opening file %s for writing.\n", name);
    }

    // Define a scalar field for periodic conditions
	scalar per_mask[];
	foreach (){
		per_mask[] = 0.;
		shortcut_slice(n, _alpha);
		if (alpha > 0.){
			#if EMBED
			per_mask[] = cs[];
			#else
			per_mask[] = 1.;
			#endif
		}
	}


    // Obtain the number of points, cells, and marker used for connectivity
	vertex scalar marker[];
	long no_points = 0, no_cells = 0;
	foreach_vertex(serial, noauto){
		marker[] = 0.;
		shortcut_slice(n, _alpha); // if not in the requested plane, we cycle
		marker[] = no_points;
		no_points++;  // Increment the number of points
	}

	foreach (serial, noauto){
		if (per_mask[]){
			no_cells++;  // Increment the number of cells
		}
	}

	// Write the light data. Every time we write someting we increase the counter
	// to track where the data array starts. Cells are defined as VTK_QUAD(=9)
	// defined by 4 points.
	char type = 9, noffset = 4;
	long count = 0;

	write_vtu_header(fp, no_points, no_cells);					 // Write the VTU file header
	write_scalar_light_data(fp, slist, vlist, &count, no_cells); // Write scalar data arrays
	write_points_light_data(fp, &count, no_points);				 // Write points data array
	write_cells_light_data(fp, &count, no_cells, no_cells*noffset);		 // Write cells data arrays
	write_vtu_appended(fp);										 // Write the VTU appended data section

	// Write the heavy data blocks
	write_scalar_heavy_data_slice(fp, slist, per_mask, no_cells, n, _alpha);   // Write scalar field data
	write_vector_heavy_data_slice(fp, vlist, per_mask, no_cells, n, _alpha);   // Write vector field data
	write_points_heavy_data_slice(fp, no_points, n, _alpha);				   // Write points data
	write_cell_offsets(fp, no_cells, noffset);								   // Write cell offsets
	write_cell_types(fp, no_cells, type);									   // Write cell types
	write_cell_connectivity_slice(fp, marker, per_mask, no_cells, noffset, n); // Write cell connectivity

	fputs("\t\n", fp);
	fputs("\t </AppendedData>\n", fp);
	fputs("</VTKFile>\n", fp);
	fflush(fp); // Flush the file buffer
	fclose(fp); // Close the VTU file

#if defined(_OPENMP)
	omp_set_num_threads(num_omp); // Restore the original number of OpenMP threads
#endif
}
#endif

// Main function to output PVTU and VTU files
@if _MPI
void output_pvtu(scalar *list, vector *vlist, char *subname){
    char name[112]; // Buffer for file name construction
    FILE *fp;       // File pointer for file operations

    if (pid() == 0) {
        // Construct the PVTU filename
        sprintf(name, "%s.pvtu", subname);

        // Open the PVTU file for writing
        fp = fopen(name, "w");
        if (!fp)
        { // Check for file opening errors
            fprintf(stderr, "Error opening file %s for writing.\n", name);
            MPI_Abort(MPI_COMM_WORLD, 1); // Abort MPI execution on error
        }

        // Write sections of the PVTU file
        write_pvtu_header(fp);               // Write the header
        write_scalar_light_pdata(fp, list, vlist);  // Write scalar data arrays
        write_points_light_pdata(fp);         // Write points data array
        write_pieces_light_pdata(fp, subname); // Write piece references

        // Close the PVTU file
        fflush(fp); // Flush the file buffer
        fclose(fp); // Close the file
    }
    MPI_Barrier(MPI_COMM_WORLD);
    sprintf(name, "%s_n%3.3d", subname, pid());
    output_vtu_pid(list, vlist, name);
}

#if dimension > 2
void output_slice_pvtu(scalar *list, vector *vlist, char *subname, coord n = {0, 0, 1}, double _alpha = 0){
    char name[112]; // Buffer for file name construction
    FILE *fp;       // File pointer for file operations

    if (pid() == 0) {
        // Construct the PVTU filename
        sprintf(name, "%s.pvtu", subname);

        // Open the PVTU file for writing
        fp = fopen(name, "w");
        if (!fp)
        { // Check for file opening errors
            fprintf(stderr, "Error opening file %s for writing.\n", name);
            MPI_Abort(MPI_COMM_WORLD, 1); // Abort MPI execution on error
        }

        // Write sections of the PVTU file
        write_pvtu_header(fp);               // Write the header
        write_scalar_light_pdata(fp, list, vlist);  // Write scalar data arrays
        write_points_light_pdata(fp);         // Write points data array
        write_pieces_light_pdata(fp, subname); // Write piece references

        // Close the PVTU file
        fflush(fp); // Flush the file buffer
        fclose(fp); // Close the file
    }
	MPI_Barrier(MPI_COMM_WORLD);
	sprintf(name, "%s_n%3.3d", subname, pid());
	output_slice_vtu_pid(list, vlist, name, n, _alpha);
}
#endif
@endif



trace
// Wrapper function to output VTU file depending on MPI usage
void output_vtu ( scalar * list, vector * vlist, char * subname ){
    // Check if MPI is defined
@if _MPI
    // If MPI is defined, call output_pvtu to handle parallel VTU output
    output_pvtu ( list, vlist, subname );
@else
    // If MPI is not defined, call output_vtu_pid to handle serial VTU output
    output_vtu_pid ( list, vlist, subname );
@endif
}

#if dimension > 2
trace
// Wrapper function to output VTU file depending on MPI usage
void output_slice_vtu(scalar *list, vector *vlist, char *subname, coord n = {0, 0, 1}, double _alpha = 0){
    // Check if MPI is defined
@if _MPI
    // If MPI is defined, call output_pvtu to handle parallel VTU output
	output_slice_pvtu ( list, vlist, subname, n, _alpha );
@else
    // If MPI is not defined, call output_vtu_pid to handle serial VTU output
  	output_slice_vtu_pid ( list, vlist, subname, n, _alpha );
@endif
}
#endif




/*
This function writes a surface from field data using the built-in VOF PLIC
surface or the isosurface reconstruction in bview into one XML VTK file of type
unstructured grid (*.vtu) which can be read using Paraview. This extends the
routines in output_surfaces.h by Oystein Lande in two points: one, this
is extended to write a single .vtu file when using MPI; and two, heavy data is
stored in raw binary format.
*/

// Main function to output facets as VTK file
void output_facets_pid(scalar c, scalar kappa, char * subname){

#if defined(_OPENMP)
    // Save current number of OpenMP threads and set it to 1 for this function
    int num_omp = omp_get_max_threads();
    omp_set_num_threads(1);
#endif

    // Construct the filename and open the file for writing
    char name[99];
    sprintf(name, "%s.vtu", subname);
    FILE *fp = fopen(name, "w");

	// Obtain the number of vertices (points) and assets (cells)
	long nverts = 0, nfacets = 0;
    count_vertices_and_facets(c, &nverts, &nfacets);

    // Declare arrays to store vertex coordinates and facet offsets
    double *pt_array_x = malloc(nverts * sizeof(double));
	double *pt_array_y = malloc(nverts * sizeof(double));
	#if dimension <= 2
	double *pt_array_z = NULL;
	#else
	double *pt_array_z = malloc(nverts * sizeof(double));
	#endif
    long *offsets = malloc(nfacets * sizeof(long));

    // Populate the arrays with vertex coordinates and facet offsets
    populate_vertex_and_offset_arrays(c, nverts, nfacets, pt_array_x, pt_array_y, pt_array_z, offsets);

    // Populte the arrays with the curvature kappa
    double *fc_array_kappa = malloc(nfacets * sizeof(double));
    populate_facet_arrays(c, kappa, nverts, nfacets, fc_array_kappa);

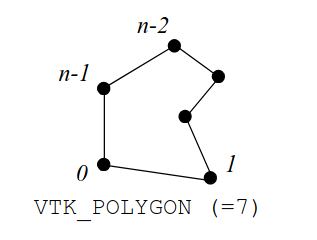

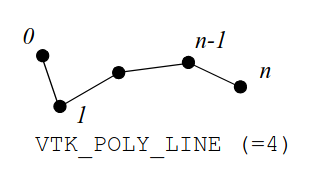

    // Set cell type: VTK_POLY_LINE for 2D, VTK_POLYGON for 3D
	#if dimension <= 2
	char type=4; //VTK_POLY_LINE (=4)
	#else
	char type=7; //VTK_POLYGON (=7)
	#endif

    // Counter to keep track of the byte offsets in the VTK file
	long count = 0.;
	write_vtu_header(fp, nverts, nfacets);  // Write the VTU file header
	write_points_light_data(fp, &count, nverts);  // Write points data array
	write_cells_light_data(fp, &count, nfacets, nverts);  // Write cells data arrays
    write_scalar_light_data(fp, {kappa}, NULL, &count, nfacets); // Write scalar data arrays
    write_vtu_appended(fp);  // Write the VTU appended data section

    // Write the points (vertices) data to the VTK file
    write_points_heavy_data_array(fp, nverts, pt_array_x, pt_array_y, pt_array_z);
	write_cell_offsets2(fp, nfacets, offsets);  // Write cell offsets
    write_cell_types(fp, nfacets, type);  // Write cell types
    write_cell_offsets3(fp, nverts);  // Write cell offsets
    write_scalar_heavy_data_array(fp, nfacets, fc_array_kappa); // Write cell curvature

	fputs ("\t\n", fp);
  	fputs ("\t </AppendedData>\n", fp);
  	fputs ("</VTKFile>\n", fp);

    fflush(fp);  // Flush the file buffer
    fclose(fp);  // Close the VTU file

    // Free allocated memory
	free(offsets);
	free(pt_array_x);
	free(pt_array_y);
#if dimension == 3
	free(pt_array_z);
#endif
    free(fc_array_kappa);

#if defined(_OPENMP)
	omp_set_num_threads(num_omp);
#endif
}


@if _MPI
// Main function to output facets as VTK file if MPI
void output_facets_pvtu (scalar c, scalar kappa, char * subname) {

#if defined(_OPENMP)
    // Save current number of OpenMP threads and set it to 1 for this function
    int num_omp = omp_get_max_threads();
    omp_set_num_threads(1);
#endif

	// Obtain the number of vertices (points) and assets (cells)
	long nverts_long = 0, nfacets_long = 0;
    count_vertices_and_facets(c, &nverts_long, &nfacets_long);
	int nverts = (int)nverts_long, nfacets = (int)nfacets_long;

    // Declare arrays to store vertex coordinates and facet offsets
	double *pt_array_x = malloc(nverts * sizeof(double));
	double *pt_array_y = malloc(nverts * sizeof(double));
	#if dimension <= 2
	double *pt_array_z = NULL;
	#else
	double *pt_array_z = malloc(nverts * sizeof(double));
	#endif
	long *offsets = malloc(nfacets * sizeof(long));

    // Populate the arrays with vertex coordinates and facet offsets
    populate_vertex_and_offset_arrays(c, nverts_long, nfacets_long, pt_array_x, pt_array_y, pt_array_z, offsets);

    // Populte the arrays with the curvature kappa
    double *fc_array_kappa = malloc(nfacets * sizeof(double));
    populate_facet_arrays(c, kappa, nverts, nfacets, fc_array_kappa);

    // Global variables to store the total number of vertices and facets across all processes
    long glob_nverts = 0, glob_nfacets = 0;
    MPI_Allreduce(&nverts_long, &glob_nverts, 1, MPI_LONG, MPI_SUM, MPI_COMM_WORLD);
    MPI_Allreduce(&nfacets_long, &glob_nfacets, 1, MPI_LONG, MPI_SUM, MPI_COMM_WORLD);


    // Arrays to store the number of vertices and facets per process
    int list_nverts[npe()], pos_nverts[npe()];
    int list_nfacets[npe()], pos_nfacets[npe()];


	// Gather the number of vertices and facets from all processes
    MPI_Allgather(&nverts, 1, MPI_INT, list_nverts, 1, MPI_INT, MPI_COMM_WORLD);
    MPI_Allgather(&nfacets, 1, MPI_INT, list_nfacets, 1, MPI_INT, MPI_COMM_WORLD);


    // Calculate the starting positions for vertices and facets for each process
	pos_nverts[0] = 0;
	pos_nfacets[0] = 0;
	for (int i = 1; i < npe(); i++) {
    	pos_nverts[i] = pos_nverts[i-1] + list_nverts[i-1];
    	pos_nfacets[i] = pos_nfacets[i-1] + list_nfacets[i-1];
	}

    // Adjust facet offsets for the current process
	for (int i = 0; i < nfacets; i++)
    	offsets[i] = offsets[i] + pos_nverts[pid()];

    // Pointers for global arrays (only used by the root process)
    long *glob_offsets = NULL;
    double *glob_pt_array_x = NULL;
    double *glob_pt_array_y = NULL;
    double *glob_pt_array_z = NULL;
    double *glob_fc_array_kappa = NULL;

	const int root = 0;
	if (pid() == root) {
		// Allocate memory for global arrays on the root process
		glob_offsets = malloc(glob_nfacets * sizeof(long));
		glob_pt_array_x = malloc(glob_nverts * sizeof(double));
		glob_pt_array_y = malloc(glob_nverts * sizeof(double));
		#if dimension == 3
		glob_pt_array_z = malloc(glob_nverts * sizeof(double));
		#endif
        glob_fc_array_kappa = malloc(glob_nfacets * sizeof(double));
	}

    // Gather vertex and facet data from all processes to the root process
	MPI_Gatherv(offsets, nfacets, MPI_LONG, glob_offsets, list_nfacets, pos_nfacets, MPI_LONG, root, MPI_COMM_WORLD);
	MPI_Gatherv(pt_array_x, nverts, MPI_DOUBLE, glob_pt_array_x, list_nverts, pos_nverts, MPI_DOUBLE, root, MPI_COMM_WORLD);
	MPI_Gatherv(pt_array_y, nverts, MPI_DOUBLE, glob_pt_array_y, list_nverts, pos_nverts, MPI_DOUBLE, root, MPI_COMM_WORLD);
    #if dimension == 3
	MPI_Gatherv(pt_array_z, nverts, MPI_DOUBLE, glob_pt_array_z, list_nverts, pos_nverts, MPI_DOUBLE, root, MPI_COMM_WORLD);
    #endif
    MPI_Gatherv(fc_array_kappa, nfacets, MPI_DOUBLE, glob_fc_array_kappa, list_nfacets, pos_nfacets, MPI_DOUBLE, root, MPI_COMM_WORLD);

    // Free local arrays
	free(offsets);
	free(pt_array_x);
	free(pt_array_y);
#if dimension == 3
	free(pt_array_z);
#endif
    free(fc_array_kappa);

    // Only the root process writes the data to the VTK file
	if (pid() == root) {

		#if dimension <= 2
 		char type=4; //VTK_POLY_LINE (=4)
		#else
 		char type=7; //VTK_POLYGON (=7)
		#endif

	    // Construct the filename and open the file for writing
		char name[99];
		sprintf(name, "%s.vtu", subname);
		FILE * fp = fopen(name, "w");

		// Counter to keep track of the byte offsets in the VTK file
		long count = 0;
		write_vtu_header(fp, glob_nverts, glob_nfacets);  // Write the VTU file header
		write_points_light_data(fp, &count, glob_nverts);  // Write points data array
		write_cells_light_data(fp, &count, glob_nfacets, glob_nverts);  // Write cells data arrays
        write_scalar_light_data(fp, {kappa}, NULL, &count, nfacets); // Write scalar data arrays
		write_vtu_appended(fp);  // Write the VTU appended data section

    	// Write the points (vertices) data to the VTK file
		write_points_heavy_data_array(fp, glob_nverts, glob_pt_array_x, glob_pt_array_y, glob_pt_array_z);
		write_cell_offsets2(fp, glob_nfacets, glob_offsets);  // Write cell offsets
		write_cell_types(fp, glob_nfacets, type);  // Write cell types
    	write_cell_offsets3(fp, glob_nverts);  // Write cell offsets
        write_scalar_heavy_data_array(fp, glob_nfacets, glob_fc_array_kappa); // Write cell curvature

		fputs ("\t\n", fp);
		fputs ("\t </AppendedData>\n", fp);
		fputs ("</VTKFile>\n", fp);
		fflush(fp);  // Flush the file buffer
    	fclose(fp);  // Close the VTU file

    	// Free allocated memory
		free(glob_offsets);
		free(glob_pt_array_x);
		free(glob_pt_array_y);
		#if dimension == 3
		free(glob_pt_array_z);
		#endif
        free(glob_fc_array_kappa);
	}
	#if defined(_OPENMP)
	omp_set_num_threads(num_omp);
	#endif
}
@endif


trace
// Wrapper function to output VTU file depending on MPI usage
void output_facets_vtu (scalar c, scalar s, char * subname){
    // Check if MPI is defined
@if _MPI
    // If MPI is defined, call output_pvtu to handle parallel VTU output
    output_facets_pvtu ( c, s, subname );
@else
    // If MPI is not defined, call output_vtu_pid to handle serial VTU output
    output_facets_pid ( c, s, subname );
@endif
}


#undef shortcut_slice
#undef shortcut_facets
#undef mfacets
