sandbox/acastillo/output_fields/tests_quantities/test_profiles_foreach_region.c

    Testing profile_foreach_region()

    In this example use the sample results from test_init_2Dto3D.c to test the horizontally averaged profiles. An example of the 2D volume fraction field is shown below

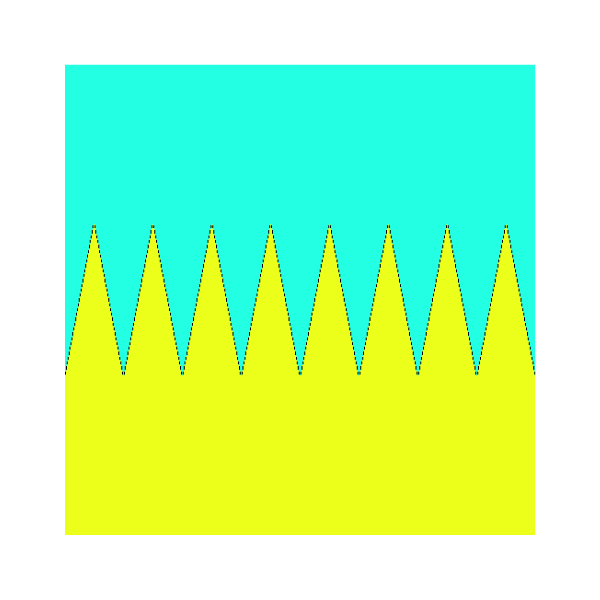

    f

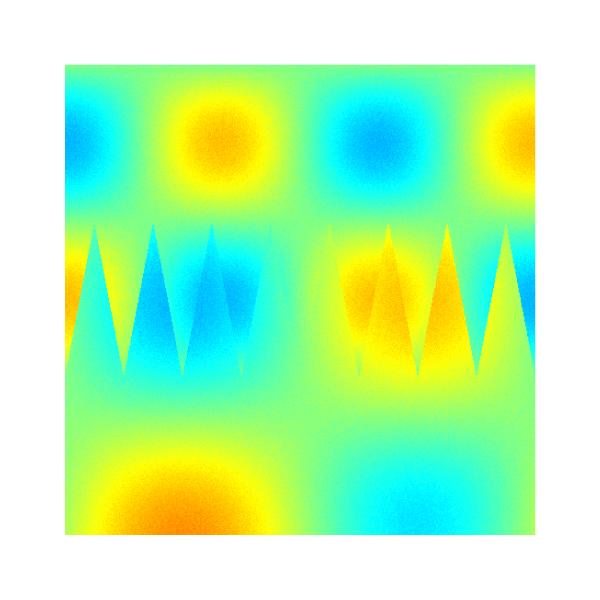

    u

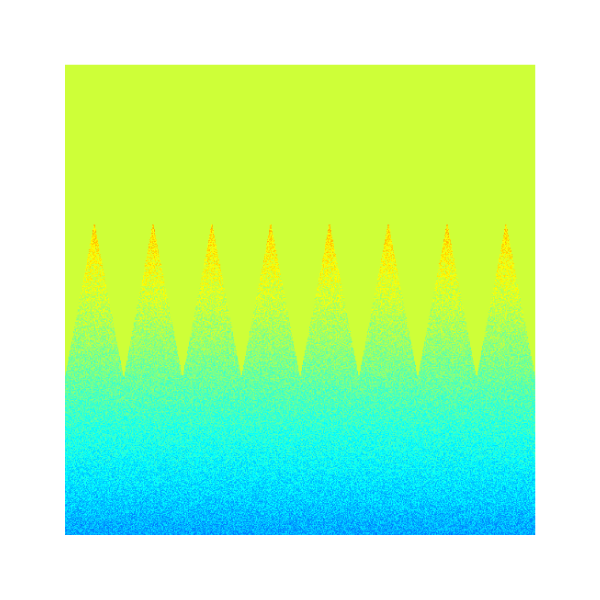

    v

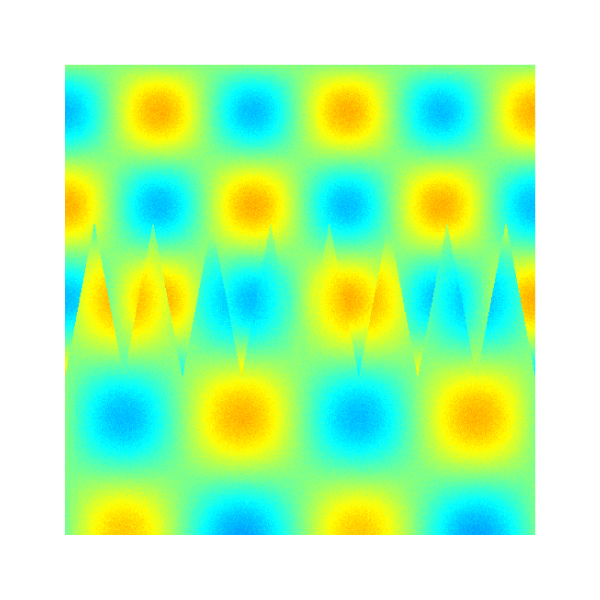

    p
    The corresponding profile is shown below
    set multiplot layout 2,2
set ylabel 'y'
set xlabel 'f'
p "profiles.asc" u 2:1 title "Average", "profiles_favre.asc" u 2:1 title "Weighted Average",
set xlabel 'p'
p "profiles.asc" u 3:1 title "Average", "profiles_favre.asc" u 3:1 title "Weighted Average",
set xlabel 'u'
p "profiles.asc" u 4:1 title "Average", "profiles_favre.asc" u 4:1 title "Weighted Average",
set xlabel 'v'<div class=message id=37><div id=msg_logo><img src=/img/warning.png></div><div id=msg_label> gnuplot: you can't change the output in multiplot mode</div></div>
~~~ {.bash}
p "profiles.asc" u 5:1 title "Average", "profiles_favre.asc" u 5:1 title "Weighted Average",
    Horizontally averaged profiles (script)
    #define MAXLEVEL 9
#define D0 L0
#include "acastillo/output_fields/profiles_foreach_region.h"
#include "view.h"

double rho1 = 3;
double rho2 = 1;

// Function to generate a triangle wave
double triangle_wave(double t, double amplitude, double period) {
  return (4 * amplitude / period) * fabs(t - (period / 2) * floor(2 * t / period + 0.5)) - amplitude/2;
}

int main()
{
  L0 = 1.0;
  X0 = Y0 = Z0 = -L0 / 2;
  N = 1 << MAXLEVEL;
  init_grid(N);

    We load the fields from

      scalar f[], p[];
  vector u[];
  foreach(){
    f[] = (triangle_wave(x,0.33,0.25) > y);
    p[] = (y + 0.1*noise())*f[];
    u.x[] = (  sq(y) + sin(2*pi*x)*cos(2*pi*y) + 0.1*noise())*f[] + (sin(3*pi*x)*cos(3*pi*y) + 0.1*noise())*(1-f[]);
    u.y[] = (cube(y) + sin(4*pi*x)*cos(4*pi*y) + 0.1*noise())*f[] + (sin(5*pi*x)*cos(5*pi*y) + 0.1*noise())*(1-f[]);
  }

    Then, visualize the results just to make sure

      draw_vof("f");
  squares("f", linear = false);
  save ("init_f.png");

  squares("u.x", linear = false);
  save ("init_u.png");

  squares("u.y", linear = false);
  save ("init_v.png");

  squares("p", linear = false);
  save ("init_p.png");

    We define a density

      scalar rho[];
  foreach(){
    rho[] = rho1*f[] + rho2*(1-f[]);
  }

    Then, we extract the profiles with and without weights

      scalar * list = {f, p, u};
  profile_foreach_region(list, filename="profiles.asc", ymin=-D0/2., ymax=D0/2., m2=N/8, mode="w");
  profile_foreach_region(list, rho, filename="profiles_favre.asc", ymin=-D0/2., ymax=D0/2., m2=N/8, mode="w");

}
