Motion of a elliptical vortex ring (using the vortex filament framework)
References

Motion of a elliptical vortex ring (using the vortex filament framework)

In this example, we consider the motion of a elliptical vortex ring of radii R_1 and R_2, and nominal core size a using the vortex filament framework.

The filament approach is perfectly justified as long as the core size remains small compared to other spatial scales (local curvature). We use the same framework as in Durán Venegas & Le Dizès (2019), Castillo-Castellanos, Le Dizès & Durán Venegas (2021), and Castillo-Castellanos & Le Dizès (2019). All the vorticity is considered as being concentrated along space-curves \vec{x}\in\mathcal{C} which move as material lines in the fluid according to: \begin{aligned} \frac{d\vec{x}_c}{dt} = \vec{U}_{ind} + \vec{U}_{\infty} \end{aligned} where \vec{x}_c is the position vector of vortex filament, \vec{U}_{ind} the velocity induced by the vortex filament and \vec{U}_{\infty} an external velocity field. The induced velocity \vec{U}_{ind} is given by the Biot-Savart law.

In this example, we’re going to create a simple solver for the equation above and compute the external field in the Eulerian grid. We’re also going to compare the motion of the ellipical vortex ring to the circular vortex ring. To this end, we’ll use the translational velocity of the circular vortex ring as \vec{U}_{\infty}.

#include "grid/octree.h"
#include "run.h"
#include "view.h"
#include "acastillo/input_fields/filaments.h"
#include "acastillo/input_fields/draw_filaments.h"
#include "acastillo/filaments/biot-savart.h"

In this example, R_1=1.2, R_2=0.8, a=0.05 and the vortex ring is discretized into n_{seg}=64 filaments.

int nseg = 64;
double R1 = 1.20;
double R2 = 0.80;
double a = 0.05;
double dtmax = 0.01;
struct vortex_filament filament1;

coord Uinfty = {0., 0., 0.365405};

The main time loop is defined in run.h.

int minlevel = 4;
int maxlevel = 7;
vector u[];
int main(){
  L0 = 10.0;
  X0 = Y0 = Z0 = -L0 / 2;

  periodic(back);
  periodic(top);
  periodic(right);

  N = 1 << minlevel;
  init_grid(N);
  run();
}

Initial conditions

We consider the space-curve \mathcal{C}_1(\xi,t) is parametrized as function of \phi(\xi,t). At time t=0, \begin{aligned} x_1 &= R_1\cos(\phi), \quad \\ y_1 &= R_2\sin(\phi), \quad \\ z_1 &= z_0 \end{aligned}

import numpy as np
import matplotlib.pyplot as plt

n = 64
ax = plt.figure()
data = np.loadtxt('curve.txt', delimiter=' ', usecols=[0,2,3,4])
plt.plot(data[:n+1,1], data[:n+1,2])

phi = np.linspace(0,2*np.pi)
plt.plot(np.cos(phi), np.sin(phi), '--', color='grey', lw=0.5)

plt.axis('image')
plt.xlabel(r'Coordinate $x$')
plt.ylabel(r'Coordinate $y$')
plt.tight_layout()
plt.savefig('plot_init.svg')

Evolution of the axial coordinate of the filaments (script)

We also set the core size a_{seg} such that the total vorticity is that of a vortex ring of nominal core size a_{ring}, such that each segment has constant volume \begin{aligned} \pi a_{seg}^2 \ell_{seg} = a_{ring}^2 R \frac{2\pi^2}{n_{seg}} \end{aligned} This also means that vortex stretching with modify the local core size.

The curve \mathcal{C}_1(\xi,t) will be stored as struct vortex_filament which must be released at the end of the simulation.

event init (t = 0) {
  double dphi = 2*pi/((double)nseg);
  double phi[nseg];
  double a1[nseg];
  double vol1[nseg];
  coord C1[nseg];

  // Define a curve
  for (int i = 0; i < nseg; i++){
    phi[i] = dphi * (double)i;
    C1[i] = (coord) { R1 * cos(phi[i]), R2 * sin(phi[i]), 0.};
    vol1[i] = pi * sq(a) * ((R1 + R2)/2.) * dphi;
    a1[i] = a;
  }

  // We store the space-curve in a structure
  allocate_vortex_filament_members(&filament1, nseg);
  memcpy(filament1.phi, phi, nseg * sizeof(double));
  memcpy(filament1.C, C1, nseg * sizeof(coord));
  memcpy(filament1.a, a1, nseg * sizeof(double));
  memcpy(filament1.vol, vol1, nseg * sizeof(double));

  local_induced_velocity(&filament1, Gamma=1.0);
  for (int j = 0; j < nseg; j++) {
    filament1.a[j] = sqrt(filament1.vol[j]/(pi*filament1.s[j]));
  }

  view (camera="front", fov=10);
  draw_tube_along_curve(filament1.nseg, filament1.C, filament1.a);
  save ("prescribed_curve.png");

  FILE *fp = fopen("curve.txt", "w");
  fclose(fp);

We also initialize the Cartesian grid close to the vortex filament and initialize the velocity field to zero.

  scalar dmin[];
  for (int i = (maxlevel-minlevel-1); i >= 0; i--){
    foreach(){
      struct vortex_filament params1;
      params1 = filament1;
      params1.pcar = (coord){x,y,z};
      dmin[] = 0;
      dmin[] = (get_min_distance(spatial_period=0, max_distance=4*L0, vortex=&params1) < (i+1)*filament1.a[0])*noise();
    }
    adapt_wavelet ((scalar*){dmin}, (double[]){1e-12}, maxlevel-i, minlevel);
  }
  foreach(){
    foreach_dimension(){
      u.x[] = 0.;
    }
  }
}

We release the vortex filaments at the end of the simulation.

event finalize(t = end){
  free_vortex_filament_members(&filament1);
}

A Simple Time Advancing Scheme

Time integration is done in two steps. First, we evaluate the (self-)induced velocity at \vec{x}_c

event evaluate_velocity (i++) {

  memcpy(filament1.Uprev, filament1.U, nseg * sizeof(coord));

  local_induced_velocity(&filament1, Gamma=1.0);
  for (int j = 0; j < nseg; j++) {
    filament1.Uauto[j] = nonlocal_induced_velocity(filament1.C[j], &filament1, Gamma=1.0);
    foreach_dimension(){
      filament1.U[j].x = filament1.Uauto[j].x + filament1.Ulocal[j].x - Uinfty.x;
    }
  }
}

Then, we advect the filament segments using an explicit Adams-Bashforth scheme

event advance_filaments (i++) {
  for (int j = 0; j < nseg; j++) {
    foreach_dimension(){
      filament1.C[j].x += dt*(3.*filament1.U[j].x - filament1.Uprev[j].x)/2.;
    }
  }
}

Finally, we compute the new arch-lenghts and update the core sizes to preserve the total vorticity

event advance_filaments (i++, last) {
  local_induced_velocity(&filament1, Gamma=1.0);
  for (int j = 0; j < nseg; j++) {
    filament1.a[j] = sqrt(filament1.vol[j]/(pi*filament1.s[j]));
  }
  dt = dtnext (dtmax);
}

Outputs

Displacement of the vortex filament

The elliptical vortex ring is characterized by this flapping motion.

Motion of the elliptical vortex ring

event sequence (t += 0.10){
  view(camera="iso", fov=8);
  draw_tube_along_curve(filament1.nseg, filament1.C, filament1.a);
  save("vortex_ellipse.mp4");
}

The solution outside the vortex tube

Vortex filaments are treated as Lagrangian particles and may exist outside the mesh. We may also evaluate the induced velocity at any point \vec{x}\in\mathbb{R}^3.

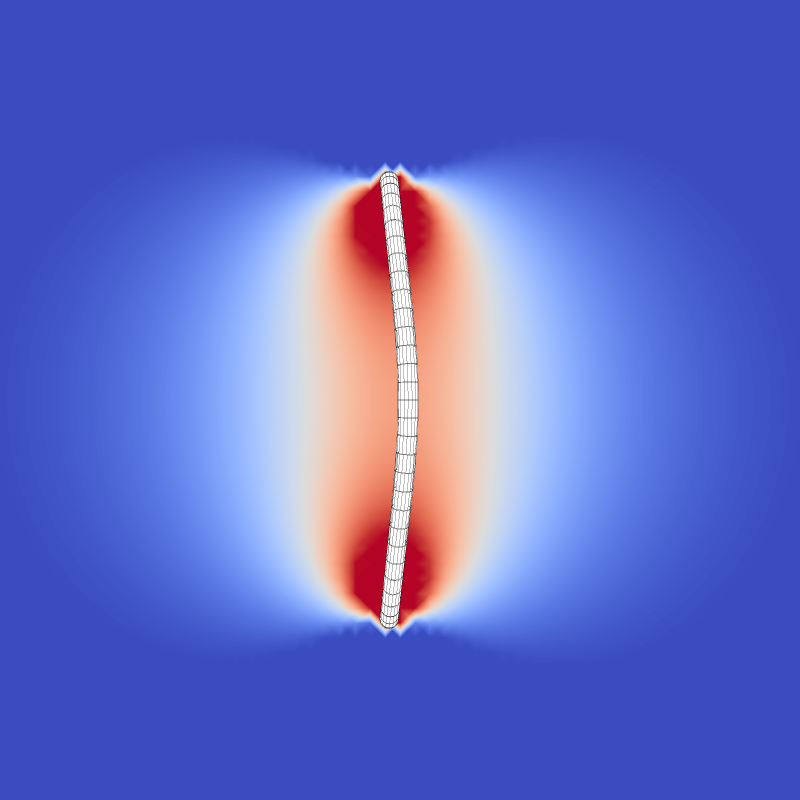

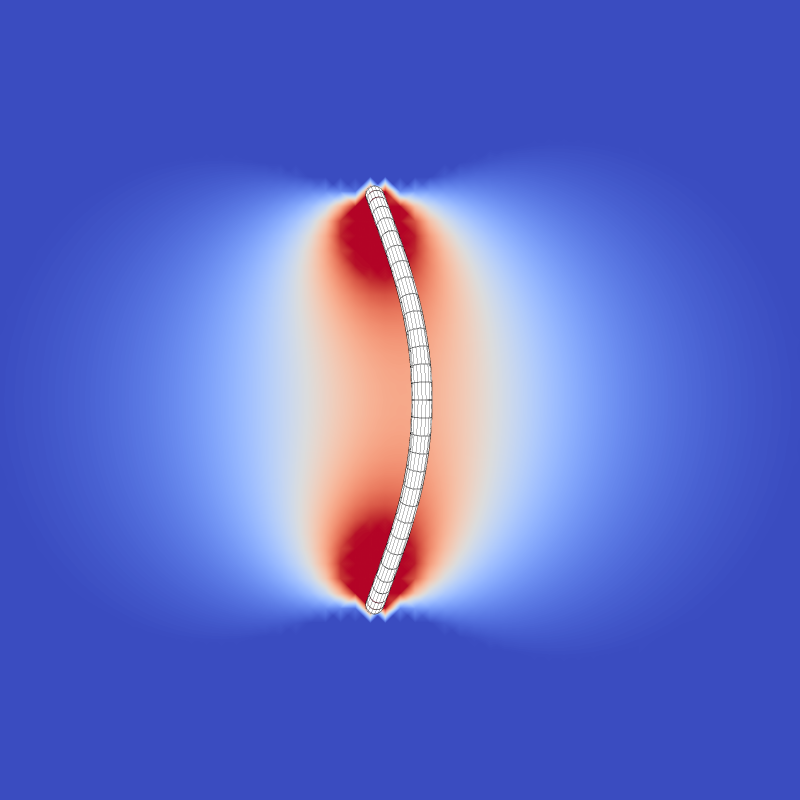

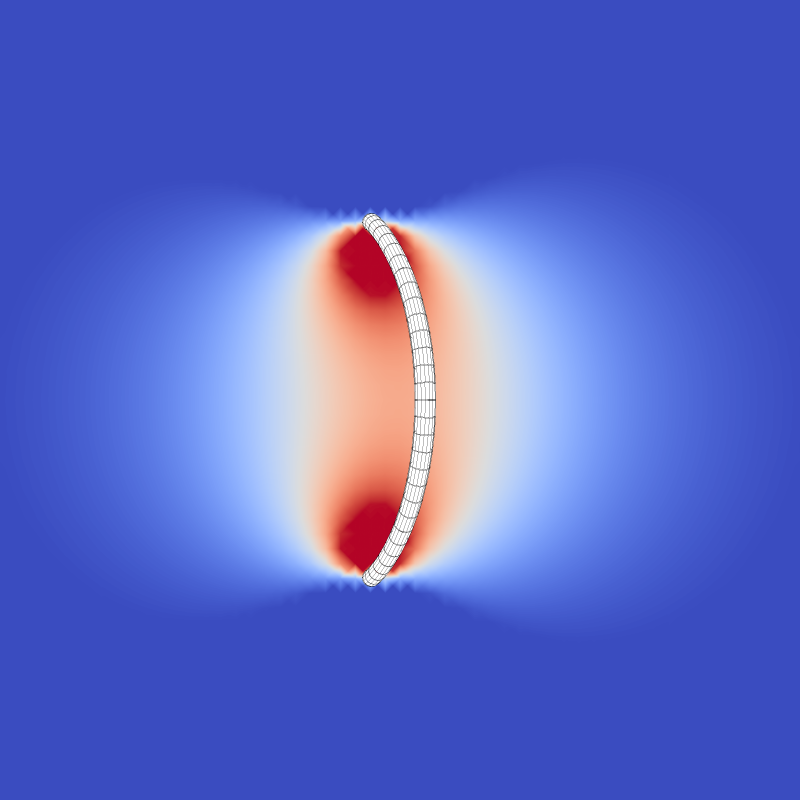

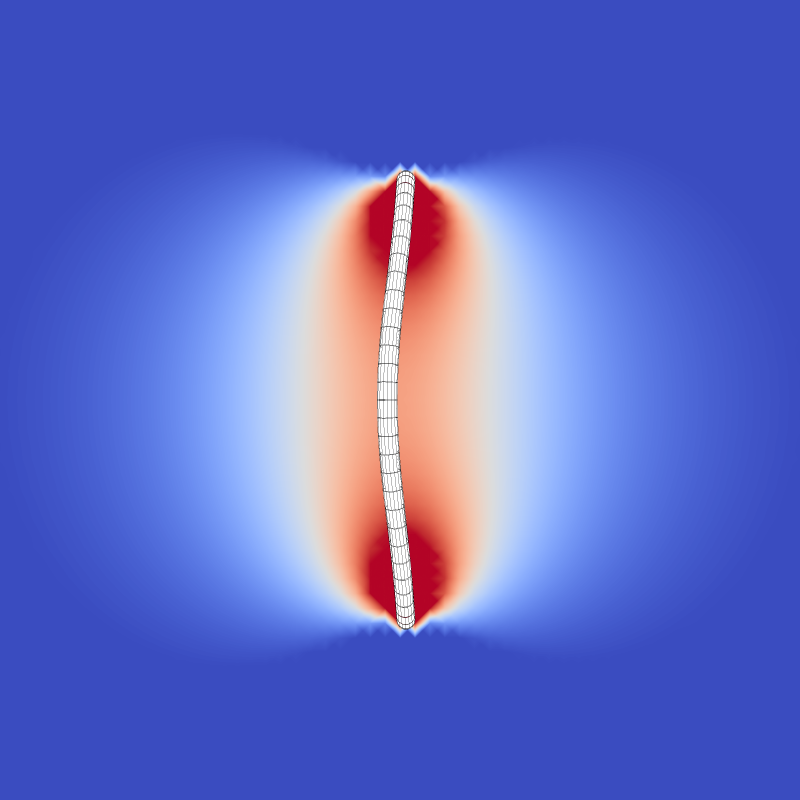

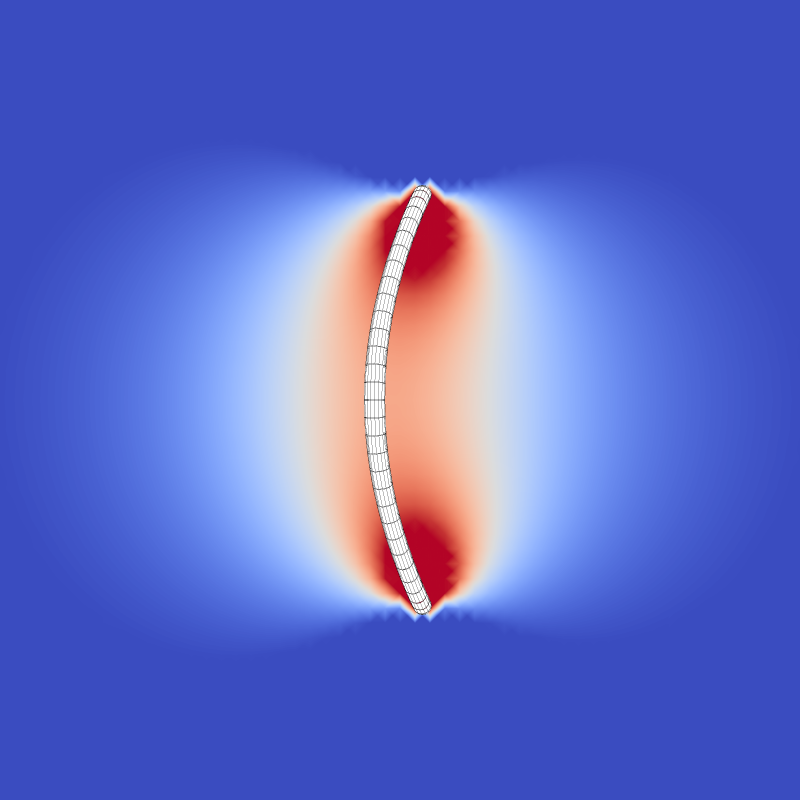

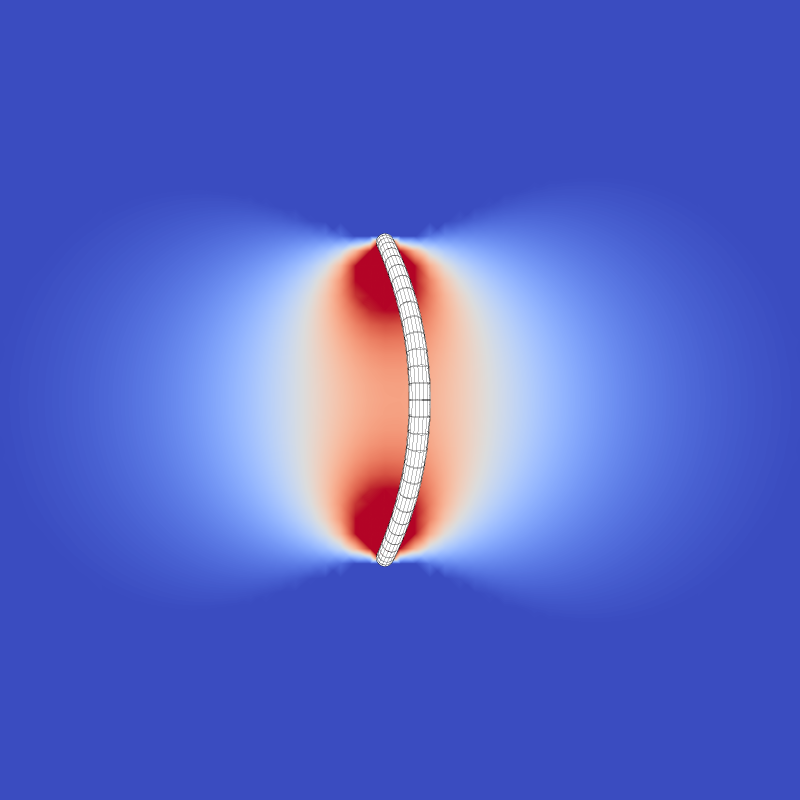

Axial velocity induced at the mid-plane taken at regular intervals

event slice (t += 1.0, t <= 7.0){
  foreach(){
    coord p = {x,y,z};
    coord u_BS = nonlocal_induced_velocity(p, &filament1, Gamma=1.0);
    foreach_dimension(){
      u.x[] = u_BS.x - Uinfty.x;
    }
  }
  adapt_wavelet ((scalar*){u}, (double[]){1e-4, 1e-4, 1e-4}, maxlevel, minlevel);
  {
    char filename2[100];
    sprintf(filename2, "axial_velocity_%g.png", t);

    view(camera="left", fov=8);
    squares ("u.z", linear = true, spread = -1, n={1,0,0}, min=-0.33, max=0.33, map = cool_warm);
    draw_tube_along_curve(filament1.nseg, filament1.C, filament1.a);
    save(filename2);
  }
}

Time evolution

We may also follow the position of \mathcal{C}_1 and the induced velocities over time,

event final (t += 0.2, t <= 30.0){
  if (pid() == 0){
    FILE *fp = fopen("curve.txt", "a");
    write_filament_state(fp, &filament1);
    fclose(fp);
  }
}

Viewed from the top, we can see the elliptical ring seems to be rotating

import numpy as np
import matplotlib.pyplot as plt

n = 64
ax = plt.figure()
data = np.loadtxt('curve.txt', delimiter=' ', usecols=[0,2,3,4])
for i in range(0,24,3):
  plt.plot(data[n*i:n*(i+1),1], data[n*i:n*(i+1),2], label=f'$t={data[n*i,0]:}$')
plt.axis('image')
plt.xlabel(r'Coordinate $x$')
plt.ylabel(r'Coordinate $y$')
plt.legend()
plt.tight_layout()
plt.savefig('plot_xy_vs_t.svg')

Evolution of the x- and y-coordinates (script)

This also seen on the axial coordinate. Additionally, the elliptical ring seems to move slightly slower than the circular ring.

import numpy as np
import matplotlib.pyplot as plt

n = 64
ax = plt.figure()
data = np.loadtxt('curve.txt', delimiter=' ', usecols=[0,4])
plt.plot(data[::n,0], data[::n,1], label='Initially at $\\phi=0$')
plt.plot(data[n//4::n,0], data[n//4::n,1], label='Initially at $\\phi=\\pi/2$')
plt.legend()
plt.xlabel(r'Time $t$')
plt.ylabel(r'Axial coordinate $z$')
plt.xlim([0,30])
plt.tight_layout()
plt.savefig('plot_z_vs_t.svg')
