sandbox/M1EMN/Exemples/cohesive_muI_collapse_NH.c

    collapse of a rectangular cohesive granular column on a slope (Eugène and Eugène)

    We test here the hydro solver with a non newtonian viscosity, it is more or less working, with many points and with small oscillations.

    Problem

    A heap of fluid following cohesive granular (with cohesion) rheology is released along a constant slope.

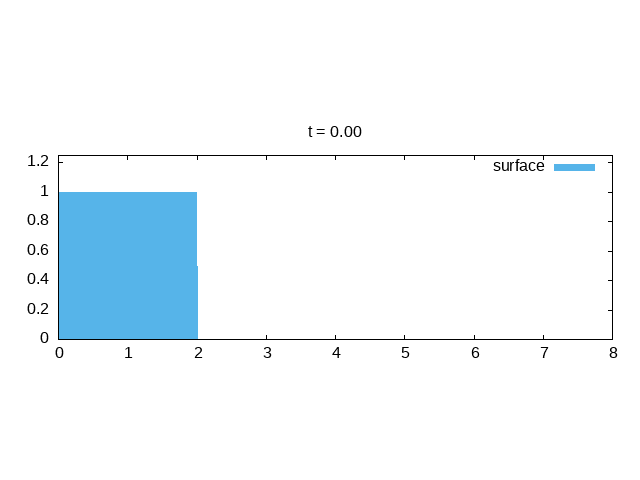

    animation of the collapse

    animation of the collapse

    RNSP model equations

    We solve the boundary layer (RNSP) equations corresponding to a thin layer approximation of the Navier Stokes equations: \displaystyle \left\{ \begin{aligned} \dfrac{\partial u}{\partial x} + \dfrac{\partial v}{\partial y} &= 0 \\ \rho (\dfrac{\partial u}{\partial t} + \dfrac{\partial u^2}{\partial x} + \dfrac{\partial u v}{\partial y} )&= - \rho g Z'_b - \dfrac{\partial p}{\partial x} + \dfrac{\partial \tau_{xy}}{\partial y} \\ 0 &= -\rho g -\dfrac{\partial p}{\partial y}. \end{aligned} \right. following \mu(I) rheology, with I=\dfrac{d}{\sqrt{p/\rho}}\dfrac{\partial u}{\partial y} this gives \tau_{xy}= \tau_Y + (\mu( \dfrac{d}{\sqrt{p/\rho}}\dfrac{\partial u}{\partial y})p), there is cohesion with additional \tau_Y (Yield) to the classical (\mu(I)p).

    We solve this with the hydro solver from Popinet. We tune the solver to consider a non newtonian viscosity function of the shear \displaystyle \nu_{eq}= \frac{(\tau_Y+ \mu(I)p )/\rho}{|\frac{\partial u}{\partial y}|}

    the layered/hydro.h is changed in http://basilisk.fr/sandbox/M1EMN/Exemples/hydroNN.h

    See discussion in http://basilisk.fr/sandbox/M1EMN/Exemples/cohesive_muI_collapseML.c

    The example is linked to the collapse of a viscous fluid (Huppert 82 “The propagation of two-dimensional and axisymmetric viscous gravity currents over a rigid horizontal surface”), here we have a slope. The same RNSP equations are solved with Multilayer shallow water (using the Multilayer Shallow Water (Saint Venant Multi Couches) strategy of Audusse Sainte-Marie et al 2011. See De Vita 2020 for details).

    See discussion in http://basilisk.fr/sandbox/M1EMN/Exemples/cohesive_muI_collapseML.c

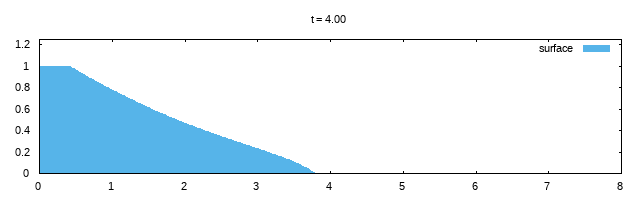

    Snapshot of the heap.

    Snapshot of the heap.

    We compare here with Popinet (2019) both resolutions of RNSP system. The hydrostatic http://basilisk.fr/src/layered/hydro.h it is possible to test the non hydrostatic http://basilisk.fr/src/layered/nh.h. “hydro.h” has been changed in “hydroNN.h” to include variable Non Newtonian viscosity. “difusion.h” has been changed in it and is now “difusionNN.h”.

    animation

    animation

    Code

    #include "grid/multigrid1D.h"
//#include "layered/hydro.h"
#include "hydroNN.h"
//#include "layered/nh.h"

    definition of viscosity as a function of shear:

    double BBingham;

double nu_eq(double shear,double press){
    double nueq,In,muP;
    In = 1./32*sqrt(sq(shear))/sqrt(press);
    muP = (.4 +.3*In/(In+.4)) *  press;
    nueq = ( BBingham +  muP )/sqrt(sq(shear) + sq(.1e-10));
    return nueq;}

    definition of viscosity from the function \tau = \tau_Y+\mu(I)p we define an equivalent viscosity: \displaystyle \nu_{eq}= \frac{\tau}{|\frac{\partial u}{\partial z}|} Note the regularization introduced to avoid division by zero.

    nu=1is here a flag for diffusion.

    double tmax,alpha;

int main() {
    X0 = 0;
    L0 = 8;
    G  = 1.;
    N  = 512;
    nl = 512;
    nu = 1.;
    alpha=0.0;
    tmax = 5.;
    DT = .001;
    BBingham = 0.0 ;
    run();
}

    We impose boundary condition for the positio,n of the surface \eta (as h not defined in ‘hydro.h’, but by construction \eta= z_b+h).

    eta[left] = neumann (0);
eta[right] = neumann (0);

    Initialization

    event init (i = 0) {

    We set a zero velocity at the inlet and a free outlet.

            u.n[left] = neumann(0.);
        u.n[right] = neumann(0.);

    We initialize h.

        foreach() {
        zb[] = -(x)*alpha;
        double h0 = (fabs(x)<2) + 0.0000000001 +  dry;
       foreach_layer()
           h[] = (h0 )/nl;

}
}

    Output

    We use gnuplot to visualise the profile during time in live with X11 or we generate an animation in gif

    animation of the collapse

    animation of the collapse

    void plot_profile (double t, FILE * fp)
{
    fprintf (fp,
             "set title 't = %.2f'\n"
             "p [0:][:1.25]'-' u 1:3:2 w filledcu lc 3 t 'surface','../savagestaron/log' t' Savage Hutter 1 D' w l \n", t);
    foreach()
    fprintf (fp, "%g %g %g\n", x,eta[]-zb[],0.00);
    fprintf (fp, "e\n\n");
    fflush (fp);
}


event profiles (t += .01,t<=tmax) {
    static FILE * fp = popen ("gnuplot --persist 2> /dev/null", "w");
    if(t==0) fprintf (fp,"set term gif animate;set output 'animate.gif';set size ratio .333333\n");
   //  if(t==0) fprintf (fp,"set term x11;set size ratio .333333\n");
    // comment to have direct X11 animation, uncomment to generate the gif
    plot_profile (t, fp);

    if(t==tmax){
        fprintf (fp,"! cp animate.gif ../animate.gif\n");
        fprintf (fp,"! cp animate.gif a2.gif \n");
    }
}

    generate a snapshot

    event gnuplot (t = end) {
    FILE * fp = popen ("gnuplot", "w");
    fprintf (fp,"! cp animate.gif ../animate.gif\n");
    fprintf (fp,"! cp animate.gif a2.gif \n");
    fprintf (fp,
             "set term png enhanced size 640,200 font \",8\"\n"
             "set output 'snapshot.png'\n");
    plot_profile (t, fp);
}

    We print the elevation h=\eta -z_b at last time at t=t_{max}..

    event output (t = {1,2,3,4}) {
    foreach()
    fprintf (stdout, "%g %g %g \n", x, eta[]-zb[],t );
    fprintf (stdout, "\n");
}

    Compilation

    Usual make file

     make cohesive_muI_collapse_NH.tst
 make cohesive_muI_collapse_NH/plots;make cohesive_muI_collapse_NH.c.html


 source ../c2html.sh  cohesive_muI_collapse_NH

    Results

    Comparison with 1D Savage-Hutter (coded in http://basilisk.fr/sandbox/M1EMN/Exemples/savagestaron.c) at ime t=1

     set xlabel "x"
 set ylabel "h(x,t)"
 p [:5][0:1.2]'out' w lp t'NH',\
'../savagestaron/log' w l
    Comparison (script)

    Comparison (script)

    Comparison with 1D Savage-Hutter and with 2D RNSP Multilayer multilayer.h

    set xlabel "x"
set ylabel "h(x,t)"
p[:5][:1.2]'out' w p t'2D NH',\
'../savagestaron/log'   t '1D   ' w l,\
'../cohesive_muI_collapse_ML/shapeML-0.00.txt' t'2D ML' w l
    (script)

    (script)
