sandbox/M1EMN/Exemples/bosse_aval_gray.c
Effondrement d’un tas de sable dans une gouttière
Résolution des équations de Saint Venant 2D avec un frottement de Coulomb, un tas initial disposée sur une pente incurvée en forme de gouttière est relâché au temps t=0, il s’effondre et finit par s’arrêter sur le sol plat.
Grâce à:
#include "saint-venant.h"
on résout le problème de fluide parfait (sans la friction µ qui sera traîtée plus loin)\displaystyle \left\{\begin{array}{l} \frac{\partial }{\partial t} h \; +\; \frac{\partial }{\partial x} Q_x \;+\; \frac{\partial }{\partial y} Q_y=0\\ \frac{\partial }{\partial t} Q_x+ \frac{\partial }{\partial x} \dfrac{Q_x^2}{h}+ \frac{\partial }{\partial y} \dfrac{Q_xQ_y}{h}+ \frac{\partial }{\partial x}g\dfrac{h^2}{2} = - gh \frac{\partial }{\partial x} Z-\mu gh\frac{Q_x}{|Q|}\\ \frac{\partial }{\partial t} Q_y+ \frac{\partial }{\partial x} \dfrac{Q_xQ_y}{h}+ \frac{\partial }{\partial y} \dfrac{Q_y^2}{h}+ \frac{\partial }{\partial y}g\dfrac{h^2}{2} = - gh \frac{\partial }{\partial y} Z-\mu g h \frac{Q_y}{|Q|}\\ \end{array}\right.,
double tmax;
#define MAXLEVEL 7
#define MINLEVEL 4
#define LEVEL 6
Conditions aux limites dirichlet en vitesse
u.n[left] =0;
u.t[left] =0;
u.n[top] =0;
u.t[top] =0;
u.n[right] =0;
u.t[right] =0;
Une gouttière pour la topo zb et un tas de grains h relâchés
event init (i = 0)
{ double wg2=1,Ltas=0.5,pmax=.25,xtas=1;
foreach(){
zb[] = fmin(2,fmax(0,(2+(y*y/2/1.2)*(y*y<wg2)+(y*y>wg2)*wg2/2/1.2 -x*tan(40*pi/180))));
h[]=(sqrt((x-xtas)*(x-xtas)+y*y)<Ltas)? pmax*(1 - sqrt((x-xtas)*(x-xtas)+y*y)/Ltas): 0 ;
}
boundary (all);
}
à chaque pas de temps, on résout le problème de Riemann, puis on met le frottement de Coulomb \displaystyle \frac{\partial u}{\partial t} = - \mu g \frac{u}{|u|}
event friction (i++) {
scalar q[];
foreach() q[]=h[]*sqrt(u.x[]*u.x[]+u.y[]*u.y[]);
foreach()
{ double mu;//,I;
// on peut tester des dépendances de mu en I
// int nbrg=32;
// I=(1./nbrg)*5./2.*q/pow(h+.0000000001,2.5)
// mu = (0.4 + 0.26/(0.4/I +1))
// mu = (0.4 + 0.26*exp(-0.136/I))
mu = .45;
double ff = h[] < dry ? HUGE : (1. + dt*mu*G/(sqrt(u.x[]*u.x[]+u.y[]*u.y[])+.0000000001));
foreach_dimension()
u.x[] /= ff;
}
}
à chaque pas de temps, on adapte
event adapt (i++) {
astats s = adapt_wavelet ({h,zb}, (double[]){1e-3}, MAXLEVEL, MINLEVEL);
fprintf (stderr, "# refined %d cells, coarsened %d cells\n", s.nf, s.nc);
}
Film
event movies (t <= tmax;t+=.01) {
static FILE * fp = popen ("ppm2mpeg > eta.mpg", "w");
scalar m[], etam[];
foreach() {
etam[] = eta[]*(h[] > dry);
m[] = etam[] - zb[];
}
boundary ({m, etam});
output_ppm (h, fp, mask = m, min = 0, max = 0.1, n = 1024, linear = true);}
et sortie directe gnuplot
event splot(t <= tmax;t+=.05) {
double dx=L0/pow(2.,LEVEL),dy=dx;
fprintf (stderr,"--- %lf \n",t);
printf("set hidden3d; unset border ; unset ytics ;unset xtics ; unset ztics;\n");
// printf("set view 30,%lf \n",t/tmax*360);
printf("sp[:][:][0:3] '-' u 1:2:($3+$4-.01) not w l linec -1,''u 1:2:4 not w l linec 2\n");
for(double x=X0; x<X0+L0;x+=dx)
{for(double y=Y0;y<Y0+L0;y+=dy)
{
printf (" %g %g %g %g \n",x,y,interpolate (h, x, y),interpolate (zb, x, y) );}
printf ("\n");
}
printf ("e\n");
}
principal taille du domaine et paramètres
int main() {
L0 = 5.;
X0 = 0;
Y0 = -2.5;
G = 1;
N = 1 << MAXLEVEL;
tmax = 8;
run();
}
Ensuite on compile et on lance:
qcc -fopenmp -g -O2 -DTRASH=1 -Wall bosse_aval_gray.c -o bosse_aval_gray -lm
./bosse_aval_gray | gnuplot
si on veut garder un film
./bosse_aval_gray > v.out
echo "set term gif animate; set output 'bosse.gif'" > dmp
cat v.out >> dmp
mv dmp v.out
cat v.out | gnuplot
gifsicle --colors 256 --optimize --delay 1 --loopcount=0 bosse.gif > bosse_aval_gray.gif
rm bosse.gif
rm v.out

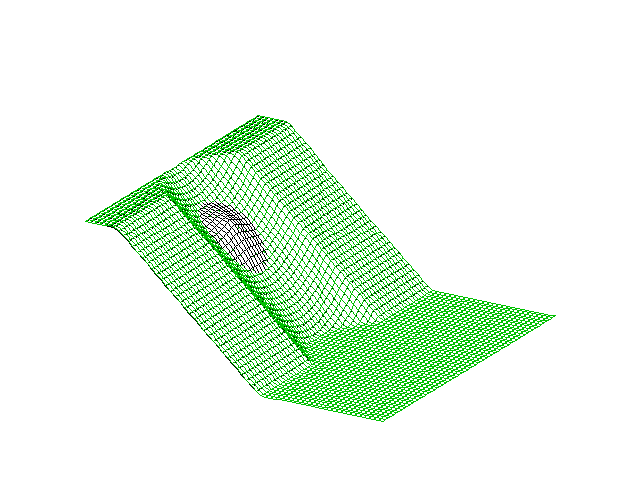

ce qui produit:
Bibliographie
M. WIELAND, J. M. N. T. GRAY AND K. HUTTER Channelized free-surface flow of cohesionless granular avalanches in a chute with shallow lateral curvature J. Fluid Mech. (1999), vol. 392, pp. 73–100.
