sandbox/Antoonvh/turbulencebviewexample.c

    My bview example

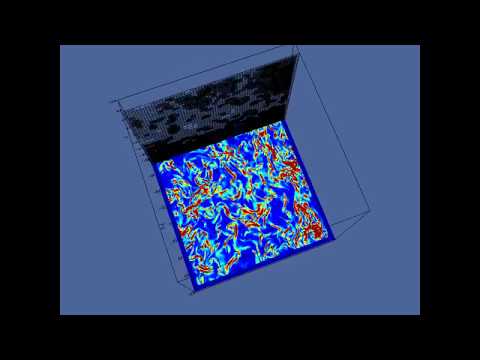

    Click to see the result via youtube:

    Click here to view the movie with youtube

    #include "grid/octree.h"
    #include "utils.h"
    #include "view.h"
    vector u[];
    scalar err[];
    scalar c[];

    int main(){
      restore("dumpiso");
      X0=Y0=Z0=-L0/2.;// The domain in centered around {x,y,z}={0,0,0}, so that the theta and phi angles can be readily used to change the perspective.
      scalar dis[];
      foreach(){
        foreach_dimension()
          dis[]+= dv()*(sq(u.x[1] - u.x[-1]) +
                        sq(u.x[0,1] - u.x[0,-1]) +
    		    sq(u.x[0,0,1] - u.x[0,0,-1]))/sq(2.*Delta);
        if (fabs(x)>120 || fabs(y)>120 || fabs(z)>120)
          dis[]=0.;
      }
      while(adapt_wavelet({dis},(double[]){0.01},8).nc){
        boundary({dis});
      }
      coord d = {0,1,0};
      for (double i=1.;i<=512;i++){
        double p =(i+50)/250;
        double t = 0.5*(sin(i/50));
        view(fov=40,tx=-0.,ty=-0.,theta=t,phi=p,);
        double a = ((int)i % 256) - 128.;
        if (i<=255){
          squares("dis",linear=true,map=gray,min=0,max=0.05,alpha=a);
          cells(d,a);
        }
        if (i>=256){
          squares("dis",min=0,max=0.05,n=d,a);
          cells(alpha=a);
        }
        box();
        static FILE * fp = popen ("ppm2mp4 movie.mp4", "w");
        save (fp = fp);
        clear();
        fprintf(ferr,"frame #%g\n",i); //Track the rendering process in the terminal
      }
    }
