sandbox/Antoonvh/test_prestore.c

    Test for pdump and prestore

    Here we test if particles are dumped and restored correctly with _MPI.

    There will be a four particle lists in this test,

    #include "particle.h"
#include "view.h"
#include "scatter2.h"

Particles zeroth, first, second, third;

    A helper function to view the particle locations and the pid() is defined below.

    void plot (char * fname, Particles * list) {
  foreach_P_in_list (list) {
    translate (z = 0.005)
      scatter (P, pc = {cos(P), sin(P), sin(P*1.4)});
    scatter (P, s = 50,
	     pc = {sin(pid()), cos(pid()), sin(pid()*2.4)});
  }
  translate (z = -0.01)
    cells();
  save (fname);
}

int main() {
  X0 = Y0 = -L0/2;
  init_grid (4);
  refine (x + y < 0 && level < 3);

    For testing purposes, the zeroth list is empty.

      zeroth = new_particles (0);

    The first list contains particles at cell centers.

      int n = 0;
  foreach()
    n++;
  first  = new_particles (n);
  place_in_cells (first);

    The second and third list are 25 and 30 particles in a square and circle, respectively.

      if (pid() == 0) {
    second  = new_particles (25);
    third   = new_particles (30);
    place_in_square (second, (struct Init_P){5});
    place_in_circle (third,  (struct Init_P){30, 0.25, 0.25, L0/8.});
  } else {
    second  = new_particles (0);
    third   = new_particles (0);
  }
  Particles pall[4] = {zeroth, first, second, third};
  foreach_P_in_list (pall)
    particle_boundary (P);
  Particles Plist[3] = {zeroth, first, third};

  plot ("all.png",  pall);
  plot ("Plist.png", Plist);

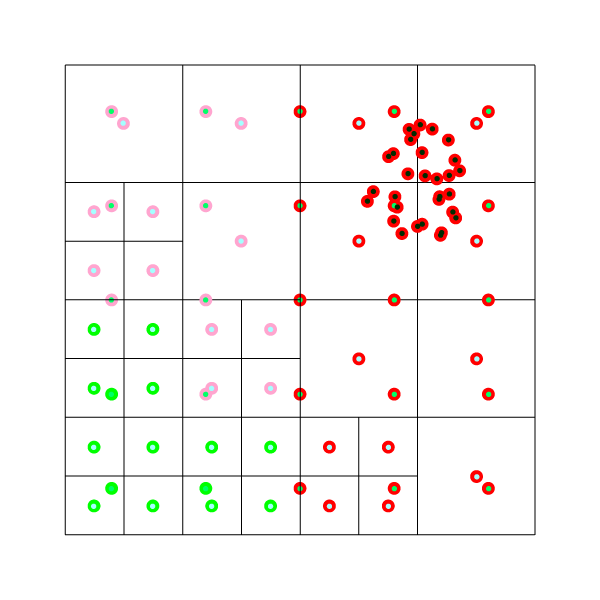

    The particle locations with list center-colour coding and pid() ring colour.

    All particles

    All particles

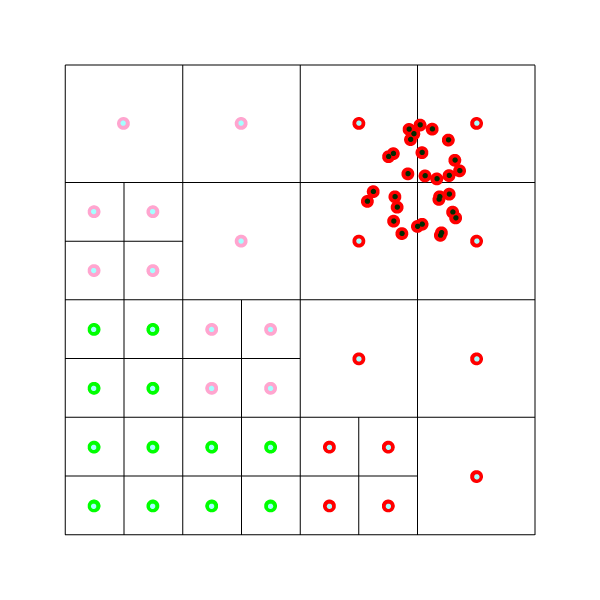

    Particles in Plist

    Particles in Plist

    The particles in the Plist particles lists are dumped.

      pdump ("dumplist", Plist);

    We create a new grid, randomize the old particles.

      init_grid (4);
  refine (x + y > 0 && level < 3);
  foreach_particle()
    foreach_dimension()
      p().x = 0.75*noise();
  plot ("pmess.png", pall);

    Particles are a mess before restoring

    Scrambled particles

    Scrambled particles

    Now some data is restored:

      prestore ("dumplist");

    The Plist may need be redefined for further usage.

      // Plist[0] = zeroth = 0;
  // Plist[1] = first  = 1;
  Plist[2] = third  = 2;
  plot ("restored.png", Plist);

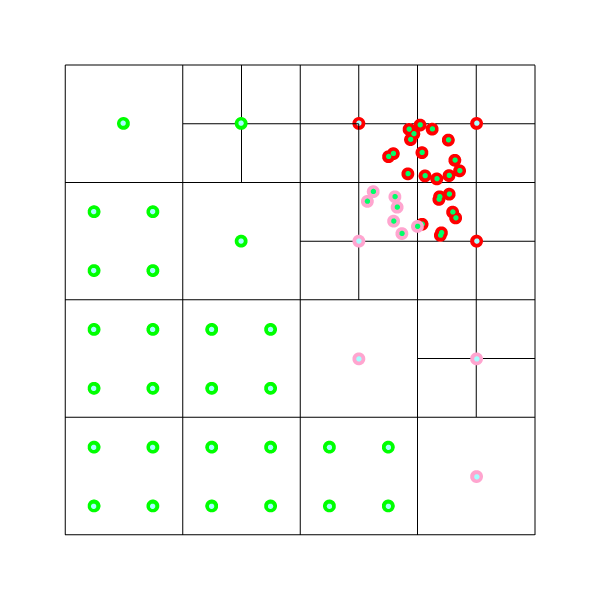

    The result:

    Particles in list

    Particles in list

    Close inspection of the colour codes learns that everything went well!

      free_p ();
}
