sandbox/Antoonvh/reversedp.c
Vof tracer and particle tracers.
The case is based on a test case for the vof
advection. Results are visual:
Particle Legend:
Green: Inside drop
Magenta: Outside drop
Red: On interface
Blue: Unbounded
#include "advection.h" //diffusive tracer field
#include "vof.h" //Interface tracer
#include "view.h"
#include "vof-tracer-particles.h"
#include "scatter2.h"
scalar f[], * interfaces = {f}, *tracers = NULL;
Particles Pin, Pout, Pon, Pun;
double T = 15;
int main () {
L0 = 1;
X0 = Y0 = -L0/2;
DT = 0.1;
N = 64;
run();
}
double R = 0.2, xo = -0.2, yo = -.236338;
#define circle(x,y) (sq(R) - (sq(x - xo) + sq(y - yo)))
event init (t = 0) {
fraction (f, circle(x,y));
Pin = new_vof_tracer_particles (10, 1); // f[] == 1 phase
Pout = new_vof_tracer_particles (10, 0); // f[] == 0 phase
Pon = new_vof_tracer_particles (10, 3); // On the interface
Pun = new_vof_tracer_particles (10, -1); // Unbounded
foreach_particle() {
p().x = xo + R*sin(2.5*(double)j);
p().y = yo + R*cos(2.5*(double)j);
}
}
event velocity (i++) {
vertex scalar psi[];
foreach_vertex()
psi[] = - 1.5*sin(2.*pi*t/T)*sin((x + 0.5)*pi)*sin((y + 0.5)*pi)/pi;
trash ({u});
struct { double x, y; } f = {-1.,1.};
foreach_face()
uf.x[] = f.x*(psi[0,1] - psi[])/Delta;
boundary ((scalar *){uf});
}
event movie (t += 0.1) {
draw_vof("f");
foreach_P_in_list (tracer_particles) {
scatter (P, pc = {sin(P), cos(P), sin(2.4*P)});
}
save ("mov.mp4");
}
event stop (t = T) {
scalar b[];
fraction (b, circle(x,y));
draw_vof("b", lc = {1,0,1}, lw = 2);
draw_vof("f");
translate (z = 0.01) {
foreach_P_in_list (tracer_particles) {
scatter (P, pc = {sin(P), cos(P), sin(2.4*P)});
}
}

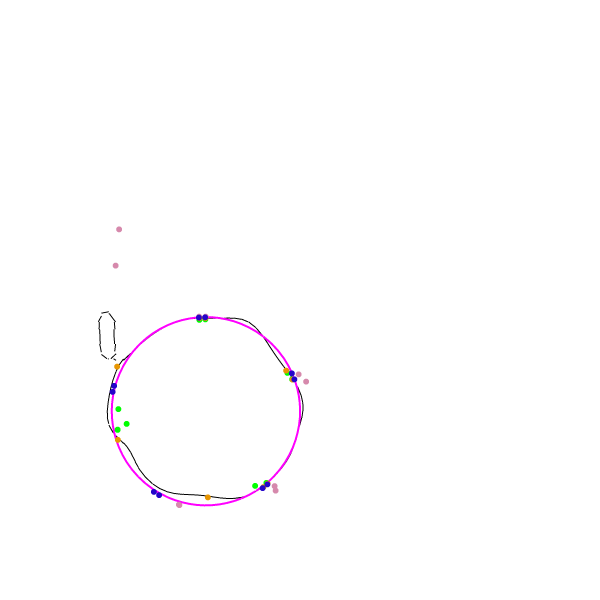

save ("result.png");
system ("ffmpeg -i mov.mp4 mov_1.mp4");
}
