sandbox/Antoonvh/enlarge_example.c

    Horizontal domain extension

    Here we examplify the periodic extension of a solution and grid in the two horizontal directions.

    It may be usefull for adaptive domain sizing.

    #include "grid/octree.h"
    #include "utils.h"
    #include "enlarge_domain.h"
    #include "view.h"

    scalar m[];
    int maxlevel = 6; //Maxlevel for first grid.

    void output_png(char * fname){
      clear();
      view(fov = 40, ty = -0.25, theta = -pi/1.4,
           phi = pi/5., width = 700, height = 600);
      cells(alpha = Z0);
      cells(n = {1,0,0}, alpha = X0 );
      box(lw = 5);
      isosurface("m", 2);
      save(fname);
    }

    int main(){
      periodic(left);
    #if dimension > 2
      periodic(front);
    #endif
      // Original grid and scalar field
      L0 = 2*M_PI;
      X0 = Z0 = -L0/2;
      init_grid( 1 << 3);
      refine(z/10.+sin(x) + 1. > y && level < maxlevel);
      refine(cos(x) + 4. < y && level < maxlevel-1);
      foreach()
        m[] = 0.5*sin(x) + (y) + 0.5*cos(z);
      boundary({m});
      output_png("original.png");
      // 1st Double domain
      enlarge_hor();
      output_png("double.png");
      // Second doubling
      enlarge_hor();
      output_png("quadruple.png");
    }

    It seems to function on a single core:

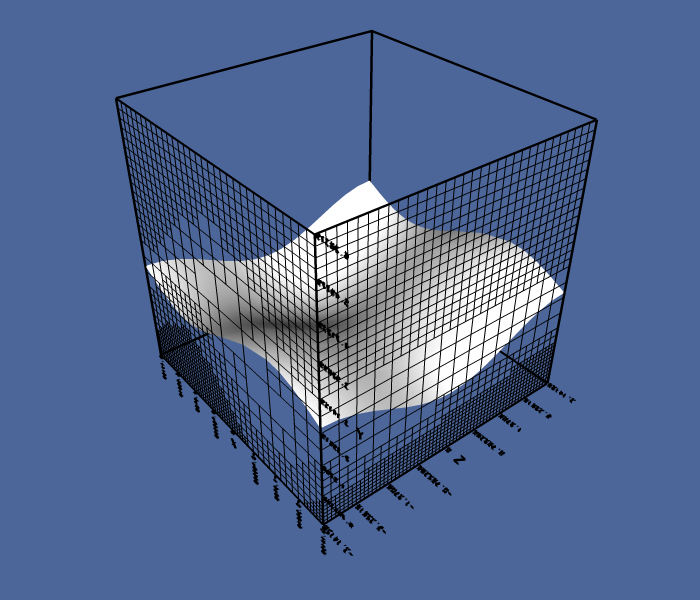

    The original grid and solution

    The original grid and solution

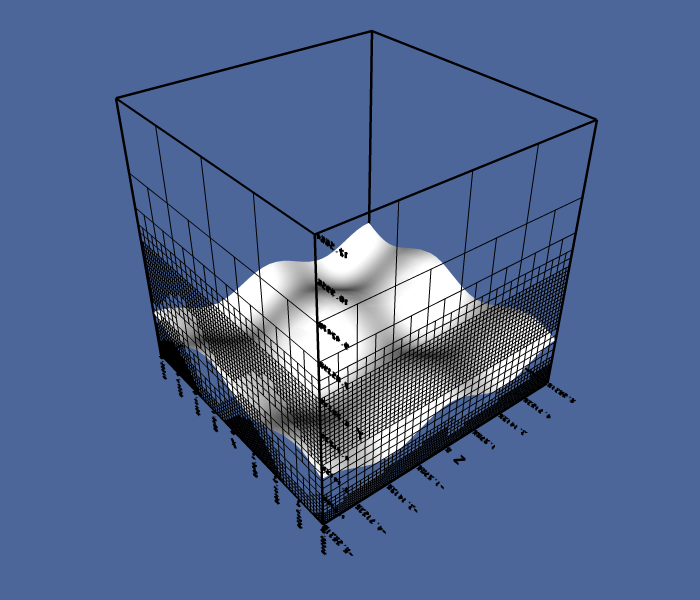

    Horizontally extended solution and grid

    Horizontally extended solution and grid

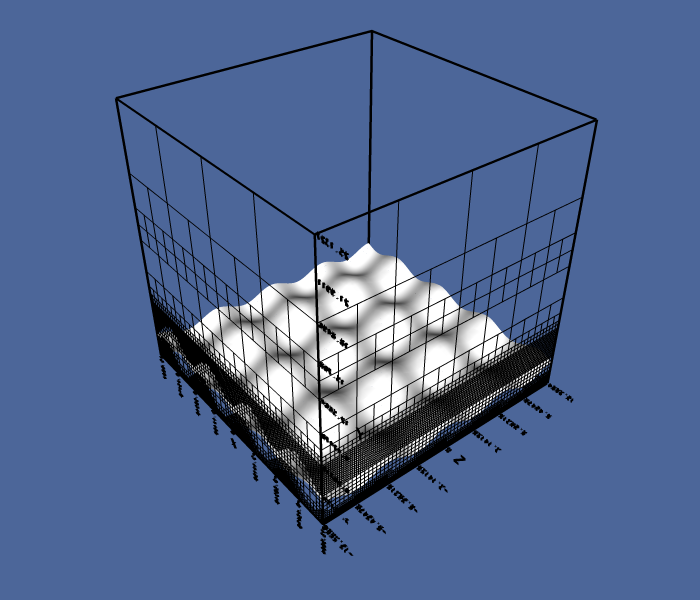

    Solution and grid after two horizontal extensions

    Solution and grid after two horizontal extensions
