sandbox/Antoonvh/doublep.c
Doubly-periodic shear layer instability
The results can be compared against Fig. 7 of Hokpunna and Manhart, 2010.
//#include "grid/multigrid.h" //Todo
#include "nsf4t.h"
#include "view.h"
scalar * tracers = NULL;
double Re = 1e4;
int main() {
foreach_dimension()
periodic (left);
const scalar muz[] = 1./Re;
nu = muz;
N = 256;
run();
}
double sigma = 30, eps = 0.05;
double u_x (double x, double y) {
if (y <= 0.5)
return tanh(sigma*(y - 0.25));
else
return tanh(sigma*(0.75 - y));
}
double u_y (double x, double y) {
return eps*sin(2.*pi*x);
}
event init (t = 0) {
TOLERANCE = 1e-5;
foreach_face()
u.x[] = Gauss6_x(x, y, Delta, u_x);
}
event mov (t += 0.025) {
scalar omg[], omgv[]; //Cell averages and vertex-point vorticity
vorticityf (u, omg);
coord f = {1, -1};
foreach() {
omgv[] = 0;
foreach_dimension()
omgv[] += f.x*(15*(u.y[] - u.y[-1])
- u.y[1] + u.y[-2])/(12.*Delta);
}
view (tx = -0.5, ty = -0.5, samples = 4);
for (double val = -36; val <= 37 ; val += 6.)
isoline("omgv", val, lw = 2);
squares ("omg");
box();
save ("mov.mp4");
}

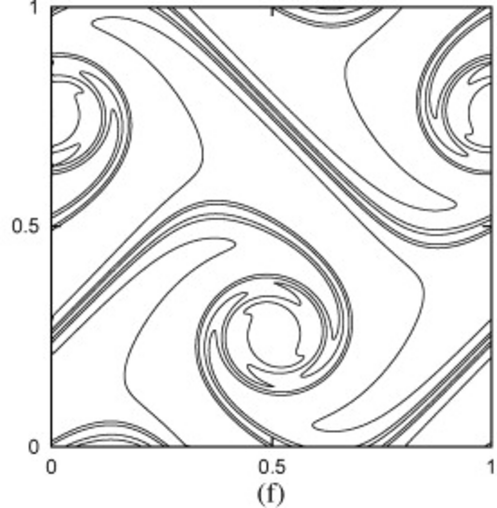

We stop and generate the reference result image from the available image.
event stop (t = 1.2) {
system ("wget https://ars.els-cdn.com/content/image/1-s2.0-S0021999110003141-gr7.jpg && \
convert 1-s2.0-S0021999110003141-gr7.jpg -crop 300x300+280+600 -resize 180% cropped.png");
}
Reference
[hokpunna2010] |
Arpiruk Hokpunna and Michael Manhart. Compact fourth-order finite volume method for numerical solutions of navier–stokes equations on staggered grids. Journal of Computational Physics, 229(20):7545 – 7570, 2010. [ DOI | http ] |
