sandbox/Antoonvh/ABL/tp.c

    Generate periodic Topography

    Perlin’s noise

    are they really periodic?

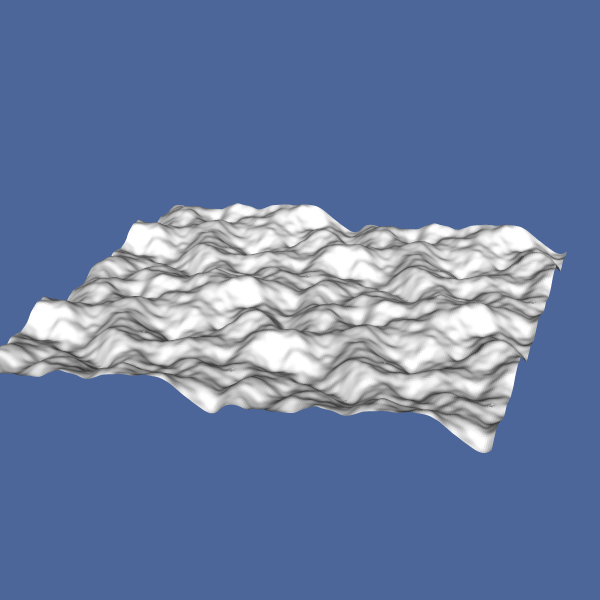

    Yes, there are no issues when the last topography is copied four times.

    Yes, there are no issues when the last topography is copied four times.

    #include "grid/octree.h"
    #include "perlin.h"
    #include "view.h"
    #include "../domain_dohicky.h"

    scalar cs[];
    face vector fs[];
    vertex scalar phi[];

    int main() {
      periodic (left);
      periodic (back);
      L0 = 11;
      X0= Y0 = Z0 = -L0/2;
      init_grid (32);
      refine (fabs(y) < 1 && level < 7);

      view (theta = 0.3, phi = 0.4);
      for (int g = 0; g < 35; g++) {
        srand (g);

        int nx = 5;
        int ny = 3;
        init_perlin (nx, ny);
        foreach_vertex()
          phi[] = y - 2*(perlin (x, z, nx, ny));
        free (gradp);
        nx = 7;
        ny = 7;
        init_perlin (nx, ny);
        foreach_vertex()
          phi[] += 0.75*perlin (x, z, nx, ny);
        free (gradp);
        nx = 17;
        ny = 17;
        init_perlin (nx, ny);
        foreach_vertex()
          phi[] += 0.2*perlin (x, z, nx, ny);
        free (gradp);
        nx = 31;
        ny = 31;
        init_perlin (nx, ny);
        foreach_vertex()
          phi[] += 0.05*perlin (x, z, nx, ny);
        free (gradp);

        scalar h[];
        foreach()
          h[] = y;
        boundary ({phi});
        fractions (phi, cs, fs);
        draw_vof ("cs", "fs", color = "h", min = -1, max = 1);
        save ("h.mp4", opt = "-r 2");
      }
      enlarge_hor({cs}); //Bview could do `translate()`...
      foreach() {
        if (y > Y0 + L0/3)
          cs[] = 1;
      }
      draw_vof ("cs");
      save ("h.png");
    }
