# THE BATTERY PROBLEM

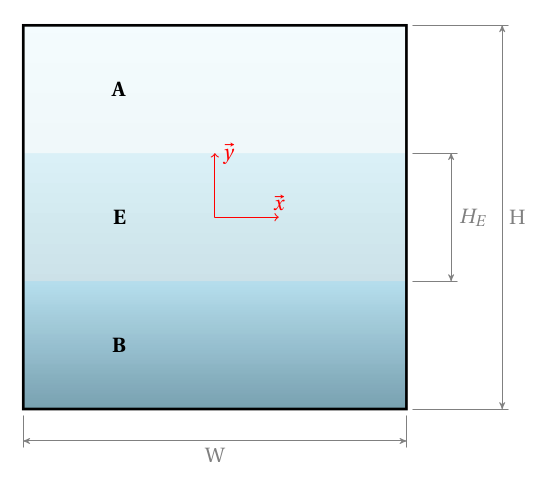

A layer of two (or more) liquids is located between two horizontal parallel planes of extension W in x, where coordinate y is directed upwards.

• Liquid A is located at the top between y=H_E/2 and y=H/2
• Liquid B is located at the bottom between y=-H/2 and y=-H_E/2,
• Liquid E is located at the top of Liquid 1 between y=-H_E/2 and y=H_E/2.

Where the densities of each fluid is such that \rho_B < \rho_E < \rho_A.

Each fluid is characterized by a density \rho, a thermal expansion coefficient \beta, a dynamic viscosity \mu, a thermal conductivity \lambda, and an specific heat capacity C_p.

The top and bottom walls have an imposed temperature T_0, the sidewalls are adiabatic and no-slip conditions are imposed on all boundaries. An electrical current J_0 is imposed on the system, which in turn creates a Joule heating effect due to the electrical ressitivity of the fluids. This heating effect takes the form of an internal heat source per unit of volume, Q_0=J_0^2/\sigma, with \sigma being the electrical conductivity of the fluid. Schematic representation of three layers of fluid contained between parallel planes

## Characteristic Scales

We define \rho_c, \beta_c, \mu_c, \lambda_c, C_{pc}, \alpha_c = \frac{\lambda_c}{\rho_c C_{pc}} and \nu_c = \frac{\mu_c}{\rho_c} as characteristic values for our system, and we take these values from the middle layer which correspond to a molten salt electrolyte (LiCl-KCl).

    #define RHOC (1.63e3)
#define LAMBDAC (0.42)
#define MUC (1.15e-3)
#define BETAC (2.9e-4)
#define CPC (1.21e3)
#define ALPHAC (LAMBDAC/(RHOC*CPC))
#define NUC (MUC/RHOC)
#define Q0C (588235.)
#define G (9.81)

We can write the properties for each fluid as a function of these characteristic values in dimensionless form as : - Density : \tilde{\rho}_0 = \frac{\rho_0}{\rho_c}

    #define RHO0A (0.491e3/RHOC)
#define RHO0B (9.23e3/RHOC)
#define RHO0E (1.63e3/RHOC)
• Coefficient of thermal expansion of the fluid : \tilde{\beta} = \frac{\beta}{\beta_c}
    #define BETAA (1.8e-4/BETAC)
#define BETAB (1.82e-4/BETAC)
#define BETAE (2.9e-4/BETAC)
• Dynamic viscosity : \tilde{\mu} = \frac{\mu}{\mu_c}
    #define MUA (3.5e-4/MUC)
#define MUB (1.29e-3/MUC)
#define MUE (1.15e-3/MUC)
• Thermal Conductivity : \tilde{\lambda}=\frac{\lambda}{\lambda_c}
    #define LAMBDAA (52./LAMBDAC)
#define LAMBDAB (16./LAMBDAC)
#define LAMBDAE (0.42/LAMBDAC)
• Heat Capacity : \tilde{C_p} = \frac{C_p}{C_{p,c}}
    #define CPA (4.24e3/CPC)
#define CPB (0.188e3/CPC)
#define CPE (1.21e3/CPC)
• Thermal diffusivity : \tilde{\alpha} = \tilde{\lambda}/\tilde{\rho(T_0)}\tilde{C_p}
    #define ALPHAA (LAMBDAA/(RHO0A*CPA))
#define ALPHAB (LAMBDAB/(RHO0B*CPB))
#define ALPHAE (LAMBDAE/(RHOE*CPE))
• Internal Heating : \tilde{Q_0} = \frac{Q_0}{Q_c}
    #define Q0A (0./Q0C)
#define Q0B (0./Q0C)
#define Q0E (588235./Q0C)

where values for fluid A correspond to a light metal (Molten Lithium) and values for fluid B to a heavy metalloid (Pb-Li17) at a reference temperature of 723K.

## Dimensionless Parameters

We define a characteristic length, temperature and velocity scales,

• [L] = H
• [\Theta]= Q_0[L]^2/\lambda_c
• [U] = \sqrt{\beta_c g [\Theta][L]}

From these values we define the following dimensionless numbers,

• A Reynolds number, Re_c = [U][L]/\nu_c
• A Prandtl number, Pr_c = \nu_c/\alpha_c = 3.31
• A Rayleigh number, Ra_c = g \beta_c [\Theta][L]^3/{\nu_c \alpha_c} = Pr_c Re_c^2
• A dimensionless volume change, B = \beta_c [\Theta]

There exist a relation between B and Re_c, \displaystyle B = \pi_1 Re_c^{4/5} where \pi_1 is a dimensionless group, \displaystyle \pi_1 (Q_0) \equiv \left[{\frac{\beta^3_c Q^3_0 \nu^4_c}{g^2 \lambda_c^3}}\right]^{1/5} such that we can rewrite the parameter B as a function of \pi_1 and Re_c,

    #define REYNOLDS (5000.)
#define PRANDTL (3.31)
#define PI1 pow(pow(BETAC,3.)*pow(Q0C,3.)*pow(MUC,4.)/pow(RHOC,4.)/pow(G,2.)/pow(LAMBDAC,3.),1./5.)

double Re = REYNOLDS, Pr = PRANDTL, Ra, B;

# System of Equations

The resulting equation system is of the form \displaystyle \nabla \cdot \vec{u} = 0 \displaystyle \partial_t \vec{u} + \nabla \cdot \left(\vec{u} \otimes \vec{u} \right) = \frac{1}{\tilde{\rho}} \left[-\nabla p + \frac{1}{Re_c} \cdot \left( \tilde{\mu} \nabla \vec{u} \right) \right] + \frac{1}{B}\left[\frac{1}{\tilde{\rho}}-1\right] \vec{e}_y \displaystyle \tilde{\rho} \tilde{C_p} \left[ \partial_t T + \nabla \cdot \left( \vec{u} T \right) \right] = \frac{1}{Re_c Pr_c} \left[ \nabla \cdot \left[ \tilde{\lambda} \nabla T \right] + \tilde{Q}_0 \right]

where \tilde{\rho} = \tilde{\rho}_0[1-\tilde{\beta} B T]

For this problem we use a quad-tree grid and the centered Navier-Stokes solver.

    #include "navier-stokes/centered.h"

## Interface between fluids

We use Volume-of-Fluid advection and define the interfaces 12 and 23. We define Z_E as the vertical position of the center of the middle layer, and H_E as its depth.

    #include "vof.h"
scalar f12[], f23[];
scalar * interfaces = {f12,f23};
#define ZE 0.0
#define HE 0.3

The properties of the fluid (\tilde{\rho},\tilde{\beta},...) are evaluated as functions of the volume fraction of each fluid.

\displaystyle \tilde{\rho} = (1-f_{12})(1-f_{23})\tilde{\rho}_B + f_{12}~(1-f_{23})~\tilde{\rho}_E + f_{12}~f_{23}~\tilde{\rho}_A \displaystyle \tilde{\beta} = (1-f_{12})(1-f_{23})\tilde{\beta}_B + f_{12}~(1-f_{23})~\tilde{\rho}_E + f_{12}~f_{23}~\tilde{\beta}_A \displaystyle \vdots

    #define FLUID(f12,f23,x1,x2,x3) (((1-(f12))*(1-(f23))*x1) + ((f12)*(1-f23)*x2) + ((f12)*(f23)*x3))
#define RHO(RHO0,BETA,T) (RHO0*(1-BETA*B*(T)))
#define RHOTILDE(f12,f23,T) 	FLUID(f12,f23,RHO(RHO0B,BETAB,T),RHO(RHO0E,BETAE,T),RHO(RHO0A,BETAA,T))
#define BETATILDE(f12,f23) 	FLUID(f12,f23,BETAB,BETAE,BETAA)
#define MUTILDE(f12,f23) 	FLUID(f12,f23,MUB,MUE,MUA)
#define LAMBDATILDE(f12,f23) 	FLUID(f12,f23,LAMBDAB,LAMBDAE,LAMBDAA)
#define CPTILDE(f12,f23) 	FLUID(f12,f23,CPB,CPE,CPA)
#define Q0TILDE(f12,f23) 	FLUID(f12,f23,Q0B,Q0E,Q0A)

# Solution Approach

We need to solve an advection–diffusion equation for the temperature. We use the corresponding predefined solvers.

    #include "tracer.h"
#include "diffusion.h"

We define a scalar field for the temperature. The temperature is the only scalar field transported by the flow i.e. it is the only field in the list of tracers required by tracer.h.

    scalar T[];
scalar * tracers = {T};

We set the total length of the simulation.

    double EndTime = 3.;

and store the statistics on the Poisson solver for the diffusion step in mgT.

    mgstats mgT;

## Boundary Conditions

We impose no-slip boundary conditions on all the walls, and impose a temperature zero top and bottom plates. Side-walls are considered to be periodic.

    T[top] 	    = dirichlet(0.);
u.t[top]    = dirichlet(0.);
u.n[top]    = dirichlet(0.);

T[bottom]   = dirichlet(0.);
u.t[bottom] = dirichlet(0.);
u.n[bottom] = dirichlet(0.);

u.t[left]   = periodic();
u.n[left]   = periodic();
T[left] = periodic();

## Base state and initial conditions

The base state of the system is in a configuration with zero velocity and a temperature profile that satisfies the following relation \displaystyle \frac{d}{dz}\left[\lambda(z) \frac{dT}{dz} \right] = -S_q(z), \quad \quad T(\pm H/2) = T_0 \quad \quad \mbox{ for } t=t_0 which takes the form of a piecewise function.

And the initial condition correspond to the base state plus an initial perturbation.

    #define R1  (1./LAMBDAB)
#define R2  (1./LAMBDAE)
#define R3  (1./LAMBDAA)
#define C0  (Q0E*HE*(HE*(R2-R3) + R3)/(HE*(2*R2 - R1 - R3) + (R1+R3)))
#define ZMAX = C0/Q0E - HE/2.;

#define DELTA1 (R1*C0*(1.-HE)/2.)
#define DELTA2 (R2*(C0*HE - Q0E*pow(HE,2.)/2.))
#define DELTA3 (R3*(C0 - HE*Q0E)*(1.-HE)/2.)
#define FDELTA(x) (pow(x,2.) + (x)*HE)

#define SOLUTION1(y) (C0*R1*(y+1./2.))
#define SOLUTION2(y) (DELTA1 + C0*(y+HE/2.)*R2 - Q0E/2.*R2*(FDELTA(y) FDELTA(-HE/2.)))
#define SOLUTION3(y) (-DELTA3+(C0-HE*Q0E)*(y -HE/2.)*R3)

event init (t = 0)
{
scalar phi12[];
foreach_vertex()
phi12[] = 0.00*cos(2.*pi*x) + y - (ZE-HE/2.);
fractions (phi12, f12);

scalar phi23[];
foreach_vertex()
phi23[] = 0.00*cos(2.*pi*x) + y - (ZE+HE/2.);
fractions (phi23, f23);

foreach(){
T[] = FLUID(f12[],f23[],SOLUTION1(y),SOLUTION2(y),SOLUTION3(y)) + (6e-5)*noise();
u.x[] = (6e-5)*noise();
u.y[] = (6e-5)*noise();
}
boundary ({T,u});

mu = new face vector;
alpha = new face vector;
a = new face vector;

}

## Update fluid properties

Fluid properties are going to depend on the volume fraction for each fluid and on the temperature field.

    scalar alphac[];
event properties (i++) {

face vector muv = mu;
face vector alphav = alpha;

foreach_face() {
double f12m = (f12[] + f12[-1,0])/2.;
double f23m = (f23[] + f23[-1,0])/2.;
double Tm = (T[] + T[-1,0])/2.;
alphav.x[] = 1./RHOTILDE(f12m,f23m,Tm);
muv.x[] = (1./sqrt(Re))*MUTILDE(f12m,f23m);
}

foreach()
alphac[] = 1./RHOTILDE(f12[],f23[],T[]);
}

## Buoyancy Force

The buoyancy force is added trough the acceleration term a, which depends on the temperature field T. Hence, we solve the equation for the temperature fields, and then we add the corresponding forcing term.

    event tracer_diffusion (i++) {
face vector D[];
foreach_face(){
double f12m = (f12[] + f12[-1,0])/2.;
double f23m = (f23[] + f23[-1,0])/2.;
D.x[] = LAMBDATILDE(f12m,f23m);
}

scalar r[];
foreach()
r[] = Q0TILDE(f12[],f23[]);

scalar beta[];
foreach()
beta[] = 0.;

scalar g[];
foreach()
g[] = Re*Pr*CPTILDE(f12[],f23[])/alphac[];

mgT = diffusion (T, dt, D, r, beta, g);
}

event acceleration (i++) {
face vector av = a;
foreach_face(y)
av.y[]  = 1./B*(alpha.y[]-1.);
}

#define MINLEVEL 8
#define MAXLEVEL 10
#if TREE
refine (level < MINLEVEL);
}
#endif

# Simulation Parameters

Finally we do consecutive runs by changing the Re_c, Pr_c and B, and then calling the run() method of the Navier–Stokes solver. We set the size of the domain L0 and select an initial and maximum time-steps, the CFL criteria, and the grid size

    int main() {
L0 = 1.;
X0 = Y0 = -0.5;
DT = 0.01;
TOLERANCE = 1e-6;

Re = REYNOLDS ; Ra = Pr*pow(Re,2.); B = PI1*pow(Re,4./5.); N=1<<MINLEVEL;
run();
}

## Outputs

    event logfile (i++)
{
fprintf (stderr, "%d %g %g %d %d %d \n", i, t, dt, mgT.i,mgp.i,mgu.i);
}

#include "output_fields/output_vtu_foreach.h"
void backup_fields (scalar T, vector u, int nf)
{
char name;
FILE * fp ;

scalar lvl[];
foreach()
lvl[] = level;

nf > 0 ? sprintf(name, "battery_%6.6d_n%3.3d.vtu", nf,pid()) : sprintf(name, "battery_n%3.3d.vtu",pid());
fp = fopen(name, "w");
output_vtu_bin_foreach ((scalar *) {T, lvl, f12,f23}, (vector *) {u}, N, fp, false);
fclose (fp);
}

event logfile (t = EndTime) {
backup_fields(T,u,0);
}

event export (t += 1.0 ; t <=EndTime)
{
static int nf = 0;
backup_fields(T,u,nf);
nf++
}

We record the Nusselt number and kinetic energy and enstropy every X time units.

    event time_series (t += 0.05; t <= EndTime)
{
char cmd;
FILE * fp;
sprintf(cmd, "battery_%g_%g_%g_%g_%i.asc", Re,Pr,Ra,B,N);
fp = i > 0 ? fopen(cmd, "a") : fopen(cmd, "w");

double ekin_a=0., ekin_e=0., ekin_b=0. ;
foreach(reduction(+:ekin_a),reduction(+:ekin_e),reduction(+:ekin_b))
foreach_dimension()
{
ekin_a += f23[]*sq(u.x[]);
ekin_e += f12[]*(1-f23[])*sq(u.x[]);
ekin_b += (1-f12[])*(1-f23[])*sq(u.x[]);
}

fprintf (fp, "%g %g %g %g \n", t, ekin_a, ekin_b, ekin_e);
fprintf (stderr, "%g %g %g %g \n", t, ekin_a, ekin_b, ekin_e);

fclose (fp);

}
